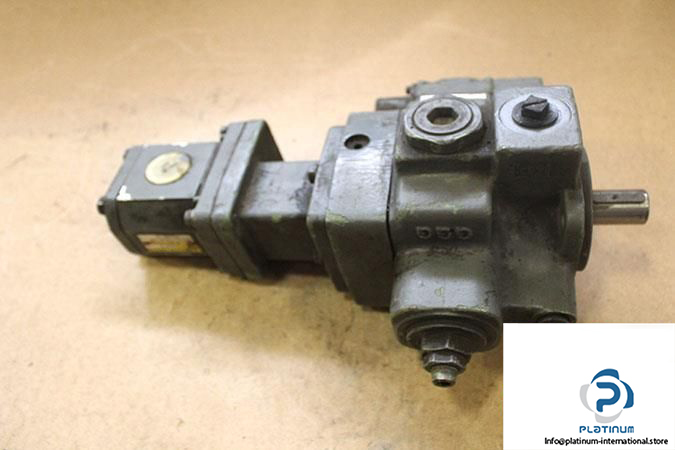

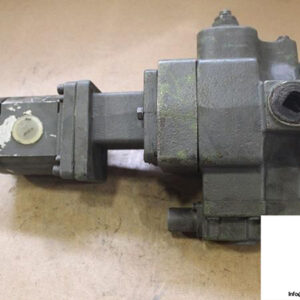

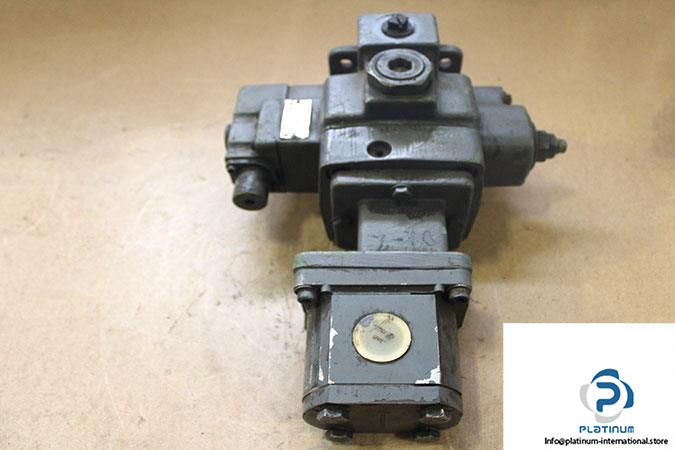

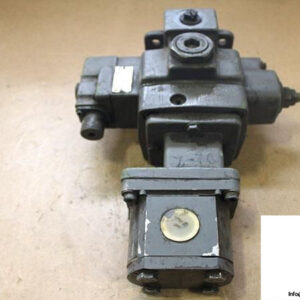

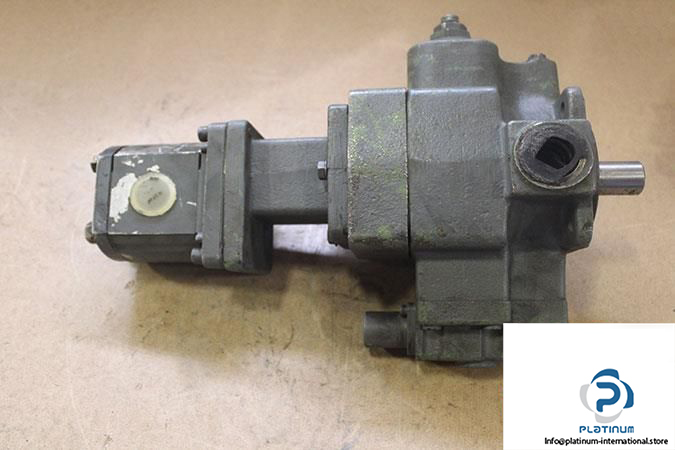

Manufacturer: Rexroth

Type: Variable Vane Pump

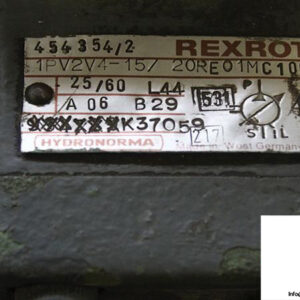

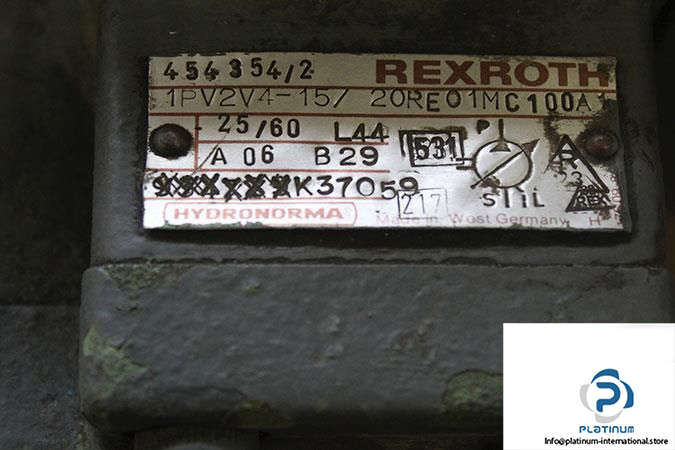

Model: 1PV2V4-15/20RE01MC100A1

size: 20

Displacement: 20.7 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 28 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 29 l/m

Power at 1450 rpm: 8.5 KW

Torque at 100 bar: 228 N.m

Viscosity Range: 40 ….  160 mm²/s

Weight: 29.2 Kg

Attachment: REXROTH 1PF2G223/016RA01MS EXTERNAL GEAR PUMP

Manufacturer: Rexroth

Type: External Gear Pump

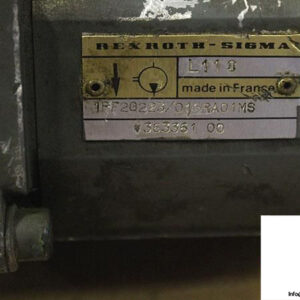

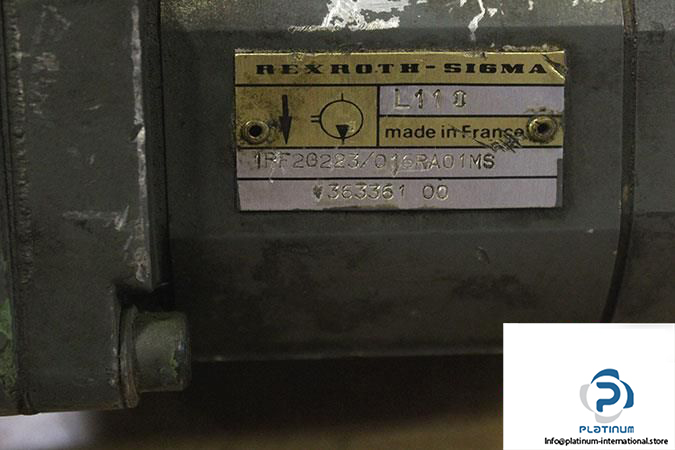

Model: 1PF2G223/016RA01MS

Size: 16

Displacement: 16.2 cm³

Pressure Range: 250 bar

Speed Range: 700-3000 rpm
