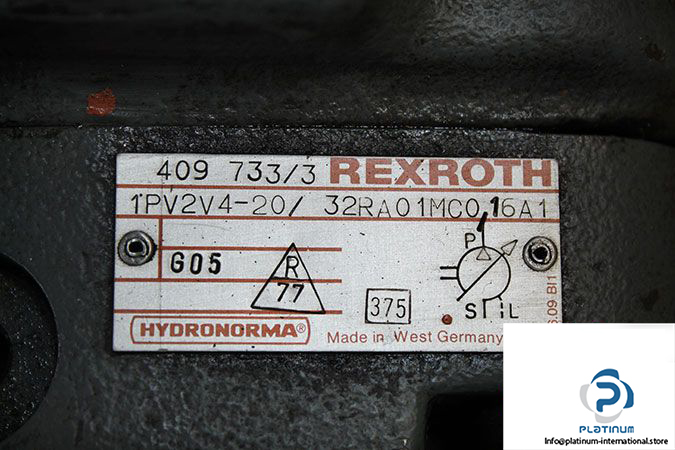

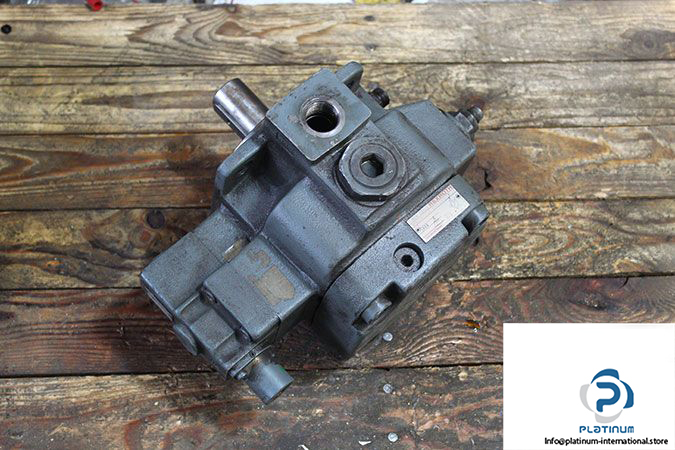

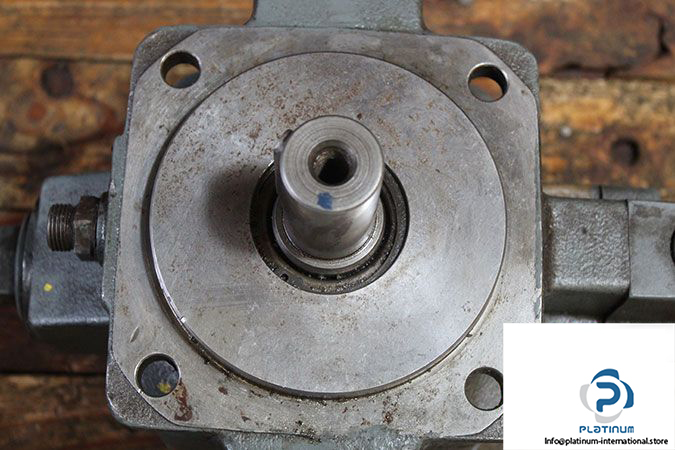

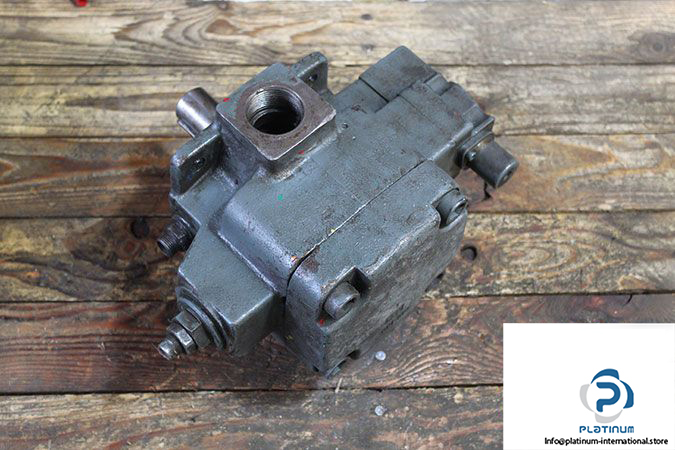

Manufacturer: Rexroth

Type: Variable Vane Single Pump

Model: 1PV2V4-20/32RA01MC016A1

size: 32

Displacement: 34.5 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 32 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 46.4 l/m

Power at 1450 rpm: 14.5 KW

Torque at 100 bar: 294 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 30.1 Kg
