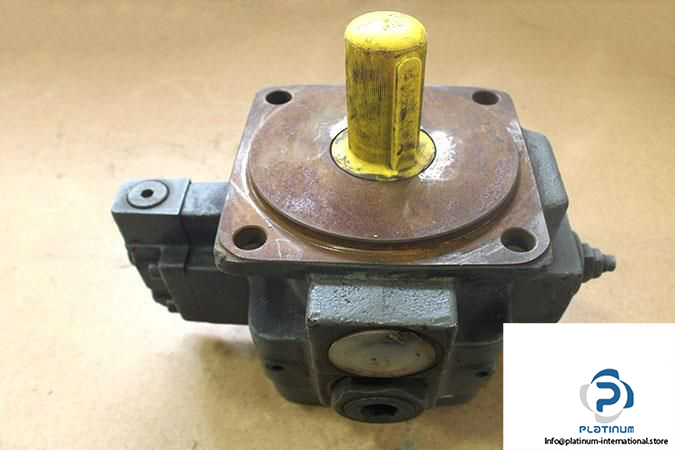

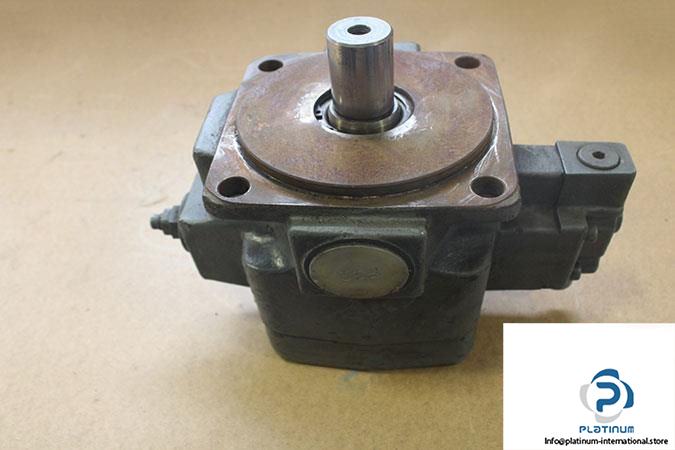

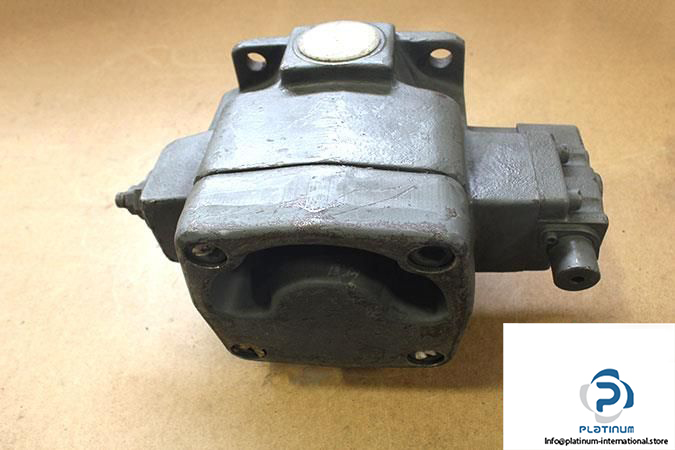

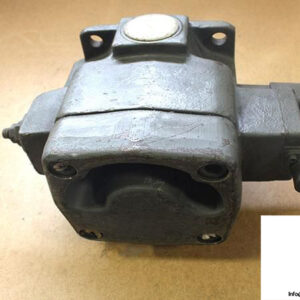

Manufacturer: Rexroth

Type: Variable vane single pump

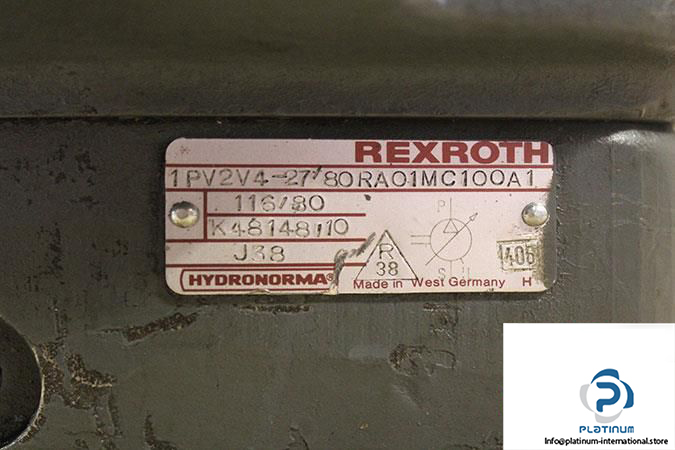

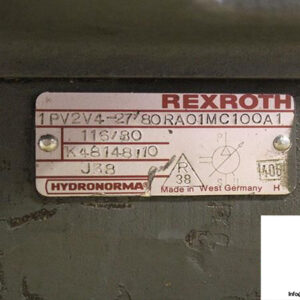

Model: 1PV2V4-27/80RA01MC100A1

size: 80

Displacement: 82.8 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 38 mm

Operating pressure: 160 bar

Speed Range: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 116 l/m

Power at 1450 rpm: 32 KW

Fluid temperature range: -10…. +70 ^OC

Torque at 100 bar: 510 N.m

Viscosity Range: 16 ….  160 mm²/s

Weight: 53 Kg
