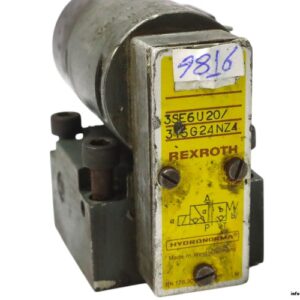

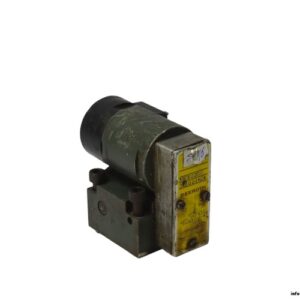

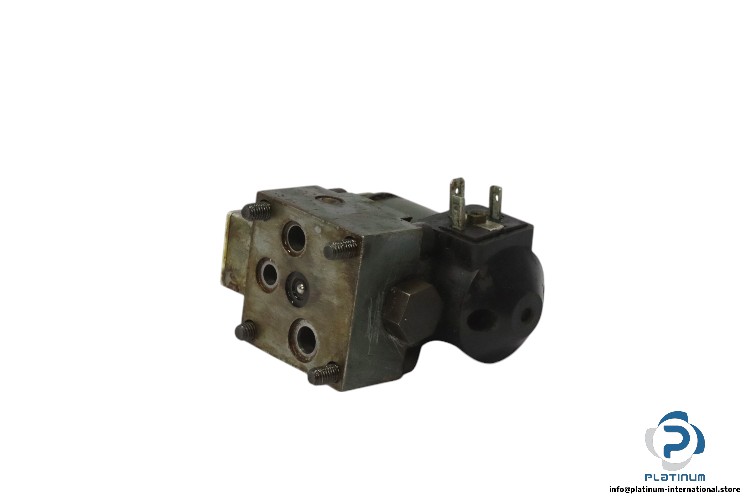

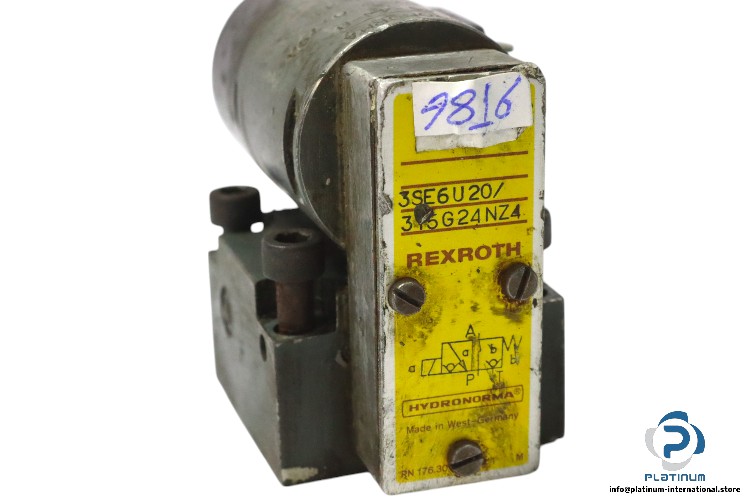

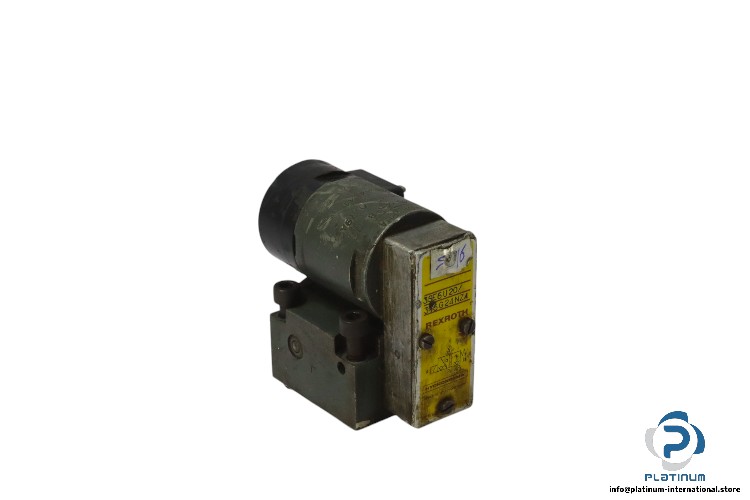

Rexroth 3SE6U20/315G24NZ4 Solenoid Operated Poppet Valve
The Rexroth 3SE6U20/315G24NZ4 Solenoid Operated Poppet Valve is a high-performance, electrically actuated valve designed for precise hydraulic flow control. With a 3/2-way normally open spool configuration and manual override, this valve ensures reliable operation in demanding industrial applications.
Manufacturer: Rexroth
Type: SOLENOID OPERATED POPPET VALVE
Model: 3SE6U20/315G24NZ4
Technical Information:
- Size: 6
- Number of Ports: 3
- Spool Symbol: U, 3/2 Way Normally Open
- Design: With manual override, with quadrate plug
- Type of Actuation: Electrically
- Ambient Temperature Range: -20 to +60 °C
- Maximum Operating Pressure: 315 bar
- Rated Flow: 16 l/min
- Maximum Flow Rate: 25 l/min
- Hydraulic Fluid Temperature Range: -20 to +80 °C
- Connection: Sub-plate

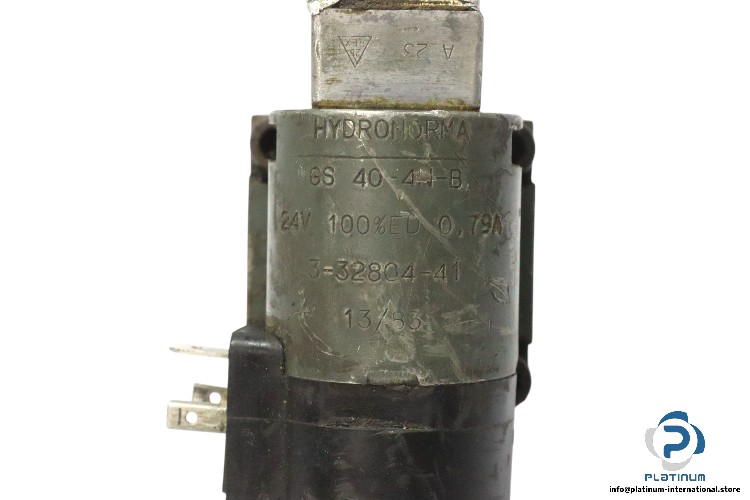

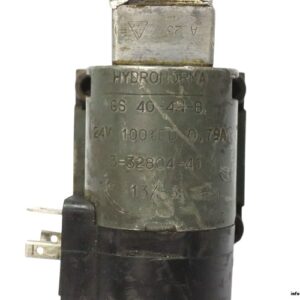

Attachment: HYDRONORMA GS 40-4N-B Solenoid Coil
- Manufacturer: Hydronorma
- Type: Solenoid Coil
- Model: GS 40-4N-B
- Current: 0.79 A
- Voltage: 24 V
This solenoid-operated poppet valve is engineered for superior hydraulic control, providing high pressure resistance, efficient flow regulation, and reliable performance in industrial hydraulic systems.
