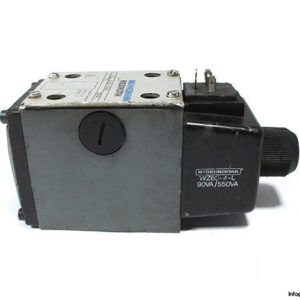

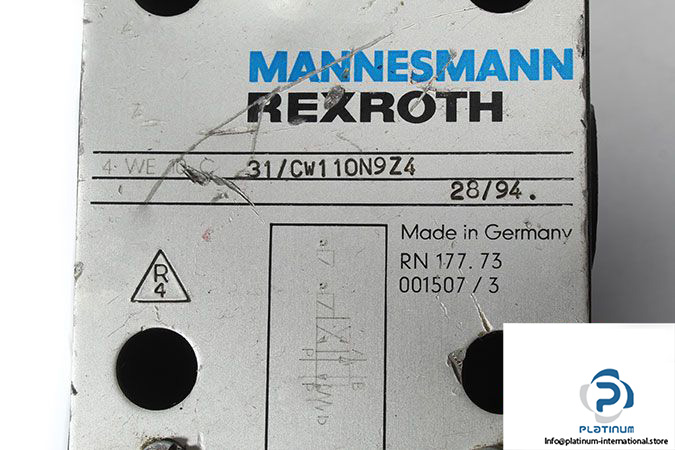

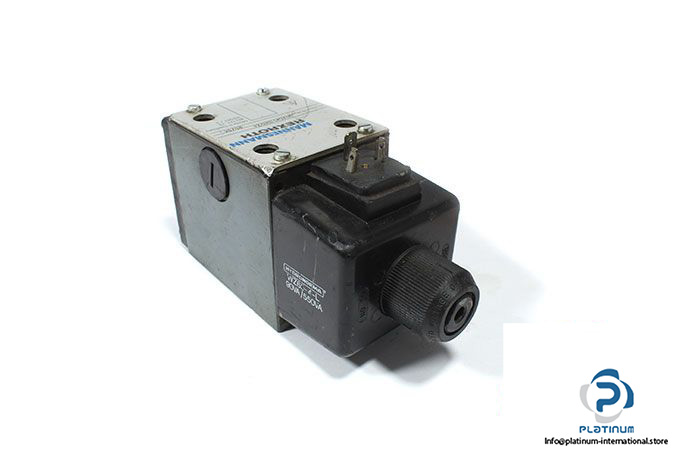

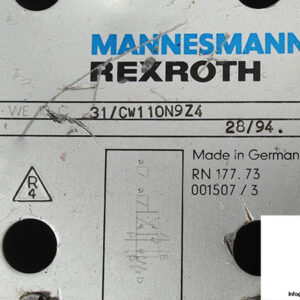

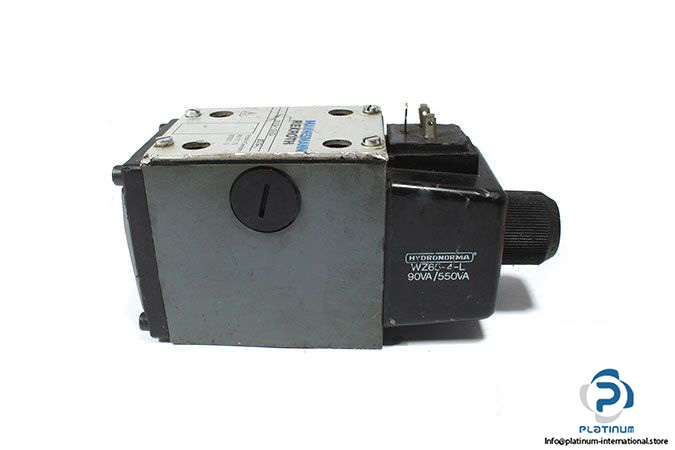

MANNESMANN REXROTH 4WE10C31CW110N9Z4 SOLENOID OPERATED DIRECTIONAL VALVE
The Mannesmann Rexroth 4 WE 10 C 31/CW110N9Z4 is a high-performance solenoid operated directional valve designed for precise hydraulic flow control in demanding industrial environments. Featuring a robust construction, high working pressure, and reliable operation, it is ideal for applications requiring efficient directional control of hydraulic oil.
Manufacturer: Mannesmann Rexroth
Type: Solenoid Operated Directional Valve
Model: 4 WE 10 C 31/CW110N9Z4
Technical Information “ Valve
- Fluid: Oil
- Nominal Size: NG10
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 210 bar
- Nominal Flow Rate: 60 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 / 80 °C

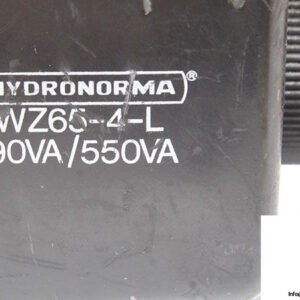

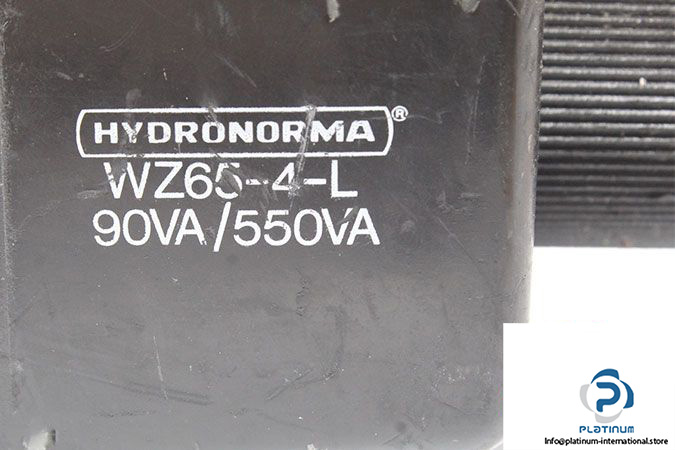

Attachment “ Solenoid Coil
Manufacturer: Hydronorma
Type: Solenoid Coil
Model: WZ65-4-L
- Voltage: 110 / 120 V AC
- Power Consumption: 90 / 550 VA
