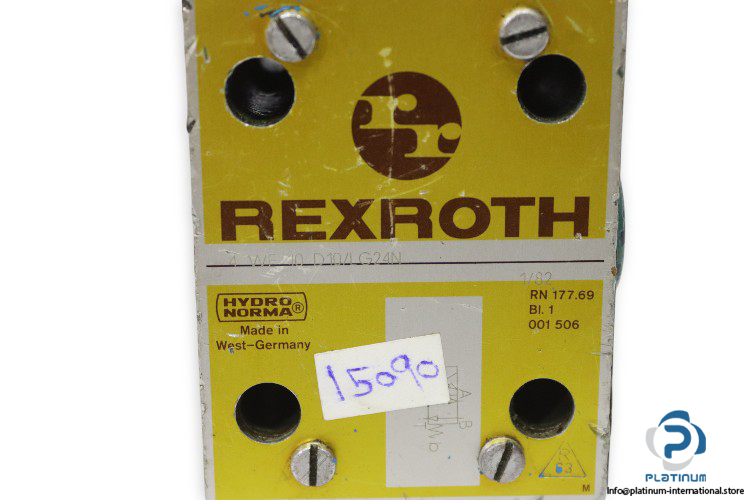

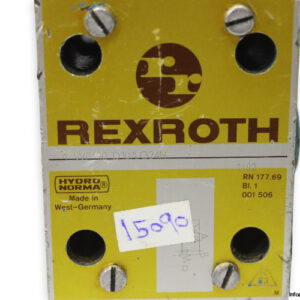

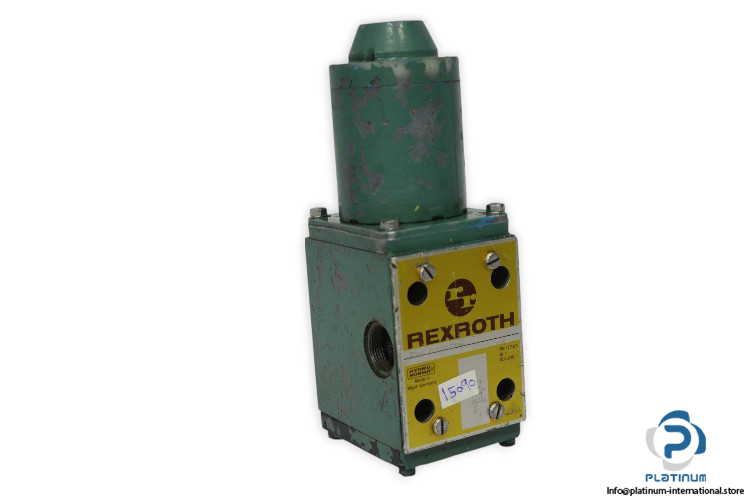

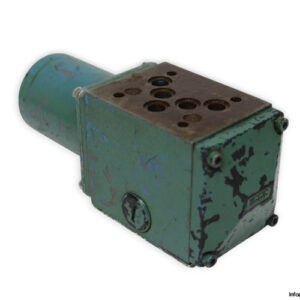

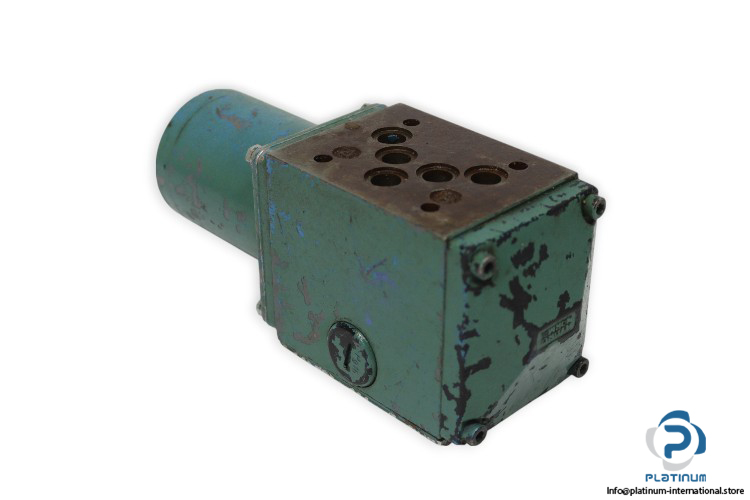

REXROTH HYDRONORMA 4 WE 10 D10/LG24N DIRECTIONAL CONTROL VALVE
The Rexroth Hydronorma 4 WE 10 D10/LG24N is a high-performance directional control valve equipped with a reinforced compression spring for reliable hydraulic control. Engineered for demanding industrial systems, this valve operates efficiently under high pressure and extreme temperatures.
Manufacturer: Rexroth Hydronorma
Type: Directional Control Valve (With reinforced compression spring)
Model: 4 WE 10 D10/LG24N
Code: RN 177.69, 001506
Technical Information
- Connection: ¾ inch
- No of Port: 4
- Size: 10
- Ambient Temperature Range: -30 to +50 °C
- Maximum Operating Pressure at Ports A, B, P: 315 bar
- Maximum Operating Pressure at Port T: 210 bar
- Hydraulic Fluid Temperature Range: -30 to +80 °C
- Viscosity Range: 2.8 to 500 mm²/s
- Voltage: 24 V
