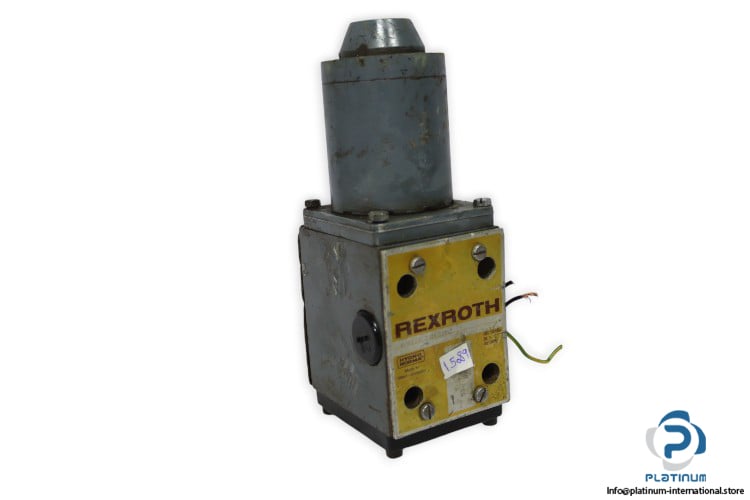

REXROTH 4 WE 10 D10/LG24NZ DIRECTIONAL CONTROL VALVE
The Rexroth 4 WE 10 D10/LG24NZ is a high-performance 4-port, size 10 electrically actuated directional control valve, built to handle demanding hydraulic systems with reinforced compression spring and efficient pressure control.
Manufacturer: Rexroth
Type: Directional Control Valve (With reinforced compression spring)

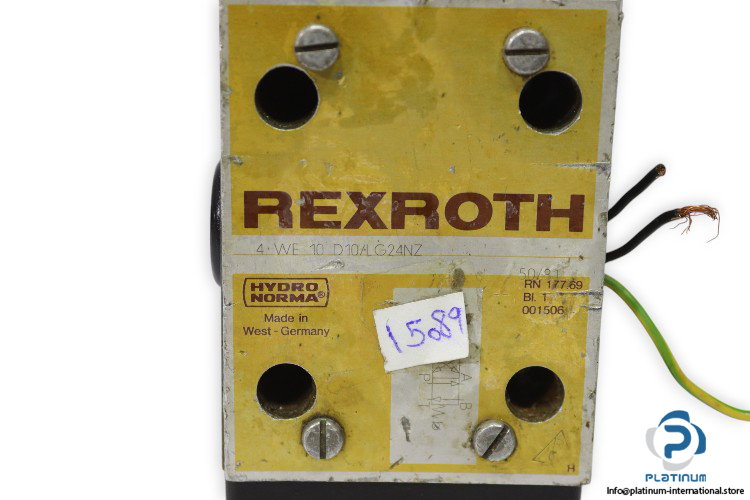

Model: 4 WE 10 D10/LG24NZ
Code: RN 177.69, 001506
Technical Information
- Number of Ports: 4
- Size: 10
- Type of Actuation: Electrically
- Ambient Temperature Range: -30 to +50 °C
- Max Operating Pressure (Ports A, B, P): 315 bar
- Max Operating Pressure (Port T): 210 bar
- Maximum Flow Rate: 120 l/min
- Hydraulic Fluid Temp. Range: -30 to +80 °C
- Viscosity Range: 2.8 to 500 mm²/s

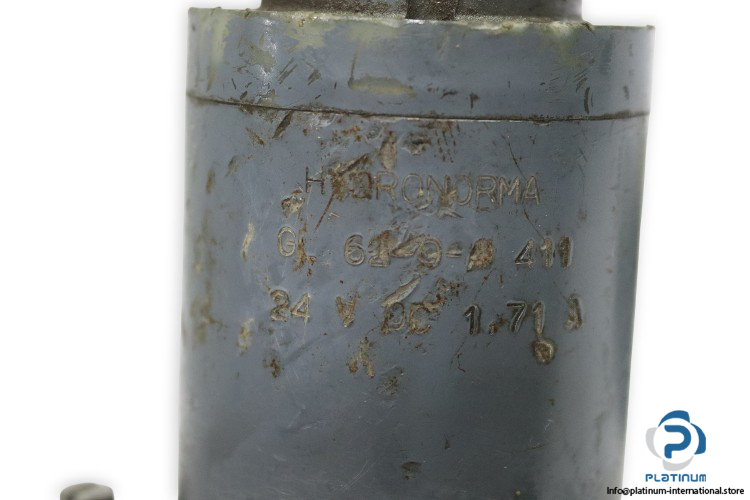

Attachment – Coil
- Manufacturer: HYDRONORMA
- Type: Coil
- Model: GL-61-0-0 411
- Voltage: 24 V DC
- Current: 1.71 A
