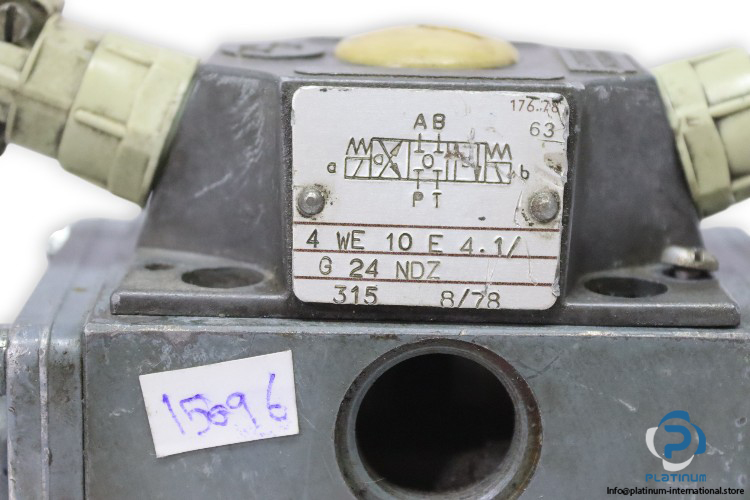

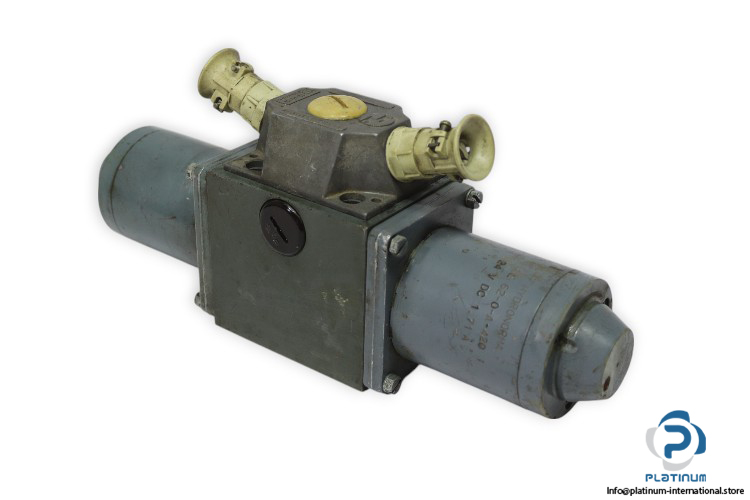

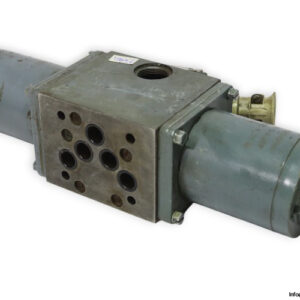

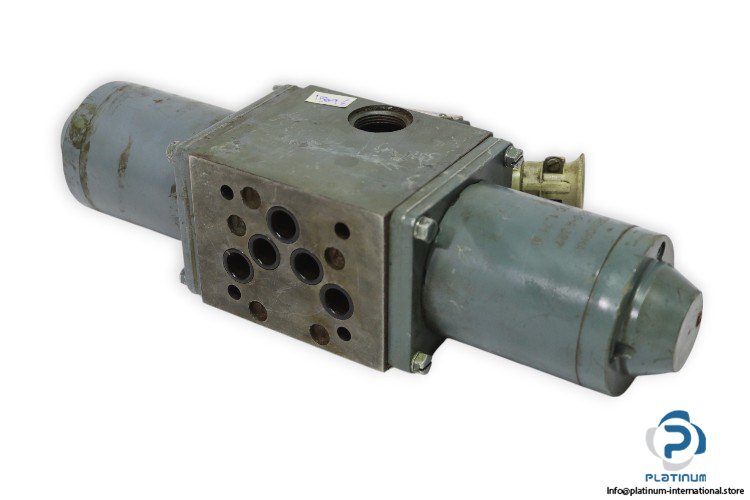

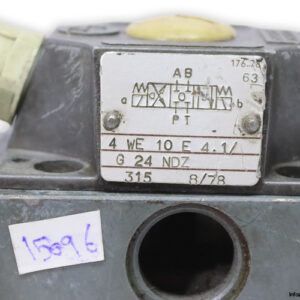

REXROTH 4 WE 10 E 4.1/G24 NDZ DIRECTIONAL CONTROL VALVE
The Rexroth 4 WE 10 E 4.1/G24 NDZ is a high-performance electrically actuated directional control valve designed for hydraulic systems. With a robust 4-port design, it supports high operating pressures and excellent flow rates, making it ideal for demanding industrial applications.
Manufacturer: Rexroth
Type: Directional Control Valve
Model: 4 WE 10 E 4.1/G24 NDZ
Code: 8/78, 176.28, 63
Technical Information
- No of Ports: 4
- Size: 10
- Type of Actuation: Electrically
- Ambient Temperature Range: -30 to +50 °C
- Max. Operating Pressure (A, B, P): 315 bar
- Max. Operating Pressure (T): 210 bar
- Maximum Flow Rate: 120 l/min
- Hydraulic Fluid Temperature Range: -30 to +80 °C
- Viscosity Range: 2.8 to 500 mm²/s
Attachment

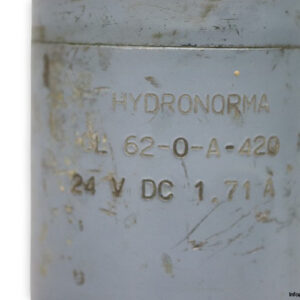

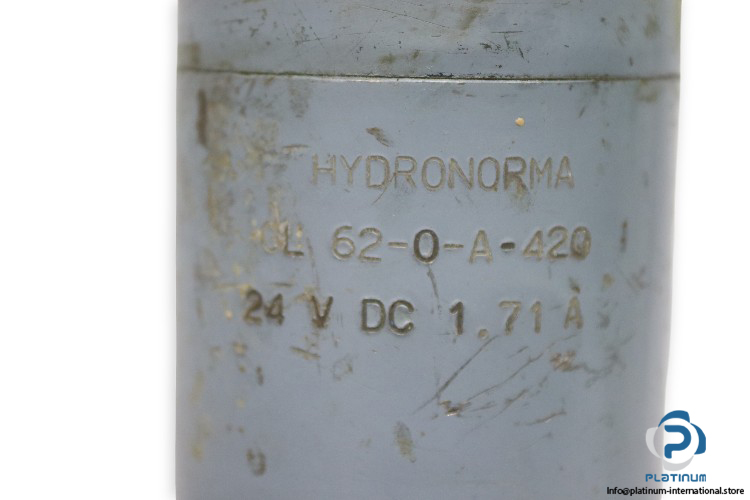

- Manufacturer: HYDRONORMA
- Type: Coil
- Model: GL-62-0-A 420
- Voltage: 24 V DC
- Current: 1.71 A
