Used
Manufacturer: REXROTH

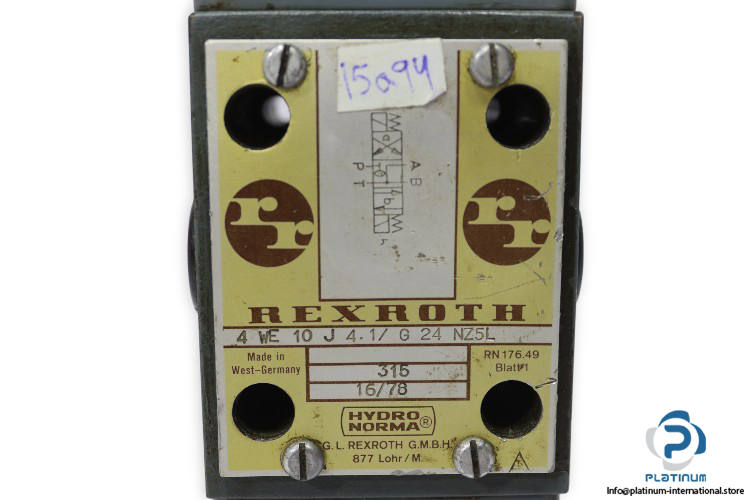

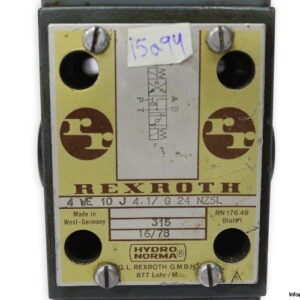

REXROTH 4 WE 10 J 4.1/G24 NZ5L DIRECTIONAL CONTROL VALVE

DIRECTIONAL CONTROL VALVE

Rexroth 4WE10J4.1/G24NZ5L directional valve with 4 ports, size 10, and electrical actuation. Rated up to 315 bar and 120 l/min flow. Supplied with Hydronorma 24V DC coil.

SKU: 1085889 Category: Tags: , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

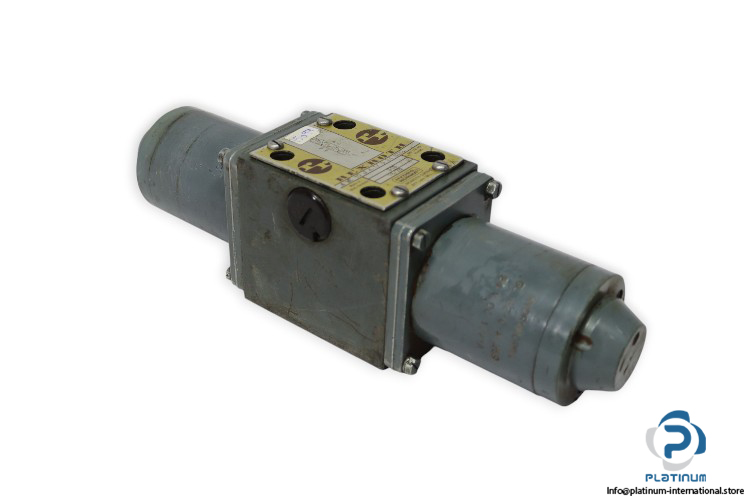

REXROTH 4WE10J4.1/G24NZ5L DIRECTIONAL CONTROL VALVE

The Rexroth 4WE10J4.1/G24NZ5L is a high-performance electrically actuated directional control valve, engineered for hydraulic systems requiring high flow rates and precision control under extreme conditions. Paired with the Hydronorma GL-62-0-A 259 coil, this unit delivers robust operation and long service life.

Manufacturer: Rexroth
Type: Directional Control Valve
Model: 4 WE 10 J 4.1/G24 NZ5L
Code: RN 176.49, 16/78

Technical Information

  • No. of Ports: 4
  • Size: 10
  • Type of Actuation: Electrically
  • Ambient Temperature Range: -30 to +50 °C
  • Max. Operating Pressure (Ports A, B, P): 315 bar
  • Max. Operating Pressure (Port T): 210 bar
  • Max. Flow Rate: 120 l/min
  • Hydraulic Fluid Temperature Range: -30 to +80 °C
  • Viscosity Range: 2.8 to 500 mm²/s

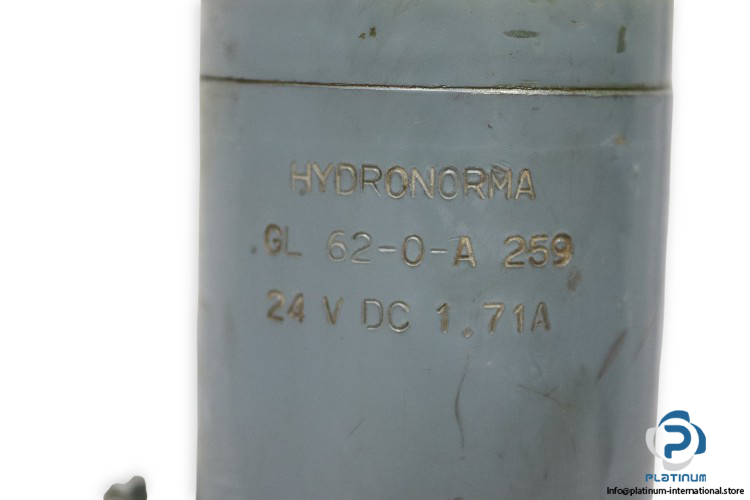

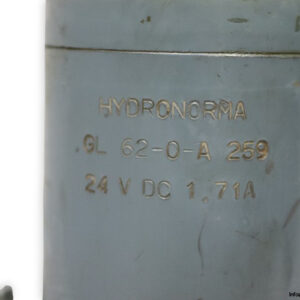

Attachment – Coil

Manufacturer: Hydronorma
Type: Coil
Model: GL-62-0-A 259
Voltage: 24 V DC
Current: 1.71 A

Weight5,42 kg
