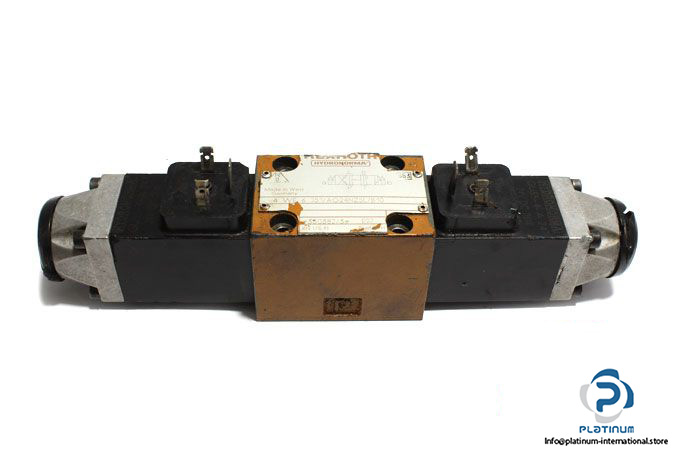

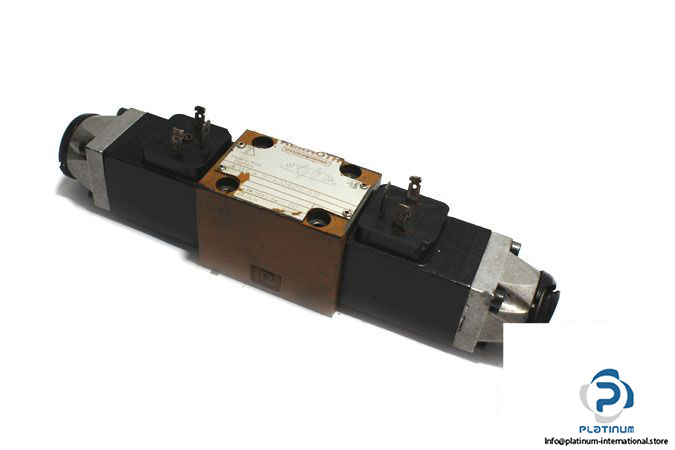

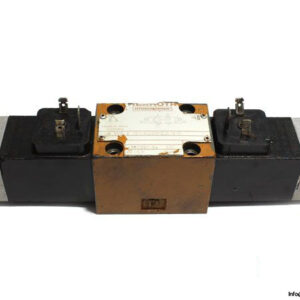

REXROTH HYDRONORMA 4WE6J51AG24NZ5LB10 DIRECTIONAL SPOOL VALVE WITH SOLENOID COIL
The Rexroth Hydronorma 4 WE 6 J51/AG24NZ5L/B10 is a direct-operated directional spool valve engineered for reliable hydraulic control. Designed for use with oil-based fluids, it ensures efficient flow and high-pressure performance in demanding systems.
Manufacturer: Rexroth Hydronorma
Type: Direct Operated Directional Spool Valve

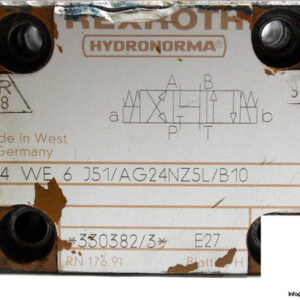

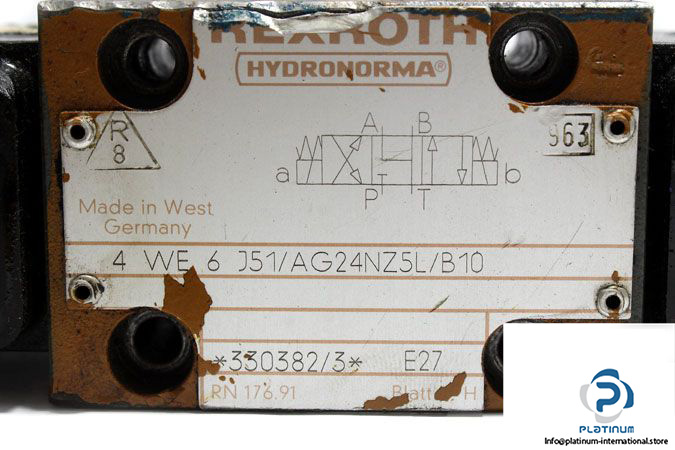

Model: 4 WE 6 J51/AG24NZ5L/B10
Part No.: 330382/3
Valve Technical Specifications
- Fluid: Oil
- Size: NG6
- Type of Actuation: Electrically
- Maximum Operating Pressure at Ports A, B, P: 350 bar
- Maximum Operating Pressure at Port T: 210 bar
- Maximum Flow Rate: 80 l/min (DC), 60 l/min (AC)
- Ambient Temperature Range: -30 / 50 °C
- Viscosity Range: 2.8 / 500 mm²/s
- Connection: Sub-plate

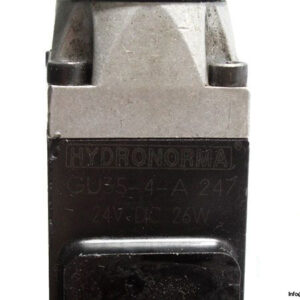

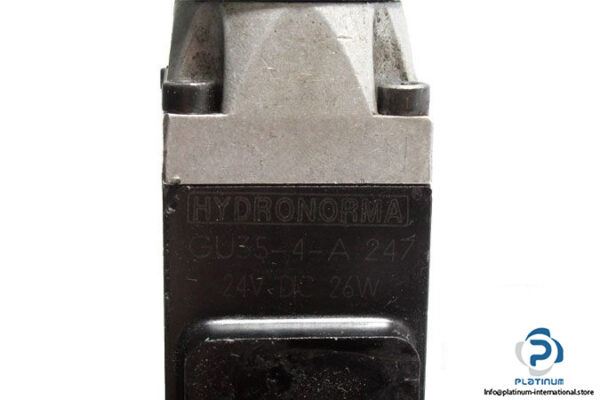

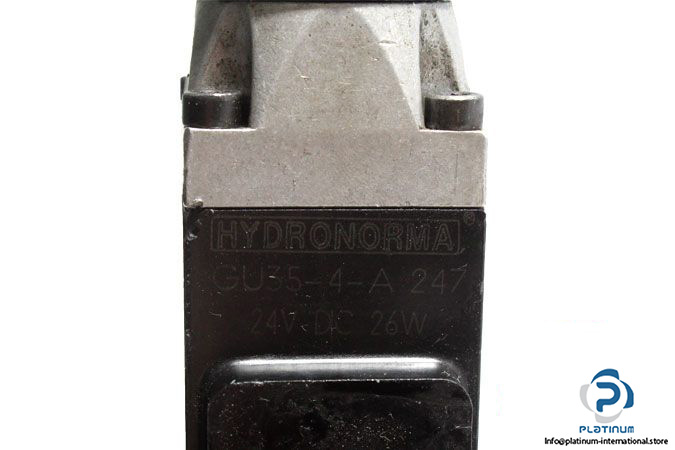

Solenoid Coil Details
- Manufacturer: Rexroth Hydronorma
- Type: Solenoid Coil
- Model: GU35-4-A
- Supply Voltage: 24 V DC
- Power Consumption: 26 W
