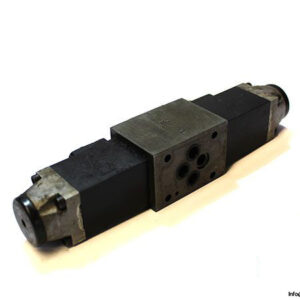

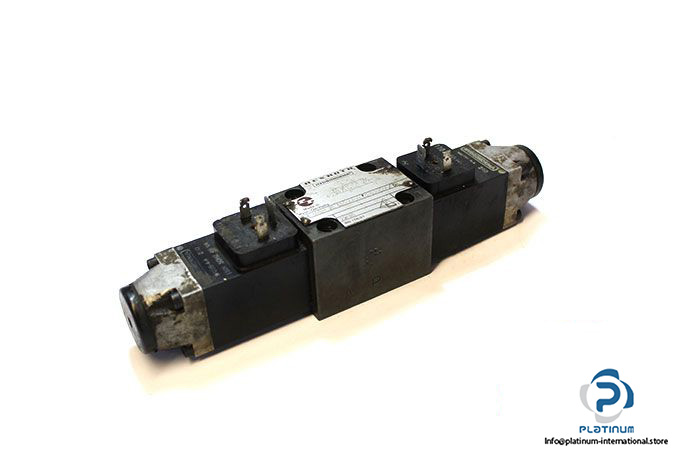

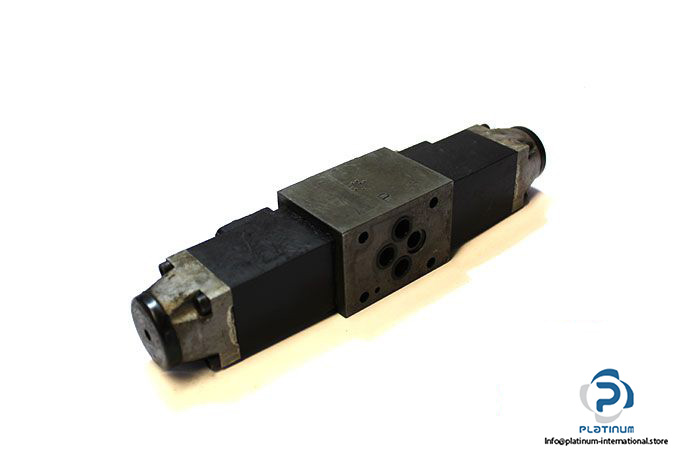

REXROTH HYDRONORMA 4WEH20E506AW11050NEZ45 PILOT OPERATED DIRECTIONAL VALVE
The Rexroth Hydronorma 4 WEH 20 E50/6AW110-50NEZ4/5 is a high-performance pilot operated directional valve designed for efficient fluid control in hydraulic systems. Engineered for heavy-duty applications, this valve provides high flow capacity and reliable switching performance under high pressure conditions.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Directional Valve

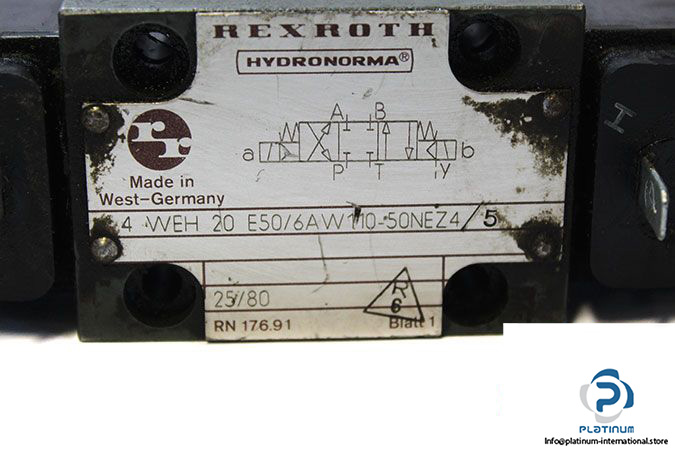

Model: 4 WEH 20 E50/6AW110-50NEZ4/5
Technical Specifications
- Fluid: Oil
- Size: NG20
- Maximum Operating Pressure: 280 bar
- Maximum Pilot Pressure: 250 bar
- Maximum Flow Rate: 1100 l/min
- Material: Aluminum
- Hydraulic Connection: Sub-plate
- Ambient Temperature: -30 / 50 °C

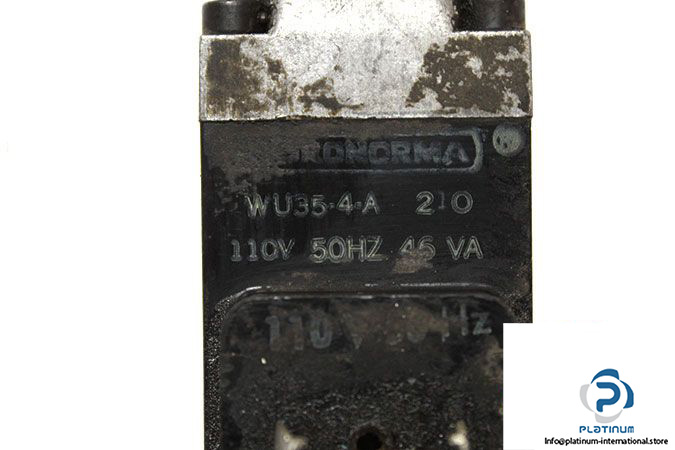

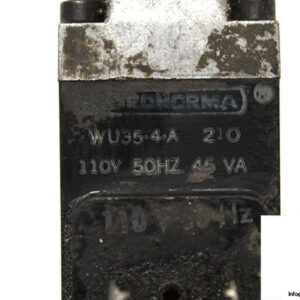

Solenoid Coil Attachment
- Manufacturer: HYDRONORMA
- Type: Solenoid Coil
- Model: WU35-4-A 210
- Supply Voltage: 110 V AC
- Frequency: 50 Hz
- Power Consumption: 46 VA
