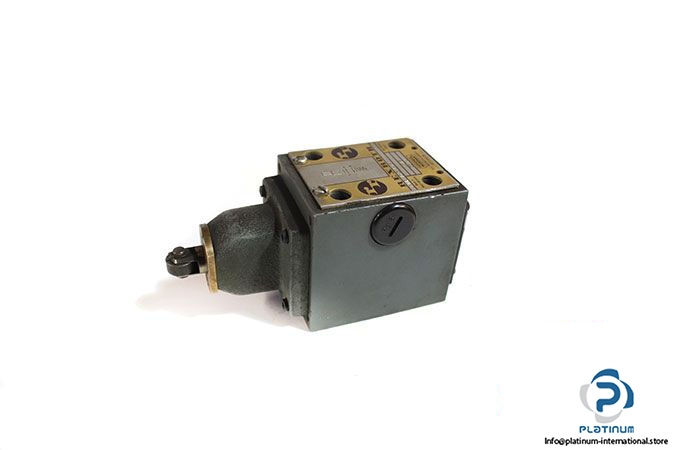

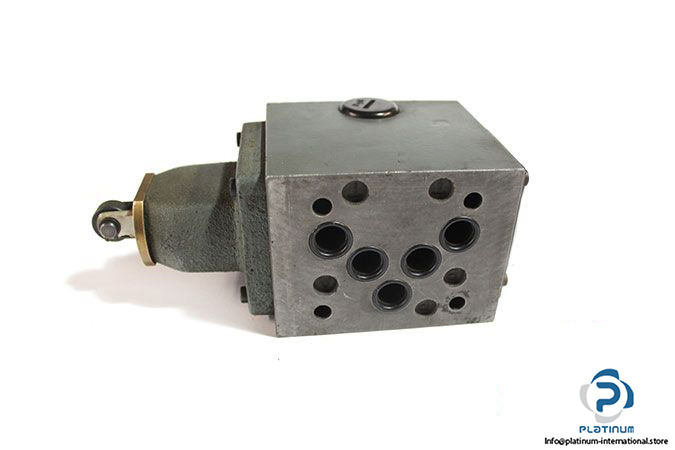

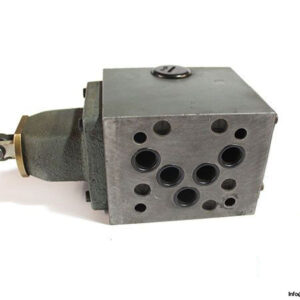

Manufacturer: Rexroth

Type: Directional Control Valve

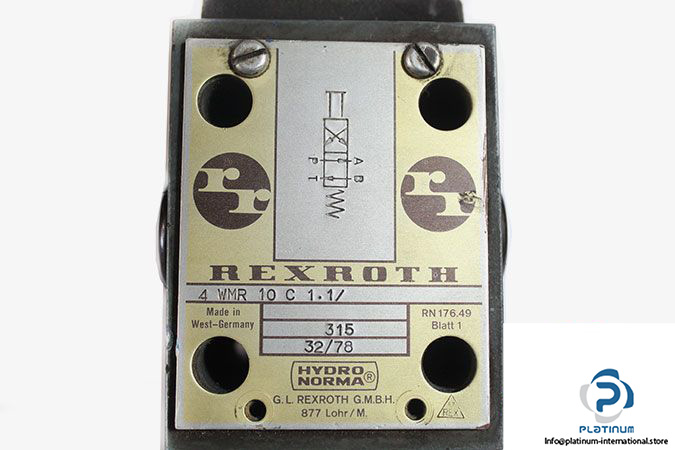

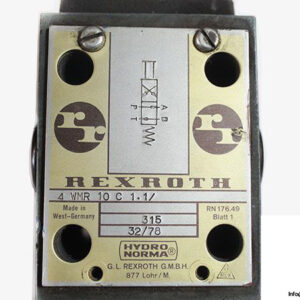

Model: 4 WMR 10 C 1.1/

Size: 10

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Ports A,B P : Up to 315 bar

Maximum operating pressure at Port T : Up to 160 bar

Maximum Flow Rate: Up to 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

Weight: 3.43 kg
