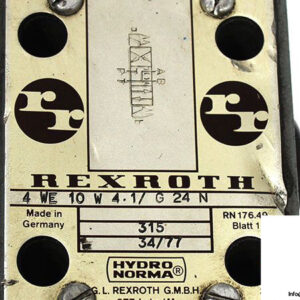

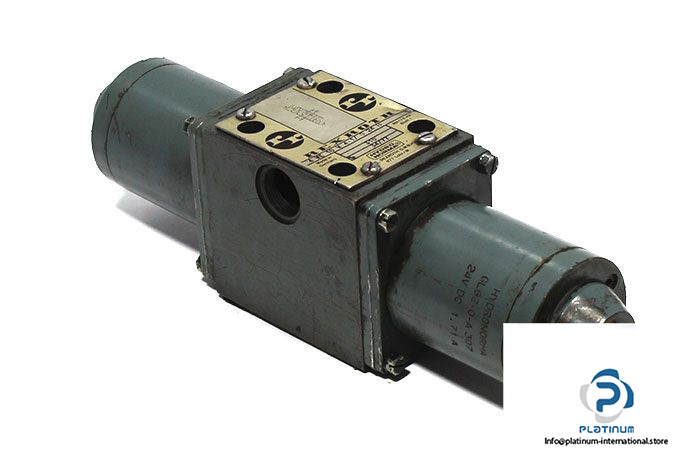

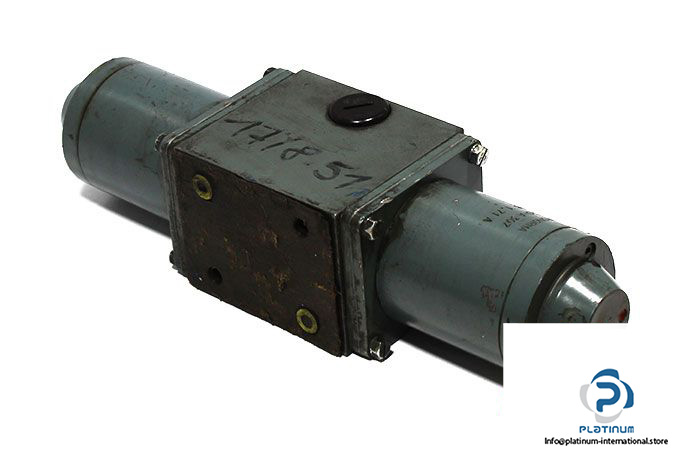

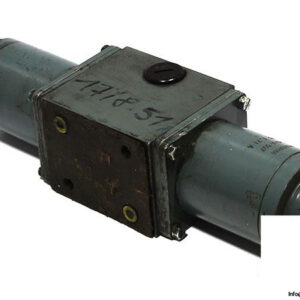

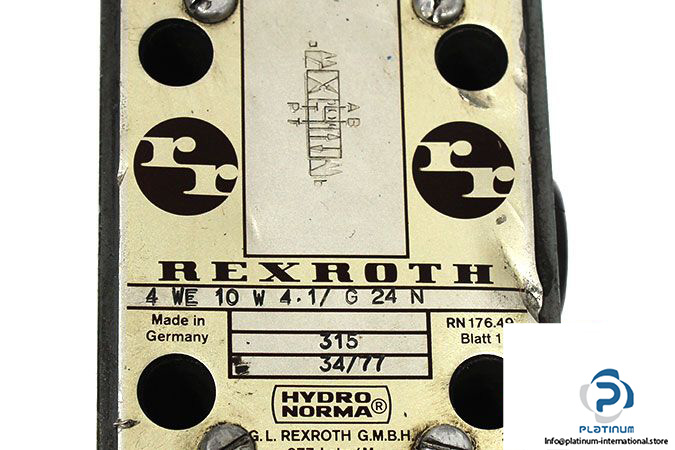

REXROTH HYDRONORMA 4WE10W41G24N SOLENOID OPERATED DIRECTIONAL VALVE WITH HYDRONORMA GL62-0-A 307 COIL

The Rexroth Hydronorma 4WE 10 W4.1/G24N is a high-performance solenoid operated directional valve designed for precise hydraulic flow control in demanding industrial applications. Paired with the Hydronorma GL62-0-A 307 solenoid coil, this unit ensures reliable operation under high pressure and flow conditions.

Manufacturer: Rexroth Hydronorma
Type: Solenoid Operated Directional Valve
Model: 4WE 10 W4.1/G24N

Technical Information – Valve

• Fluid: Oil
• Nominal Size: NG10
• Type of Actuation: Electrically
• Max. Working Pressure: 315 bar
• Max. Flow Rate: 120 l/min
• Hydraulic Connection: Sub-Based
• Fluid Temperature Range: -20 / 80 °C

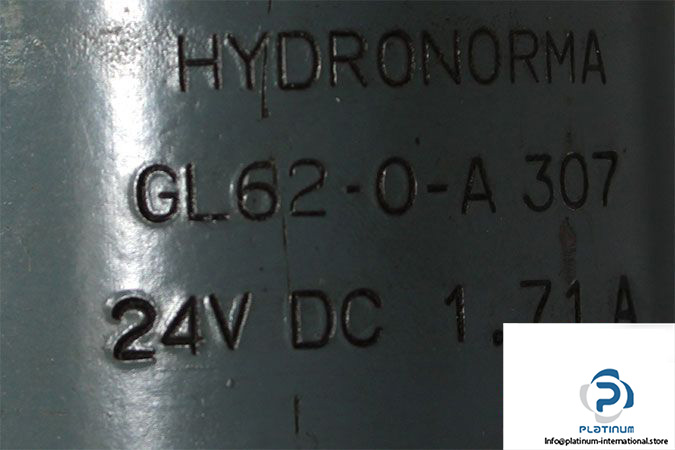

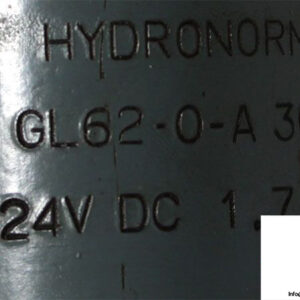

Technical Information – Solenoid Coil

• Manufacturer: Hydronorma
• Type: Solenoid Coil
• Model: GL62-0-A 307
• Voltage: 24 V DC
• Current: 1.71 A
