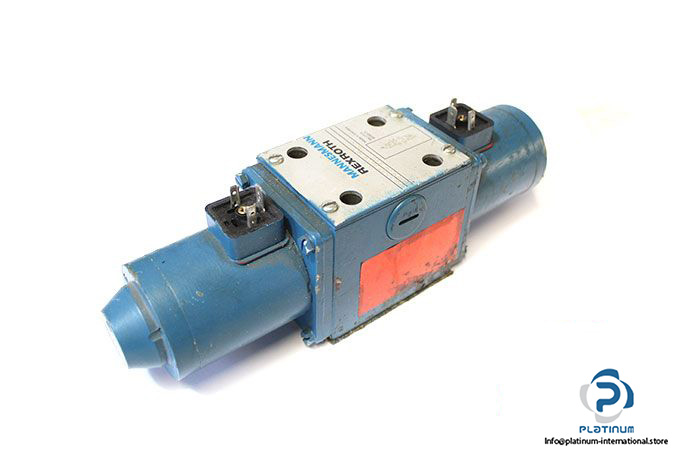

Manufacturer: MANNESMANN REXROTH
Type: Directional Control Valve

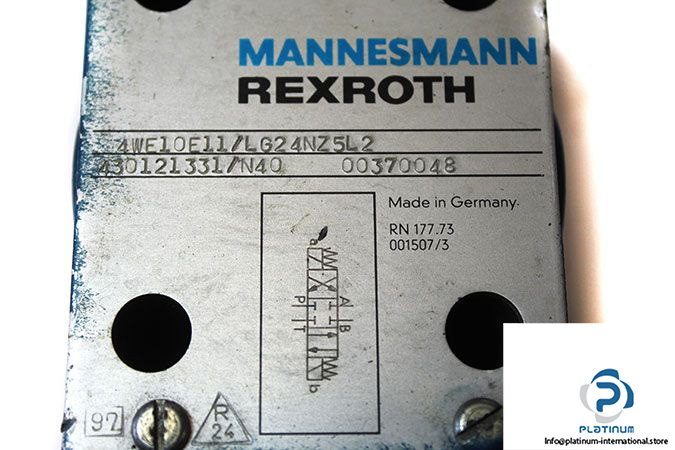

Model: 4WE10E11/LG24NZ5L2

Size: NG10
Type of Actuation: Electrically
Valve Function: 4/3 way valve
Ambient Temperature Range: -20 …. +50 ^oC
Maximum Operating Pressure at Ports A, B, P:315 bar , 31.5 MPa
Maximum Operating Pressure at Port T :210 bar,21 MPa
Maximum Flow Rate: 120 l/min
Hydraulic Fluid Temperature Range: -20 …. +70 ^oC
Control Voltage for solenoids: 24 V DC
Viscosity Range: 2.8 … 380 mm²/s

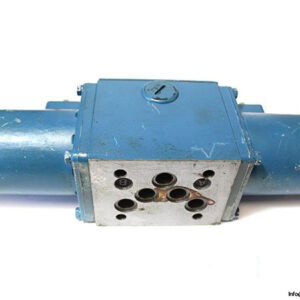

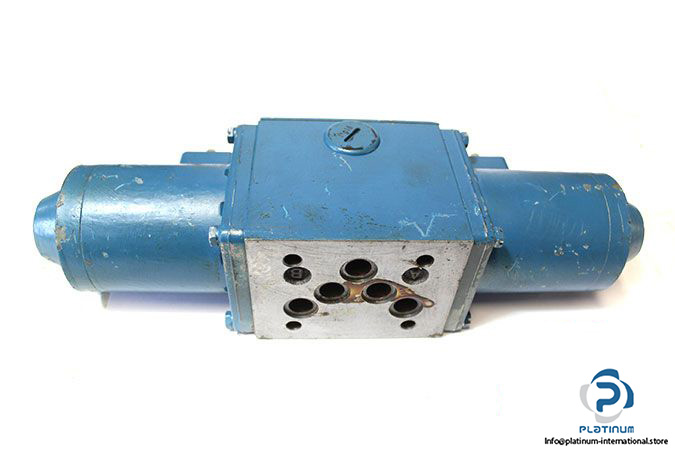

Connection: Sub-plate
