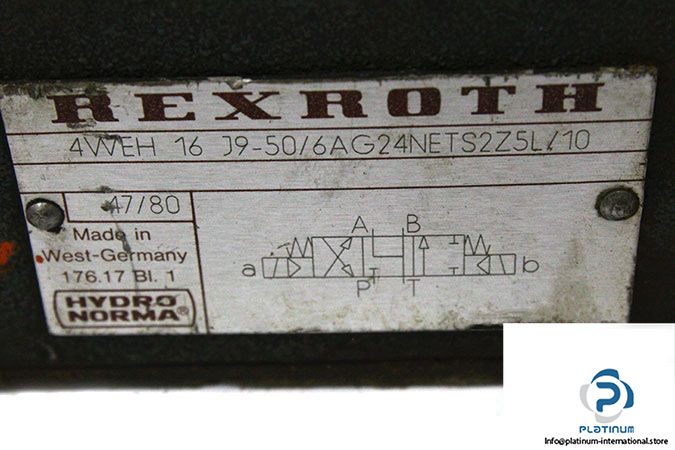

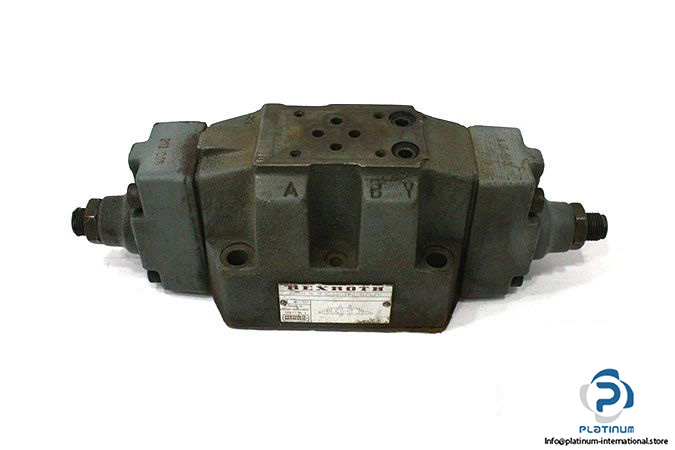

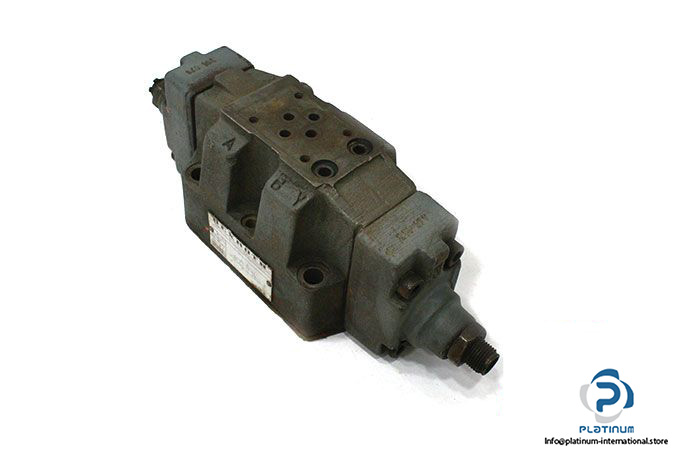

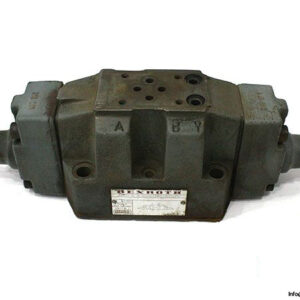

REXROTH HYDRONORMA 4WEH16J9506AG24NETS2Z5L10 DIRECTIONAL VALVE
The Rexroth Hydronorma 4WEH 16 J9-50/6AG24NETS2Z5L/10 is a high-performance pilot operated directional valve engineered for precise control in hydraulic systems. With a robust electro-hydraulic actuation mechanism and sub-plate connection, it ensures reliable operation under demanding industrial conditions.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Directional Valve
Model: 4WEH 16 J9-50/6AG24NETS2Z5L/10
Technical Information
- Fluid: Oil
- Nominal Size: NG 16
- Type of Actuation: Electro-hydraulic
- Max. Working Pressure (Port P, A, B): 280 bar
- Max. Pressure (Port T): 280 bar
- Nominal Flow Rate: 1100 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 to 70 °C
