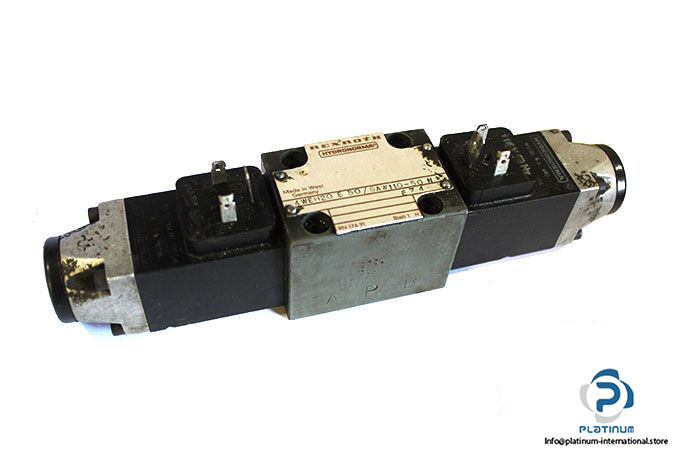

REXROTH HYDRONORMA 4WEH20E506AW11050N PILOT OPERATED DIRECTIONAL VALVE
The Rexroth Hydronorma 4WEH20 E50/6AW110-50 N is a high-performance pilot operated directional valve designed for reliable operation in demanding hydraulic systems. Built for durability, it delivers precise directional control with high flow capacity and robust sealing.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Directional Valve

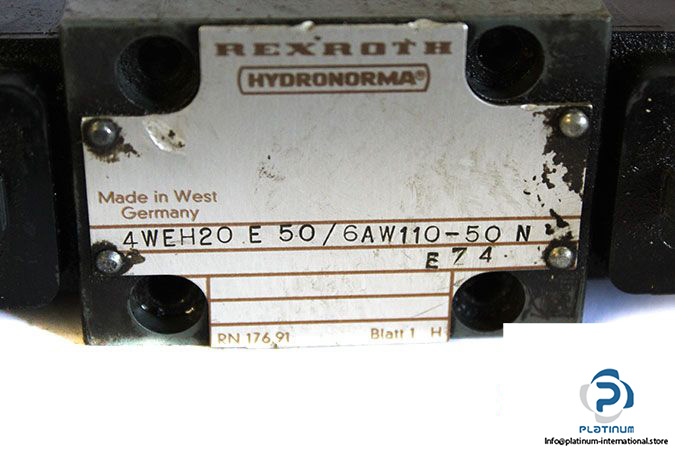

Model: 4WEH20 E50/6AW110-50 N
Technical Information
- Fluid: Oil
- Size: NG20
- Maximum Operating Pressure: 280 bar
- Maximum Pilot Pressure: 250 bar
- Maximum Flow Rate: 1100 l/min
- Ambient Temperature: -30 / 50 °C
- Viscosity Range: 2.8 / 500 mm²/s

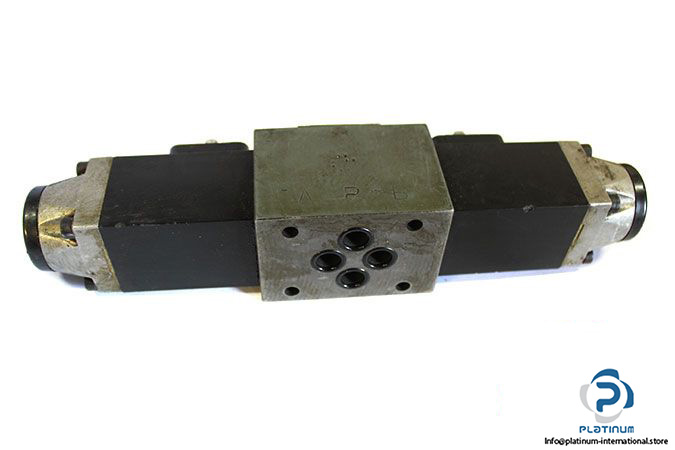

- Connection: Sub-Plate
Attachment

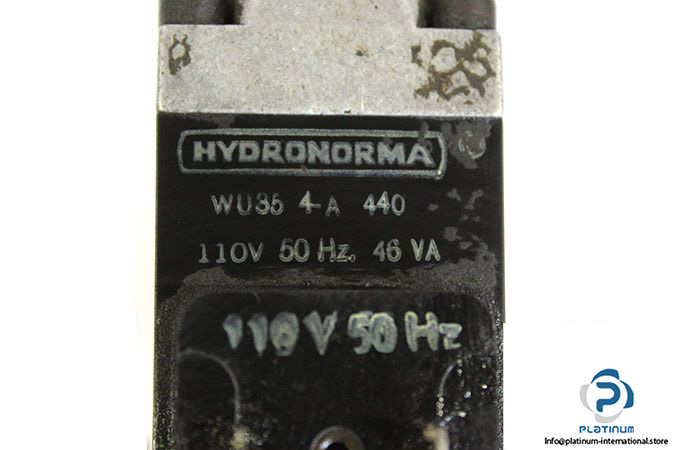

Manufacturer: Hydronorma
Type: Solenoid Coil
Model: WU35 4A 440
- Voltage: 110 V AC
- Frequency: 50 Hz
- Power: 46 VA
