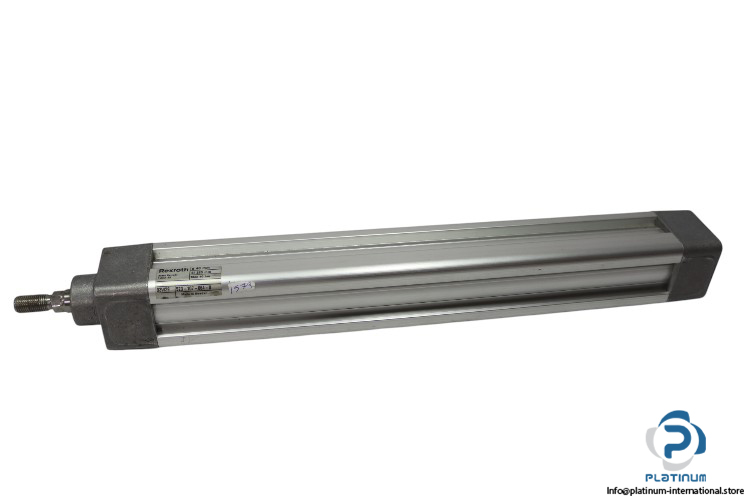

BOSCH REXROTH 5231070640 TIE ROD CYLINDER

This robust tie rod cylinder from Bosch Rexroth (Series 253) is designed for compressed air applications, featuring a durable construction and double-acting operation ideal for industrial automation systems.

Manufacturer: Bosch Rexroth
Type: Tie Rod Cylinder

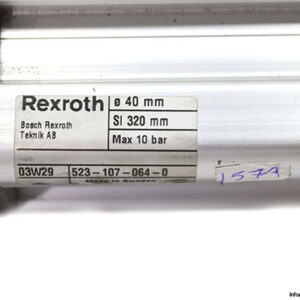

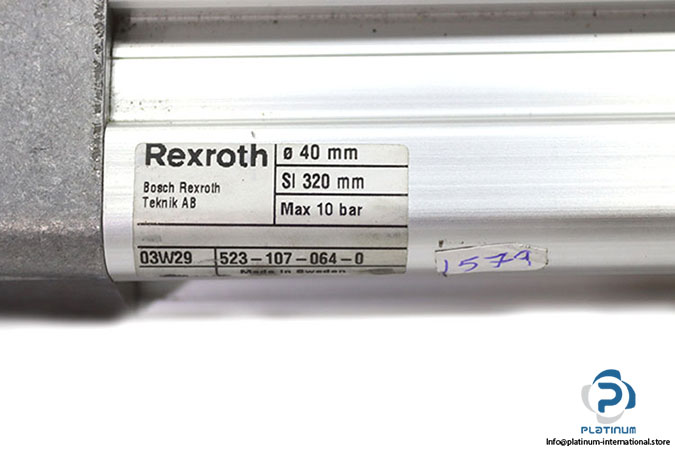

MNR: 5231070640
Ref. No.: 03W29
Series: 253

Technical Information

• Media: Compressed Air
• Bore Diameter: 40 mm
• Stroke: 320 mm
• Bore x Stroke: 40 x 320 mm
• Rod Diameter: 16 mm
• Frame Dimensions: 53 x 430 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Range: -20 to +70°C

Material Specifications

• Piston Rod: Stainless Steel
• Piston Rod Bushing: Steel with PVDF + PTFE Bearing Surface
• Cylinder Body: Anodized Aluminum
• End Covers: Aluminum
• Tie-rods: Surface Treated Steel
• Nut: Surface Treated Steel
• Wiper: Polyurethane
