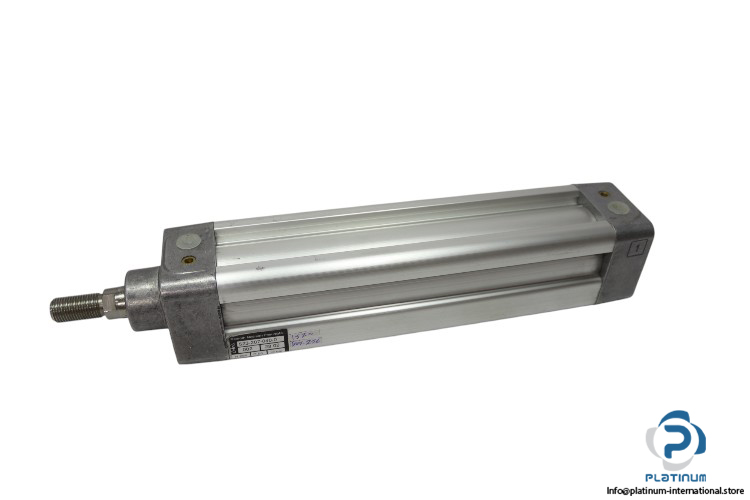

REXROTH MECMAN 5232070400 TIE ROD CYLINDER

This industrial-grade tie rod cylinder from Rexroth Mecman, Series 253, delivers robust pneumatic performance and high durability for compressed air applications.

Manufacturer: Rexroth Mecman
Type: Tie Rod Cylinder

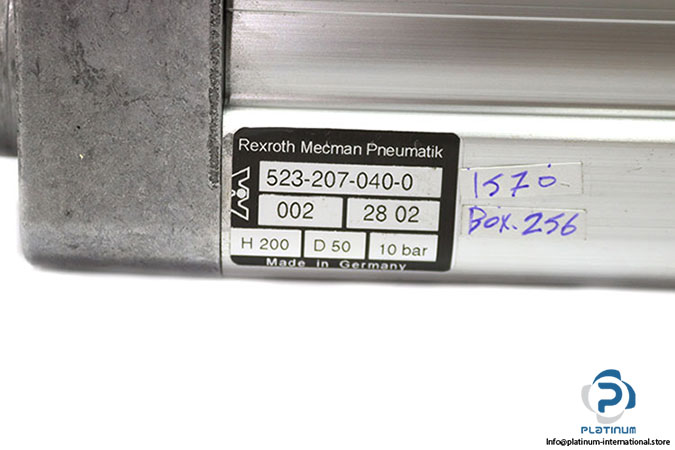

Model: 5232070400
Ref. No.: 002 28 02
Series: 253

Technical Information

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 200 mm
• Bore x Stroke: 50 x 200 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 66 x 310 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Range: -20 to +70° C

Material Composition

• Piston Rod: Stainless Steel
• Piston Rod Bushing: Steel with PVDF + PTFE Bearing Surface
• Cylinder Body: Anodized Aluminum
• End Covers: Aluminum
• Tie-Rods: Surface Treated Steel
• Nut: Surface Treated Steel
• Wiper: Polyurethane
