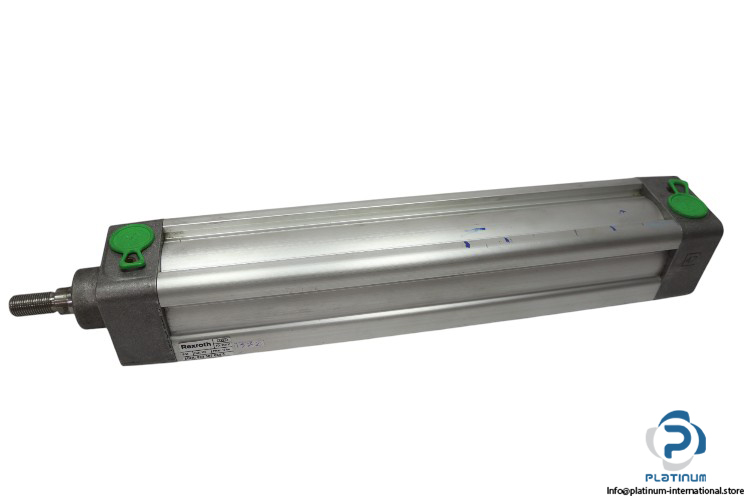

REXROTH 5233070640 TIE ROD CYLINDER

Rexroth’s 253 Series tie rod cylinder is engineered for high-performance pneumatic applications, offering durability and precision under demanding industrial conditions.

Manufacturer: Rexroth
Type: Tie Rod Cylinder

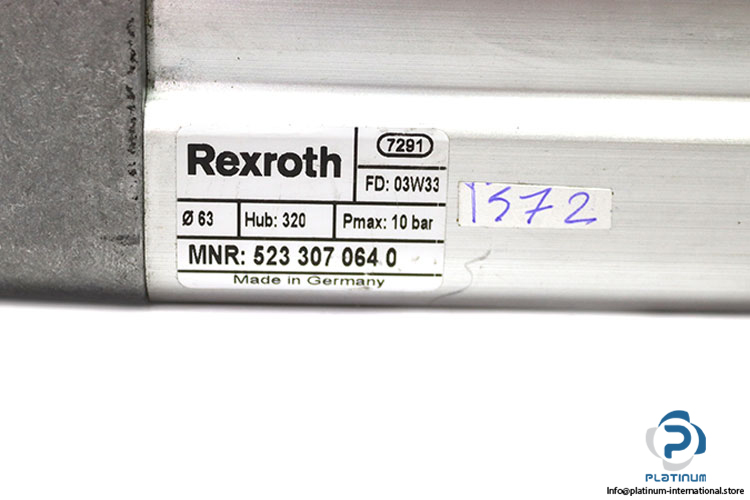

MNR: 5233070640
Ref. No.: 03W33 / 7291
Series: 253

Technical Information

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 320 mm
• Bore x Stroke: 63 x 320 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 77 x 440 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Range: -20 to +70° C

Materials

• Piston Rod: Stainless Steel
• Piston Rod Bushing: Steel with a PVDF + PTFE Bearing Surface
• Cylinder Body: Anodized Aluminum
• End Covers: Aluminum
• Tie-rods: Surface Treated Steel
• Nut: Surface Treated Steel
• Wiper: Polyurethane
