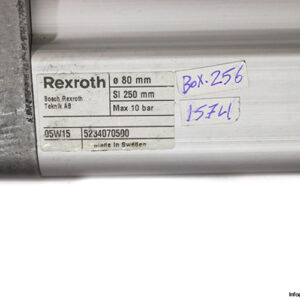

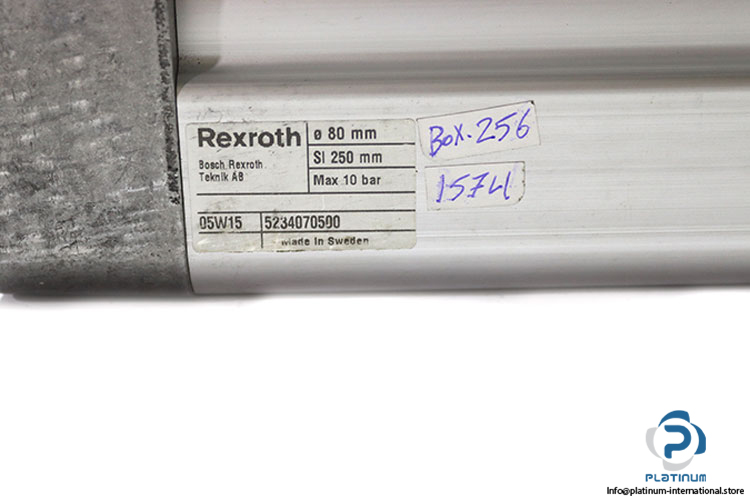

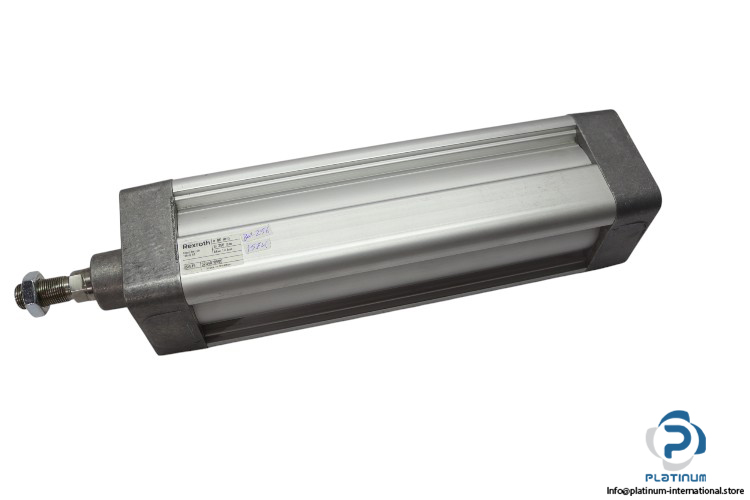

REXROTH 5234070500 TIE ROD CYLINDER

Engineered for industrial pneumatic systems, this Rexroth tie rod cylinder from Series 253 delivers precise linear motion and durability under high-pressure conditions.

Manufacturer: Rexroth
Type: Tie Rod Cylinder
MNR: 5234070500
Ref. No.: 05W15
Series: 253

Technical Information

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 250 mm
• Bore x Stroke: 80 x 250 mm
• Rod Diameter: 25 mm
• Frame Dimensions: 99 x 380 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Range: -20 to +70° C

Material Specifications

• Piston Rod: Stainless Steel
• Piston Rod Bushing: Steel with a PVDF + PTFE Bearing Surface
• Cylinder Body: Anodized Aluminum
• End Covers: Aluminum
• Tie-rods: Surface Treated Steel
• Nut: Surface Treated Steel
• Wiper: Polyurethane
