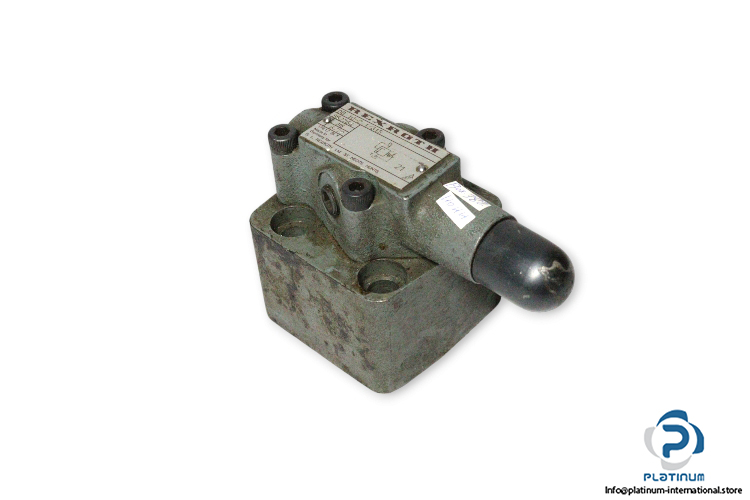

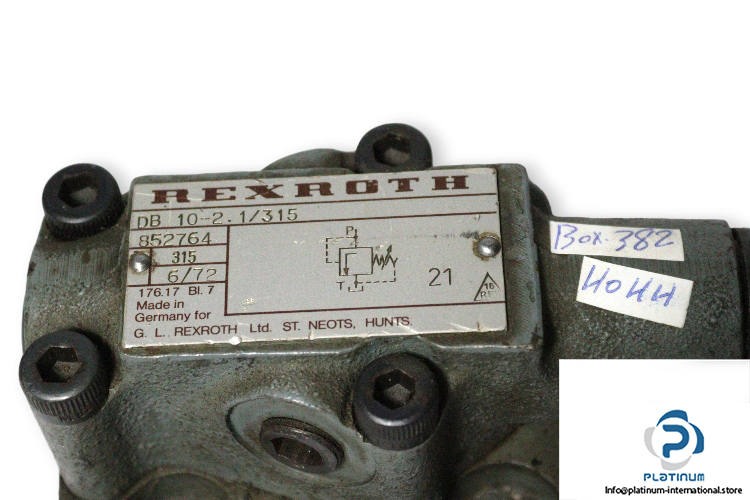

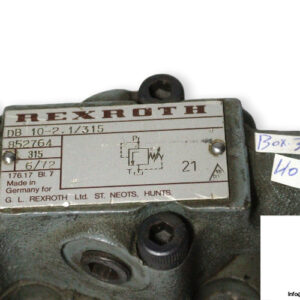

Manufacturer: REXROTH
Type: Pressure Relief Valve Pilot Operated
Model: DB 10-2.1/315
Size: 10
Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap
Pressure Setting: 315 bar
Maximum Operating Pressure at Ports P,X: 350 bar
Maximum Operating Pressure at Port T: 315 bar
Maximum Backpressure at Port Y: 315 bar
Maximum Flow Rate: 250 l/min
Hydraulic Fluid Temperature Range: –30 …. +80 oC
Viscosity Range: 10 … 800 mm2/s
Connection: Sup-plate
