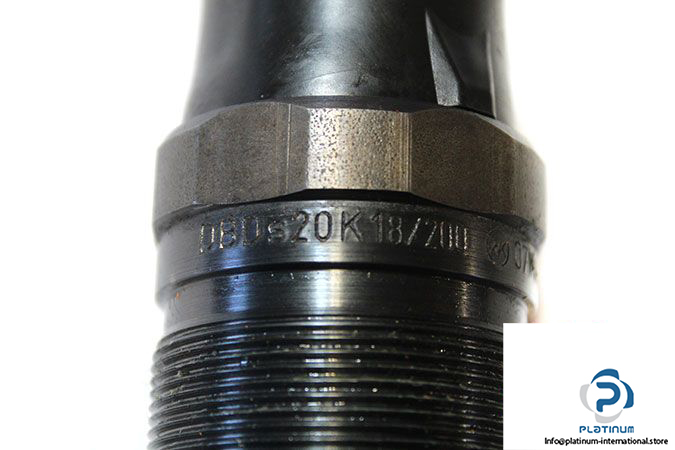

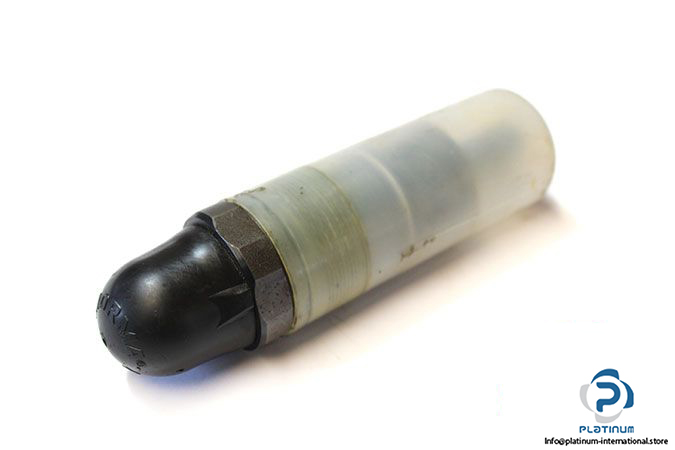

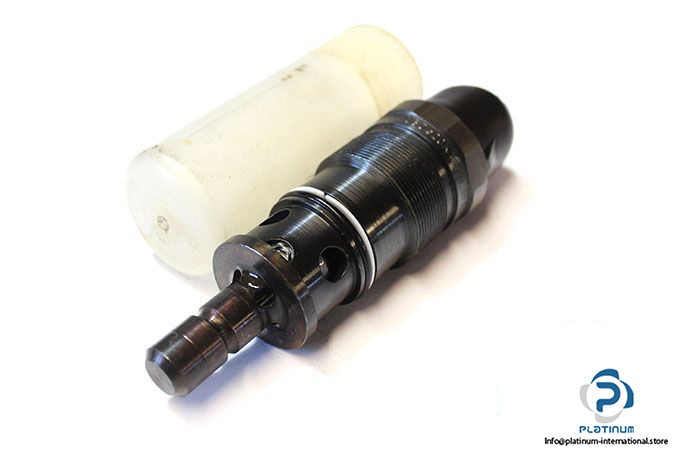

REXROTH DBDS20K18200 DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 20 K18/200 is a high-performance direct operated pressure relief valve designed for precise pressure control in hydraulic systems. Built for durability and reliability, it ensures system safety and optimal operation under varying conditions.
Manufacturer: Rexroth
Type: Direct Operated Pressure Relief Valve
Model: DBDS 20 K18/200
Technical Information
- Fluid: Oil
- Size: NG20
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 200 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 250 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1
