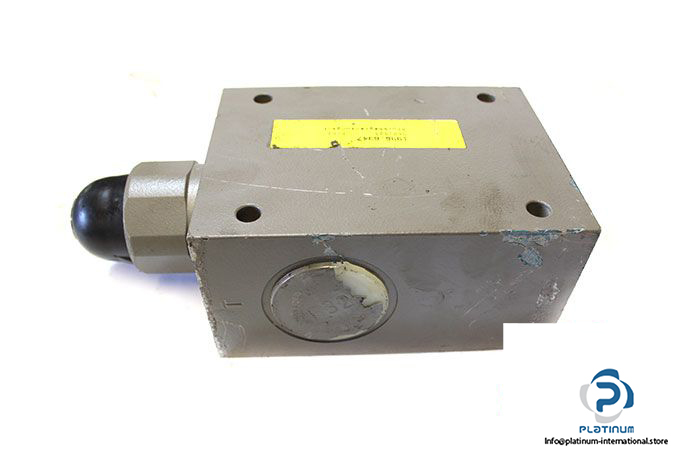

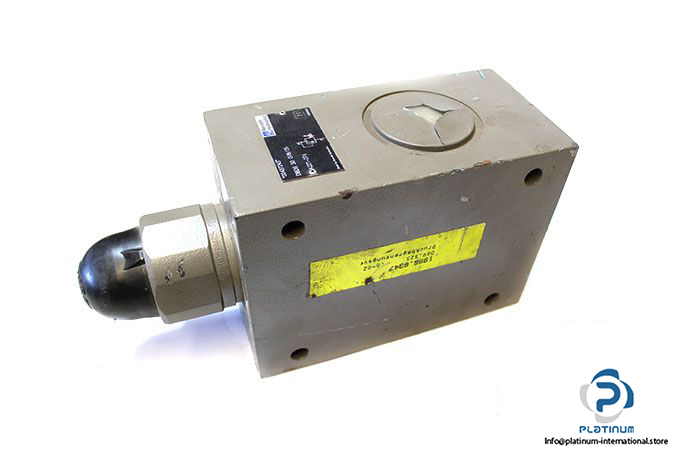

REXROTH DBDS30G1825 DIRECT OPERATED PRESSURE RELIEF VALVE

The Rexroth DBDS 30 G18/25 is a high-performance direct operated pressure relief valve designed for hydraulic systems using oil as a fluid medium. Built for reliability and precise control, it ensures safe pressure regulation in demanding industrial applications.

Manufacturer: REXROTH
Type: Direct Operated Pressure Relief Valve

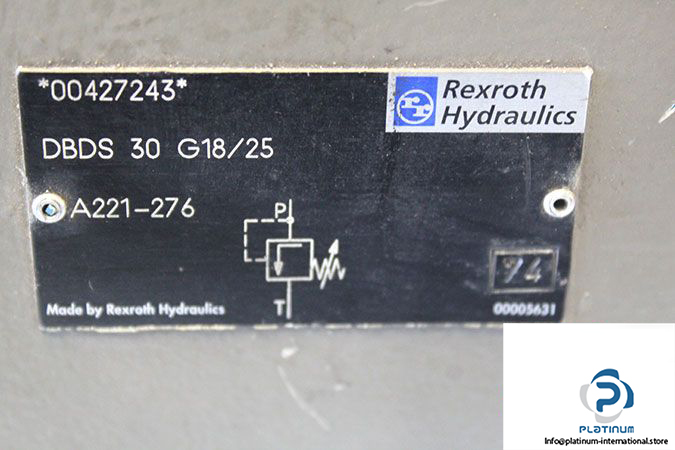

Model: DBDS 30 G18/25
MNR: R900427243

Technical Information

• Fluid: Oil
• Size: NG30
• Adjustment Type: Bushing with hexagon and protective cap
• Pressure Setting: 25 bar
• Maximum Operating Pressure at Input “ Standard: 315 bar
• Maximum Operating Pressure at Output: 315 bar
• Maximum Flow Rate: 350 l/min
• Ambient Temperature Range: -30 / 80 °C
• Viscosity Range: 10 / 800 mm²/s
• Connection: Threaded
