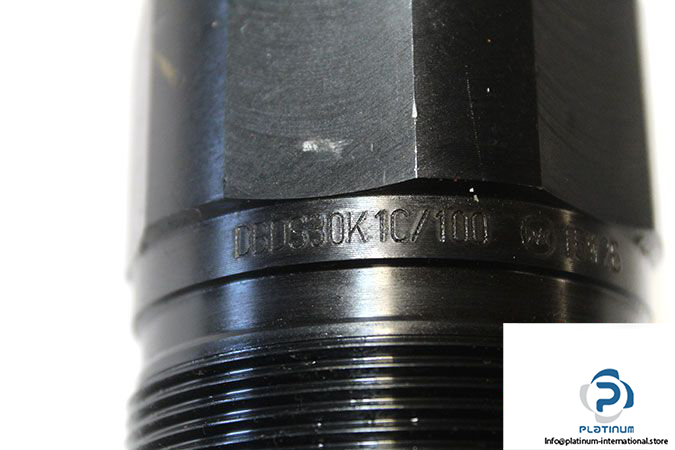

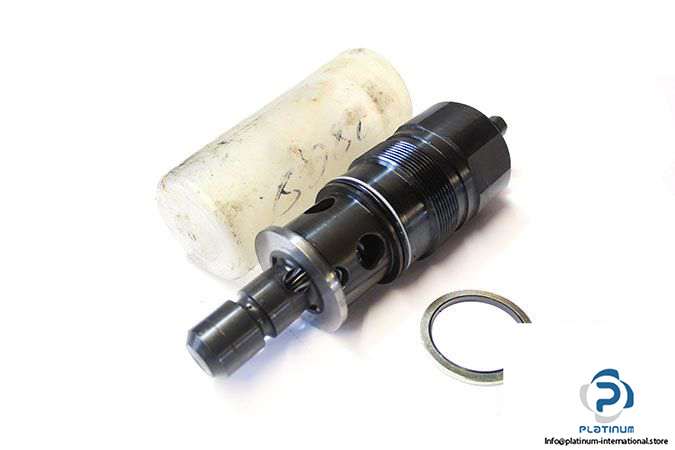

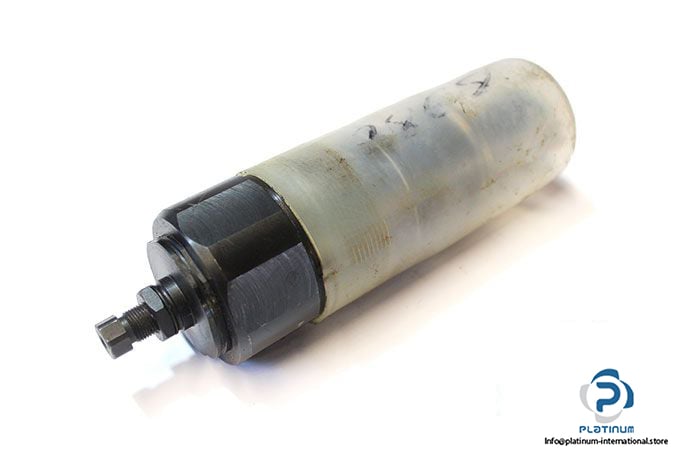

REXROTH DBDS30K1C100 DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 30 K1C/100 is a high-performance direct operated pressure relief valve designed for reliable pressure regulation in hydraulic systems. Built for durability, it handles high operating pressures and flow rates, making it ideal for demanding industrial applications.
Manufacturer: REXROTH
Type: Direct Operated Pressure Relief Valve
Model: DBDS 30 K1C/100
Technical Information
- Fluid: Oil
- Size: NG30
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 100 bar
- Maximum Operating Pressure at Input “ Standard: 315 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 350 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1 1/2
