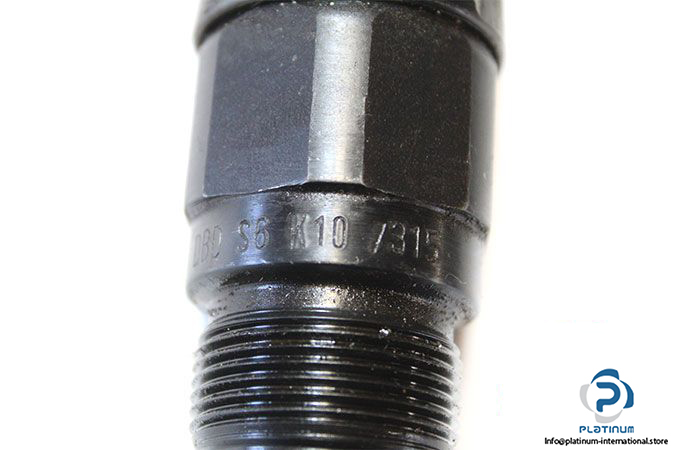

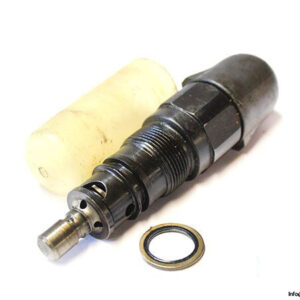

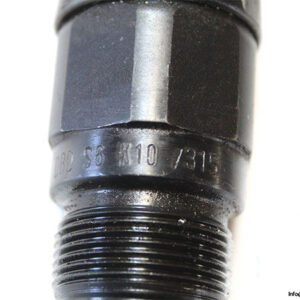

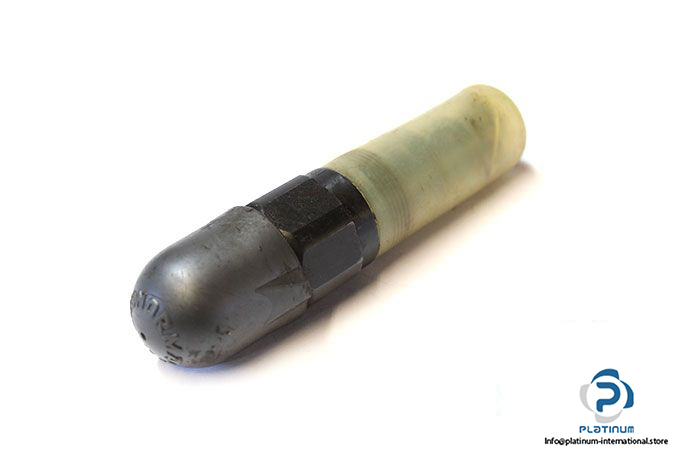

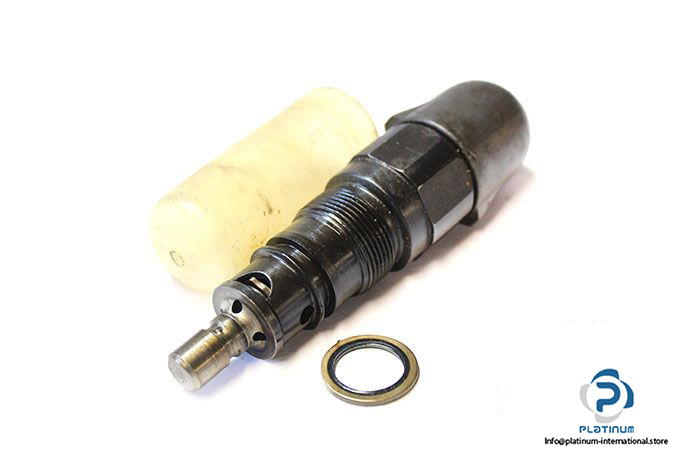

REXROTH DBDS6K10315 DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 6 K10/315 is a high-performance direct operated pressure relief valve, engineered for precise and reliable pressure control in hydraulic systems. Built for durability and consistent operation, it is suitable for demanding industrial applications using oil-based fluids.
Manufacturer: REXROTH
Type: Direct Operated Pressure Relief Valve
Model: DBDS 6 K10/315
Technical Information
- Fluid: Oil
- Size: NG6
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 315 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 50 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1/4
