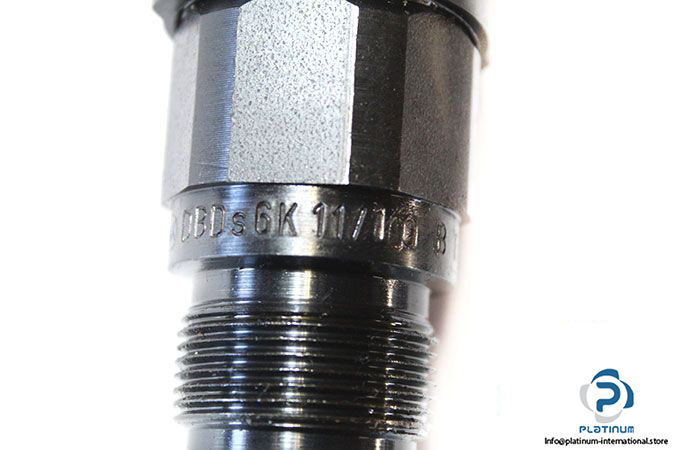

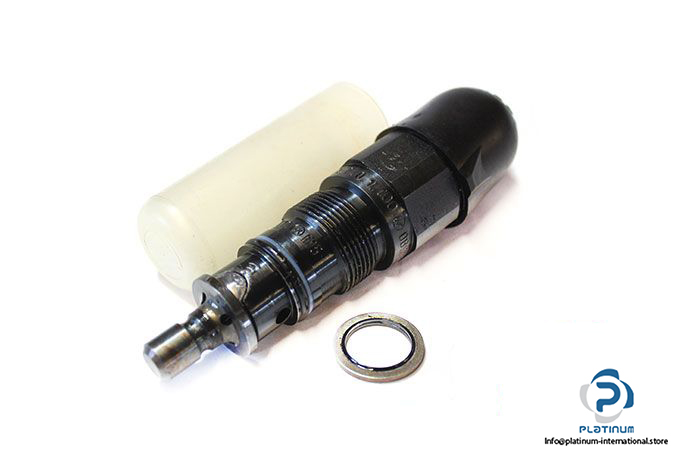

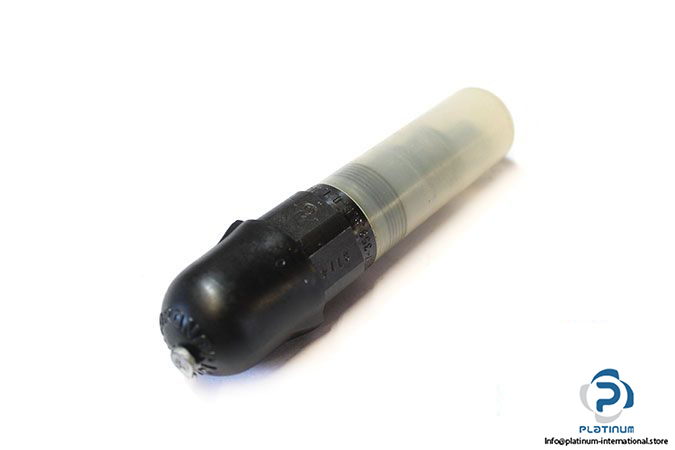

REXROTH DBDS6K11100B DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 6 K11/100B is a high-performance direct operated pressure relief valve designed for precise hydraulic system pressure control. Built for durability and reliability, it ensures safe operation in demanding industrial applications.
Manufacturer: Rexroth
Type: Direct Operated Pressure Relief Valve
Model: DBDS 6 K11/100B
Technical Information
- Fluid: Oil
- Size: NG6
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 100 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 50 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1/4
