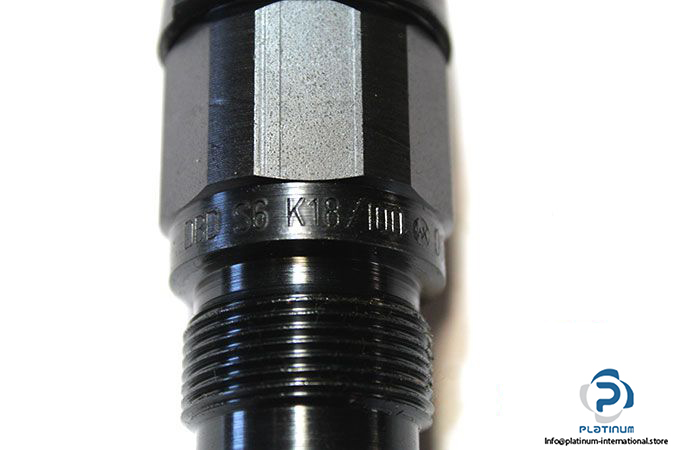

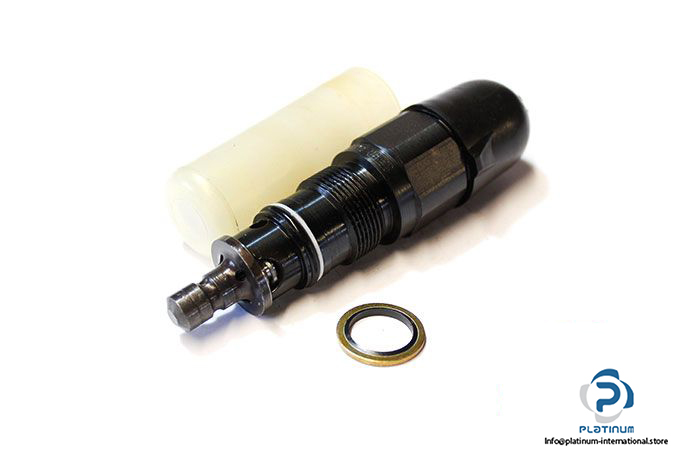

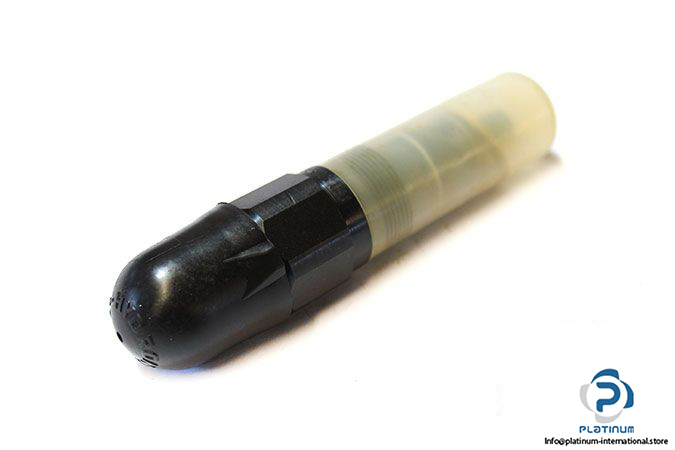

REXROTH DBDS6K18200 DIRECT OPERATED PRESSURE RELIEF VALVE
The Rexroth DBDS 6 K18/200 is a high-performance direct operated pressure relief valve designed for reliable operation in hydraulic systems. Built with precision engineering, it offers stable pressure control and protection for system components.
Manufacturer: REXROTH
Type: Direct Operated Pressure Relief Valve
Model: DBDS 6 K18/200
Technical Information
- Fluid: Oil
- Size: NG6
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Pressure Setting: 100 bar
- Maximum Operating Pressure at Input “ Standard: 400 bar
- Maximum Operating Pressure at Output: 315 bar
- Maximum Flow Rate: 50 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: G1/4
