REXROTH HYDRONORMA DBW10B2423156AG24NZ4 PRESSURE RELIEF VALVE

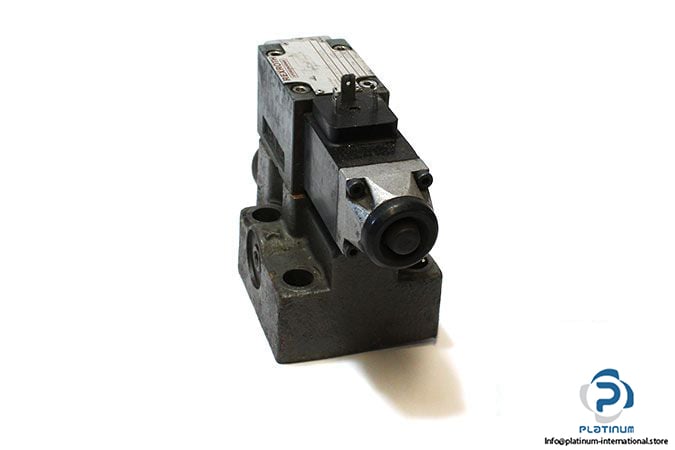

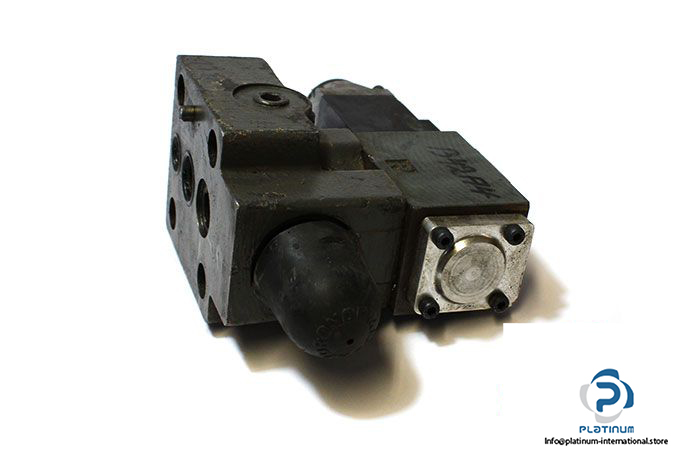

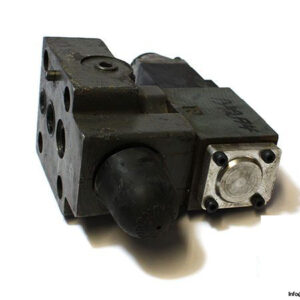

The Rexroth Hydronorma DBW 10 B2-42/315-6AG24NZ4 is a pilot-operated pressure relief valve designed for hydraulic systems requiring stable pressure regulation and high flow rates. It includes a Hydronorma GU35-4-A 139 solenoid coil for responsive electrical control.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Pressure Relief Valve

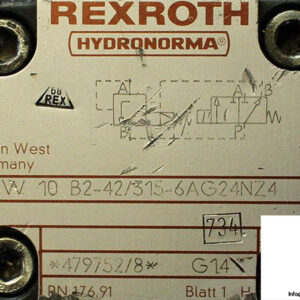

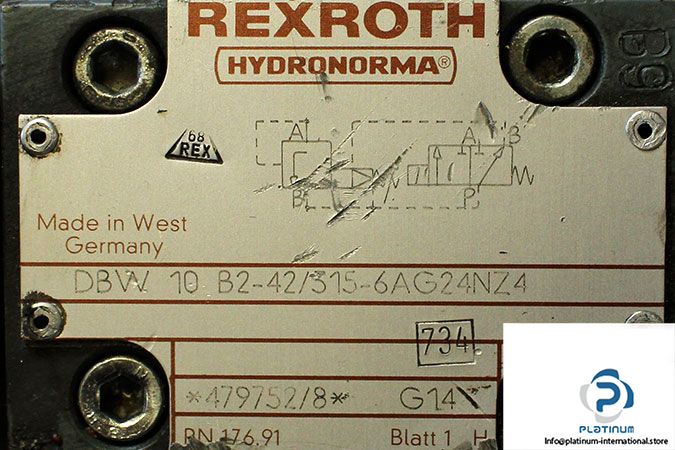

Model: DBW 10 B2-42/315-6AG24NZ4
Part No.: 479752/8
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Element: Sleeve with Hexagon and Protective Cap
- Pressure Setting: 315 bar
- Max Operating Pressure at Ports P, X: 350 bar
- Max Operating Pressure at Port T: 315 bar
- Max Backpressure at Ports Y, T: 210 bar (DC solenoid), 160 bar (AC solenoid)
- Max Flow Rate: 250 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate

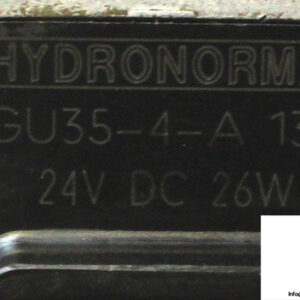

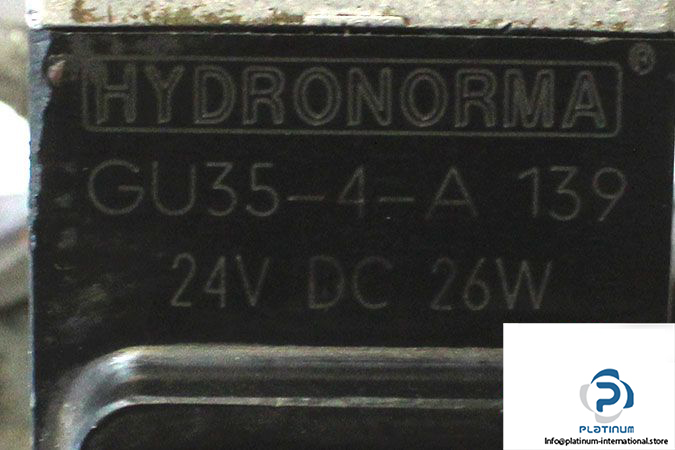

Solenoid Coil Attachment
- Manufacturer: Hydronorma
- Type: Solenoid Coil
- Model: GU35-4-A 139
- Supply Voltage: 24 V DC
- Power Consumption: 26 W
