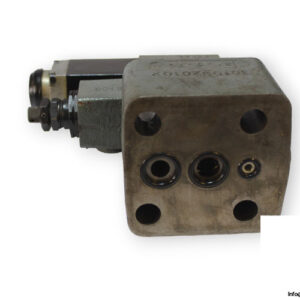

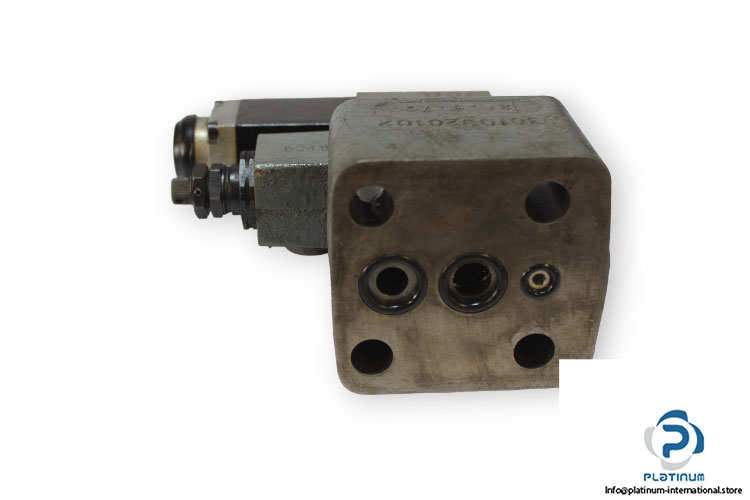

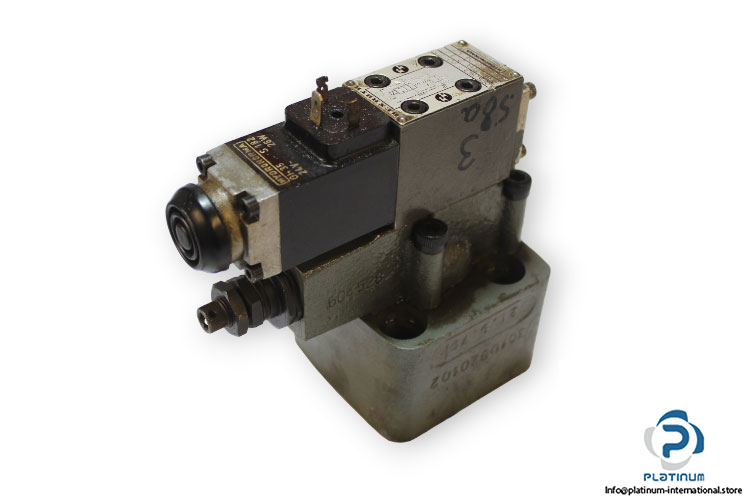

REXROTH DBW10B2.1/315UG24NZ PRESSURE RELIEF VALVE PILOT OPERATED
The Rexroth DBW10B2.1/315UG24NZ is a high-performance pilot operated pressure relief valve, engineered for precise pressure regulation in hydraulic systems. Designed with a sleeve and protective cap for easy pressure adjustment, it delivers reliability under demanding operating conditions. This valve comes equipped with a Rexroth Hydronorma GU35-4-S solenoid coil for optimal performance.
Manufacturer: Rexroth
Type: Pressure Relief Valve Pilot Operated

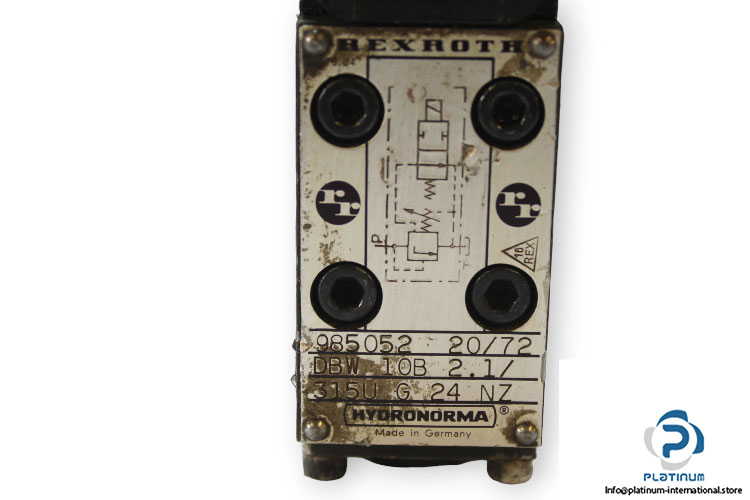

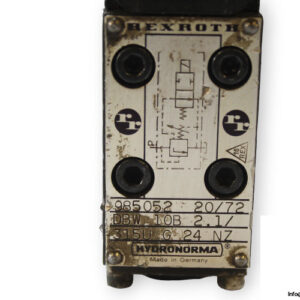

Model: DBW10B2.1/315UG24NZ
Size: 10
Technical Information
- Adjustment Element for Pressure Adjustment: Sleeve with hexagon and protective cap
- Pressure Setting: 315 bar
- Ambient Temperature Range: -30 to +80 °C
- Max Operating Pressure at Ports P, X: 350 bar
- Max Operating Pressure at Port T: 315 bar
- Max Backpressure at Ports Y, T: 210 bar with DC solenoid, 160 bar with AC solenoid
- Max Flow Rate: 250 l/min
- Hydraulic Fluid Temperature Range: -30 to +80 °C
- Viscosity Range: 10 to 800 mm²/s
- Connection: Sub-plate
- Attachment: Rexroth Hydronorma GU35-4-S 182 Solenoid Coil

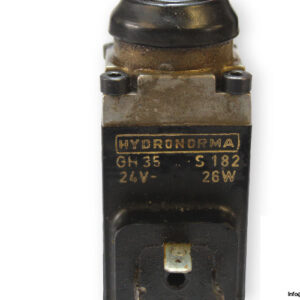

Solenoid Coil Details
- Manufacturer: Rexroth
- Type: Solenoid Coil
- Model: GU35-4-S
- Power: 26 W
- Voltage: 24 V DC
