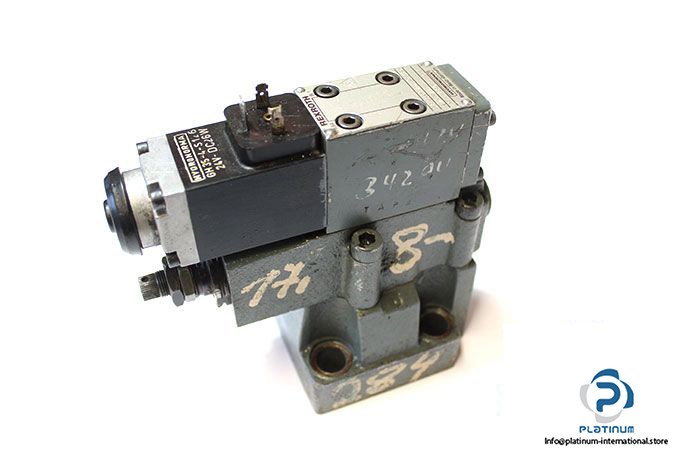

REXROTH HYDRONORMA DBW10B230315G24NZ4 DIRECT OPERATED PRESSURE RELIEF VALVE

The Rexroth DBW 10B2-30/315G24NZ4 is a high-performance direct operated pressure relief valve designed for precise pressure control in hydraulic systems. Built for durability and reliability, it offers stable operation under demanding conditions, making it suitable for a wide range of industrial applications.

Manufacturer: Rexroth Hydronorma
Type: Direct Operated Pressure Relief Valve

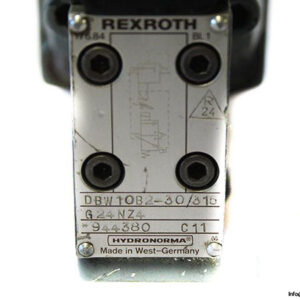

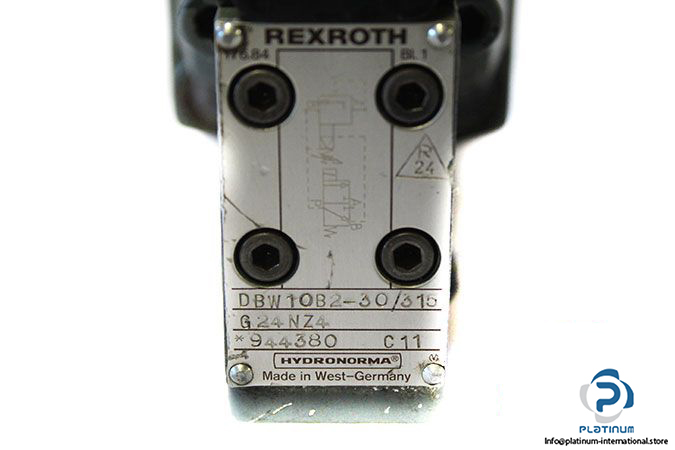

Model: DBW 10B2-30/315G24NZ4
Part No.: 944380

Technical Information

• Fluid: Oil
• Size: NG10
• Adjustment Element: Sleeve with Hexagon and Protective Cap
• Pressure Setting: 315 bar
• Maximum Operating Pressure at Ports P, X: 350 bar
• Maximum Operating Pressure at Port T: 315 bar
• Maximum Backpressure at Ports Y, T: 210 bar (DC solenoid) / 160 bar (AC solenoid)
• Maximum Flow Rate: 250 l/min
• Viscosity Range: 10 / 800 mm²/s

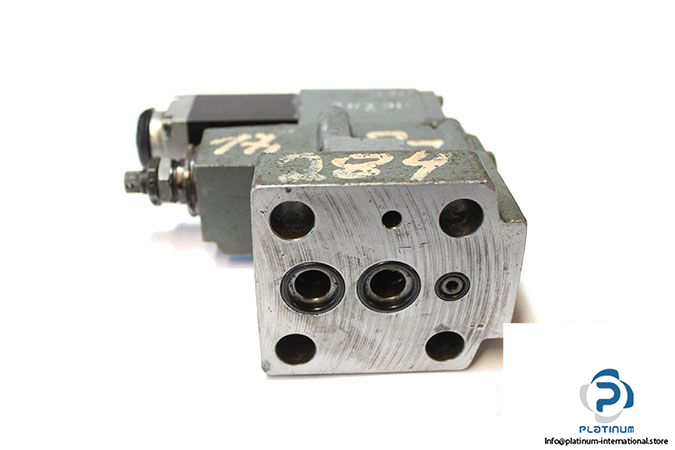

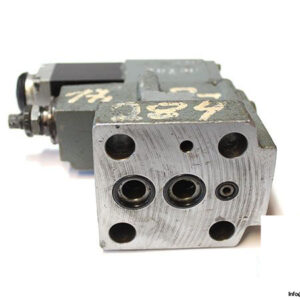

• Connection: Sub-plate
• Ambient Temperature: -30 / 80 °C

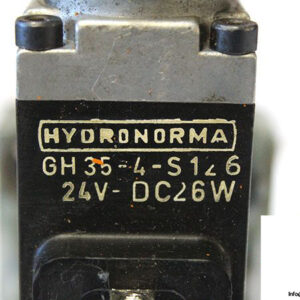

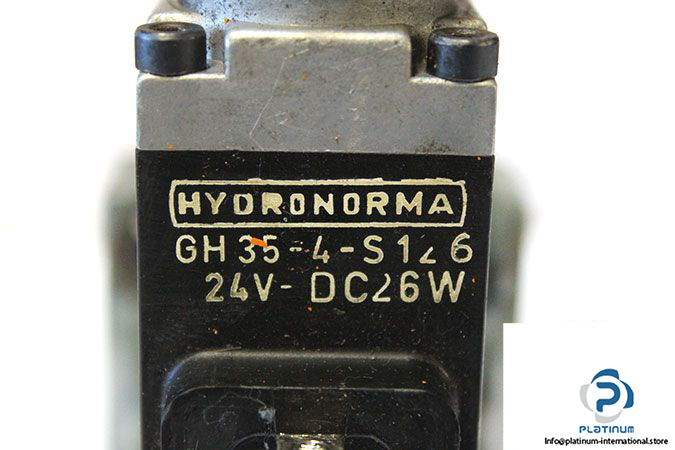

Attachment

Manufacturer: Hydronorma
Type: Solenoid Coil
Model: GU35-4-S

• Supply Voltage: 24 V DC
• Power Consumption: 26 W
