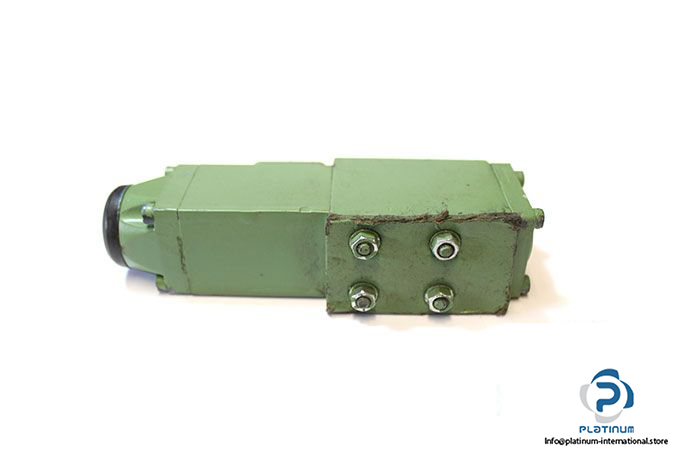

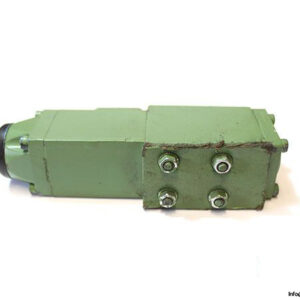

Name: MANNESMANN REXROTH DBW 20B2-31/315UG24NZ4 S031 PILOT OPERATED PRESSURE RELIEF VALVE
SKU: 989238
Availability: InStock

MANNESMANN REXROTH DBW 20B2-31/315UG24NZ4 S031 PILOT OPERATED PRESSURE RELIEF VALVE

PILOT OPERATED PRESSURE RELIEF VALVE

Rexroth NG20 pressure relief valve with sub-plate mounting, aluminum body, and max pressure of 350 bar for efficient oil-based hydraulic systems.

In stock: 1 pcs

Very low

Hurry! Only 1 left in stock.

MANNESMANN REXROTH DBW20B231315UG24NZ4S031 PRESSURE RELIEF VALVE

The DBW 20 B2-31/315UG24NZ4 S031 by Mannesmann Rexroth is a high-performance pilot operated pressure relief valve engineered for hydraulic systems requiring stable pressure control and high flow capacity. Built with durable materials and optimized for oil-based fluids, this NG20 valve is a reliable solution for demanding industrial applications.

Manufacturer: MANNESMANN REXROTH
Type: Pilot Operated Pressure Relief Valve

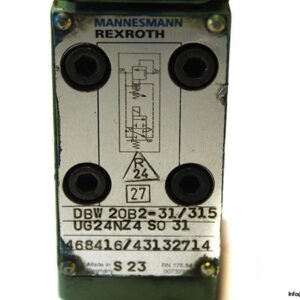

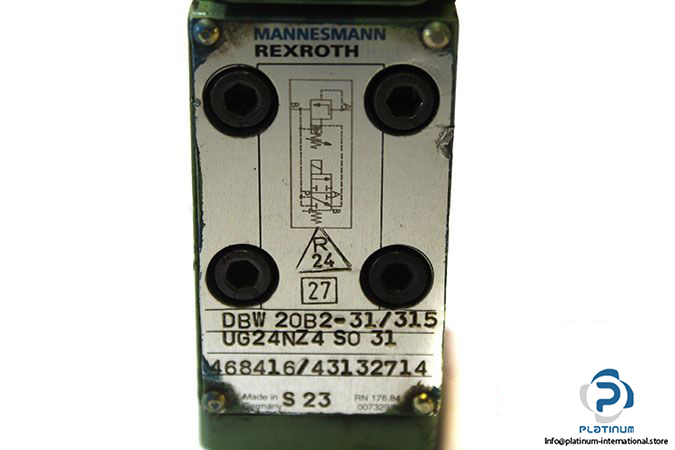

Model: DBW 20 B2-31/315UG24NZ4 S031
Part No.: 468416 / 43132714

Technical Information

Fluid: Oil
Size: NG20
Adjustment Element: Sleeve with Hexagon and Protective Cap
Maximum Operating Pressure at Ports P: 350 bar
Maximum Operating Pressure at Port T: 315 bar
Maximum Backpressure at Ports T: 210 bar (DC solenoid) / 160 bar (AC solenoid)
Maximum Flow Rate: 500 l/min
Connection: Sub-plate
Material: Aluminum
Ambient Temperature: -30 / 80 °C
