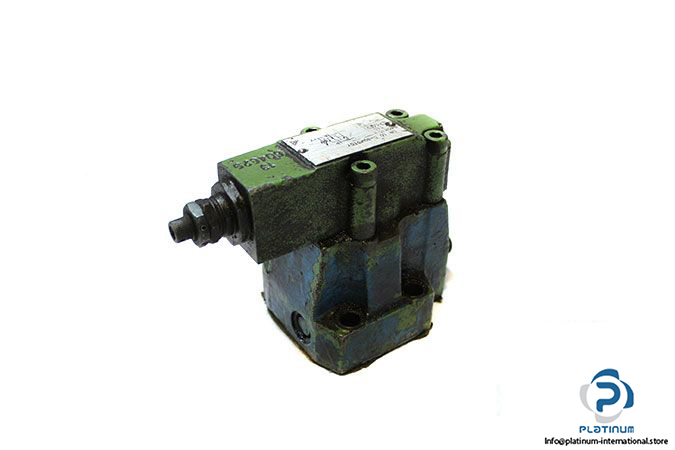

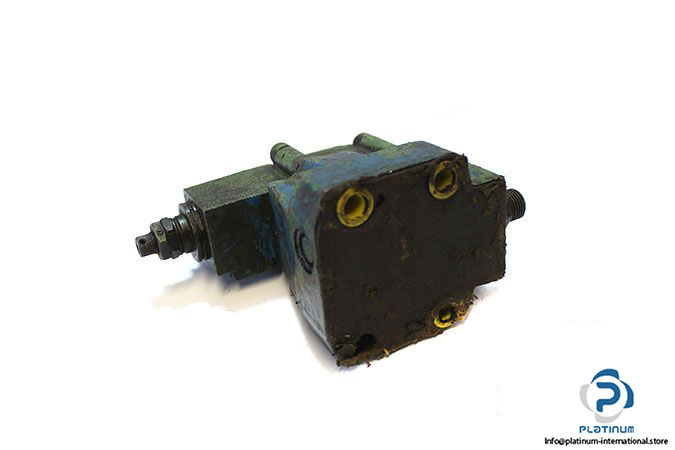

REXROTH HYDRONORMA DR10530315Y PILOT OPERATED PRESSURE REDUCING VALVE
The Rexroth Hydronorma DR 10 5-30/315Y is a high-performance pilot operated pressure reducing valve designed for precise hydraulic pressure regulation in demanding industrial systems. Engineered for reliability, it supports high flow rates and operates efficiently under extreme pressure conditions.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Reducing Valve

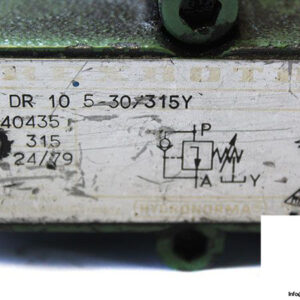

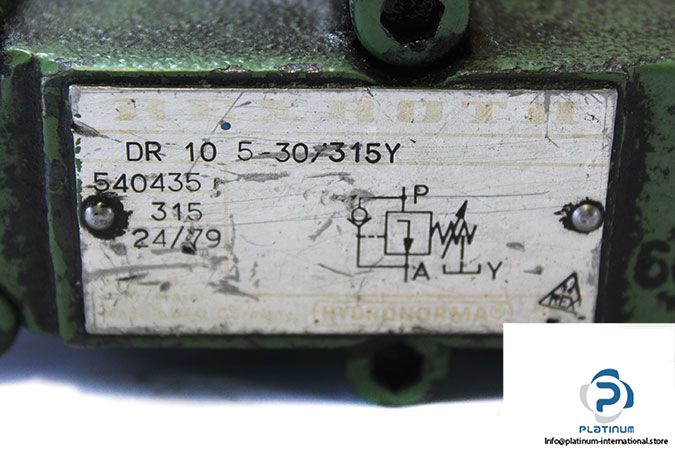

Model: DR 10 5-30/315Y
Part No.: 540435
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Element: Sleeve with Hexagon and Protective Cap
- Pressure Setting: 315 bar
- Nominal Pressure: 350 bar
- Maximum Operating Pressure at Port B: 350 bar
- Operating Pressure Range at Port A: 10 … 350 bar
- Maximum Back Pressure at Port Y: 350 bar
- Maximum Flow Rate: 150 L/min
- Ambient Temperature Range: -30 … 50 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
