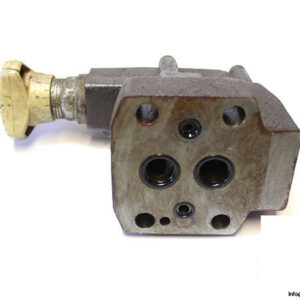

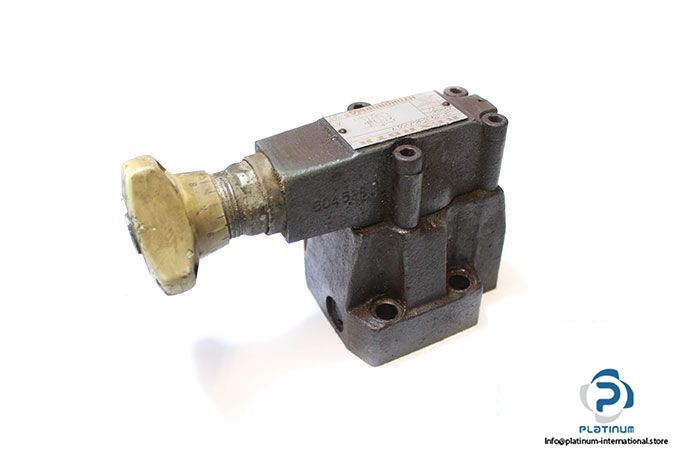

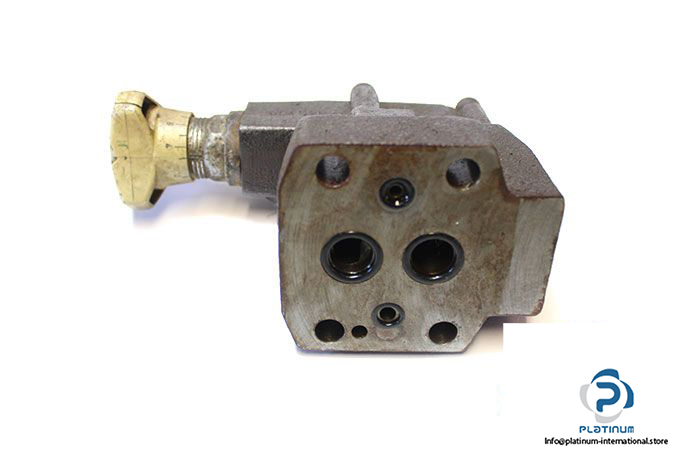

REXROTH HYDRONORMA DR10620100Y PILOT OPERATED PRESSURE REDUCING VALVE
The Rexroth Hydronorma DR 10 6-20/100 Y is a high-performance pilot operated pressure reducing valve designed for precise hydraulic pressure control in demanding industrial applications. Built to handle high operating pressures and large flow rates, this valve ensures reliable and consistent operation in oil-based hydraulic systems.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Pressure Reducing Valve

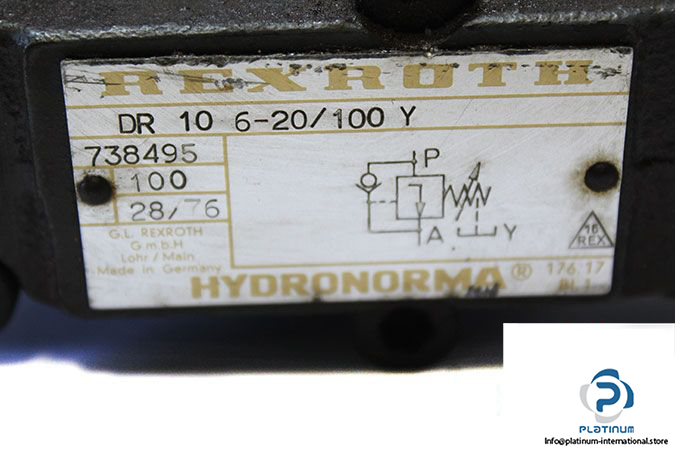

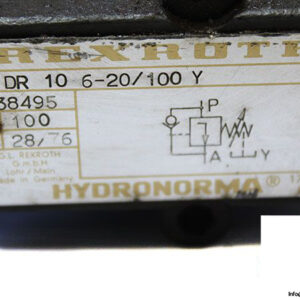

Model: DR 10 6-20/100 Y
Part No.: 738495
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Element: Sleeve with Hexagon and Protective Cap
- Pressure Setting: 315 bar
- Nominal Pressure: 350 bar
- Max Operating Pressure at Port B: 350 bar
- Operating Pressure Range at Port A: 10 to 350 bar
- Max Back Pressure at Port Y: 350 bar
- Max Flow Rate: 150 L/min
- Ambient Temperature Range: -30 to 50 °C
- Viscosity Range: 10 to 800 mm²/s
- Connection: Sub-plate
