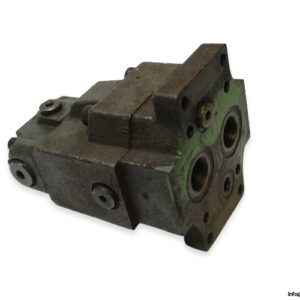

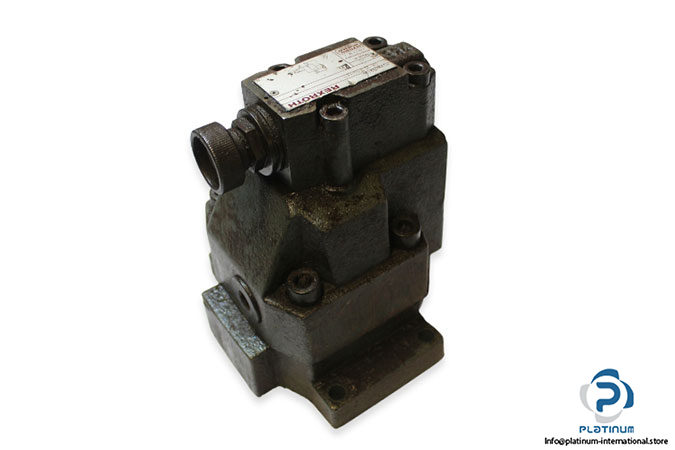

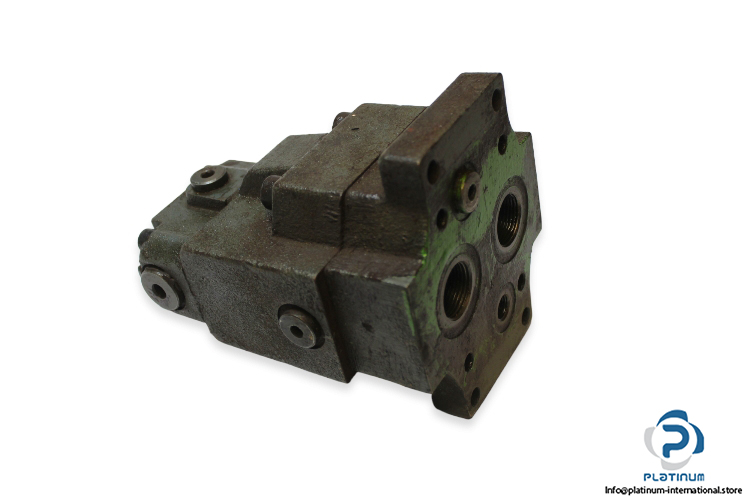

REXROTH HYDRONORMA DR20450100Y PILOT OPERATED PRESSURE REDUCING VALVE
The Rexroth Hydronorma DR 20-4-50/100Y is a high-performance pilot operated pressure reducing valve designed for precise hydraulic pressure control in demanding industrial applications. Built for durability, it offers reliable operation under high pressures and flow rates.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Pressure Reducing Valve
Model: DR 20-4-50/100Y

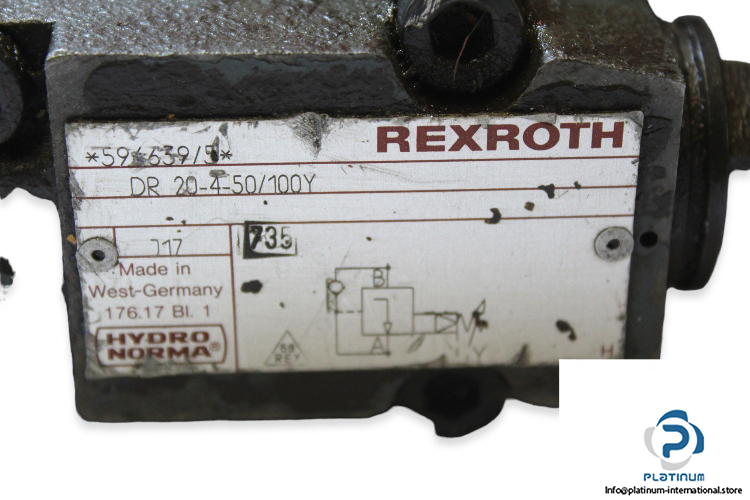

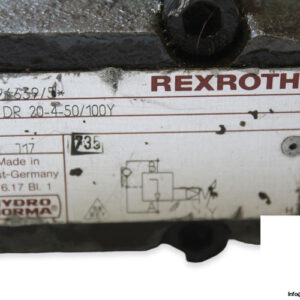

Part No.: 596639/5
Technical Information
- Fluid: Oil
- Size: NG20
- Pressure Setting: 100 bar
- Maximum Operating Pressure at port B: 350 bar
- Operating Pressure Range at port A: 10 … 350 bar
- Maximum Back Pressure at port Y: 350 bar
- Maximum Flow Rate: 300 l/min
- Ambient Temperature: -30 / 50 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-Plate
