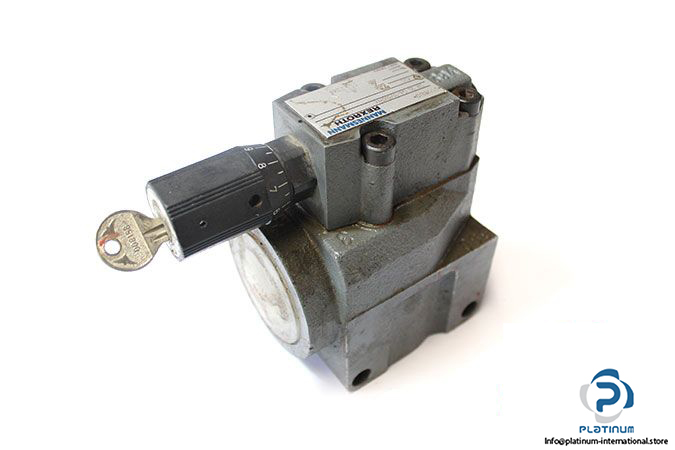

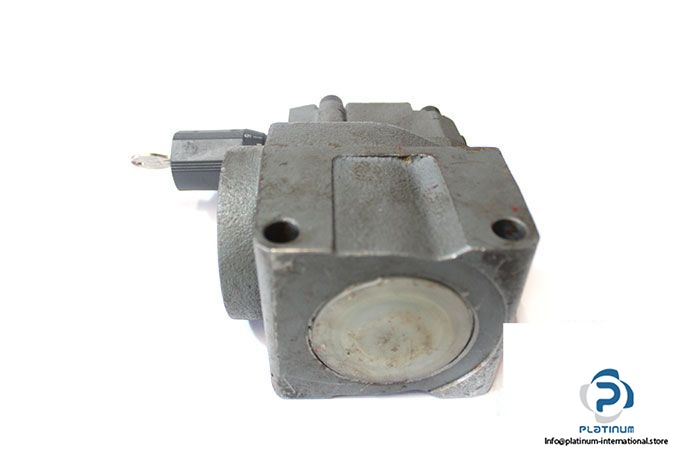

MANNESMANN REXROTH DR25G652350YM PILOT OPERATED PRESSURE REDUCING VALVE
The Mannesmann Rexroth DR 25 G6-52/350YM is a high-performance pilot operated pressure reducing valve designed for precise control of hydraulic systems. Built to handle high pressures and flow rates, this valve ensures reliable operation in demanding industrial environments.
Manufacturer: Mannesmann Rexroth
Type: Pilot Operated Pressure Reducing Valve

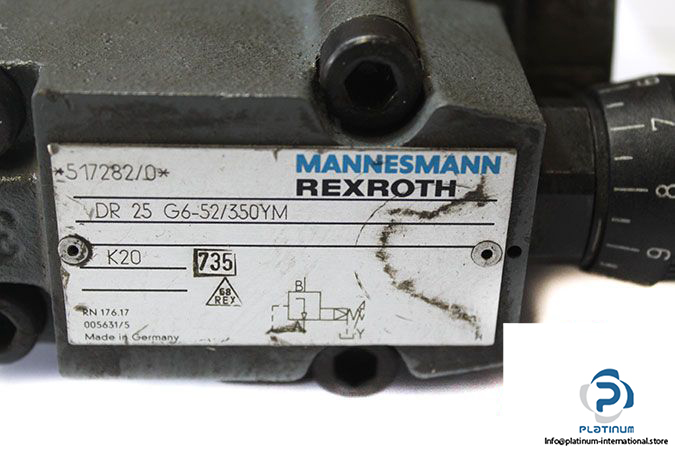

Model: DR 25 G6-52/350YM
MNR: 450964/2
Technical Information
- Fluid: Oil
- Size: NG25
- Pressure Setting: 350 bar
- Nominal Pressure: 350 bar
- Maximum Operating Pressure at Port B: 350 bar
- Operating Pressure Range at Port A: 10 to 350 bar
- Maximum Back Pressure at Port Y: 350 bar
- Maximum Flow Rate: 400 L/min
- Ambient Temperature Range: -30 / 50 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Threaded (G 1-1/4)
