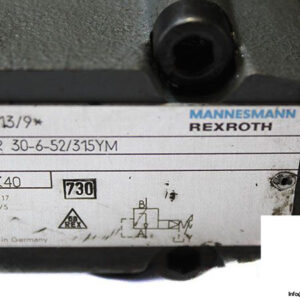

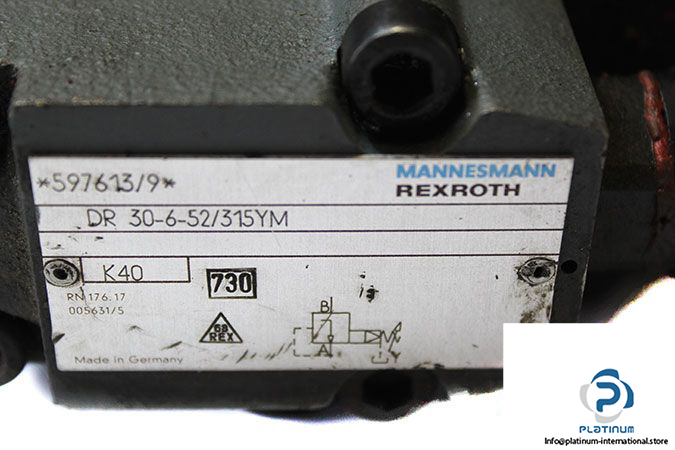

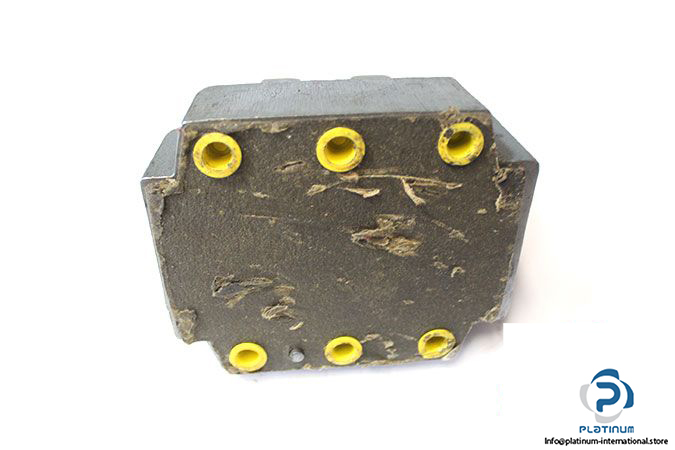

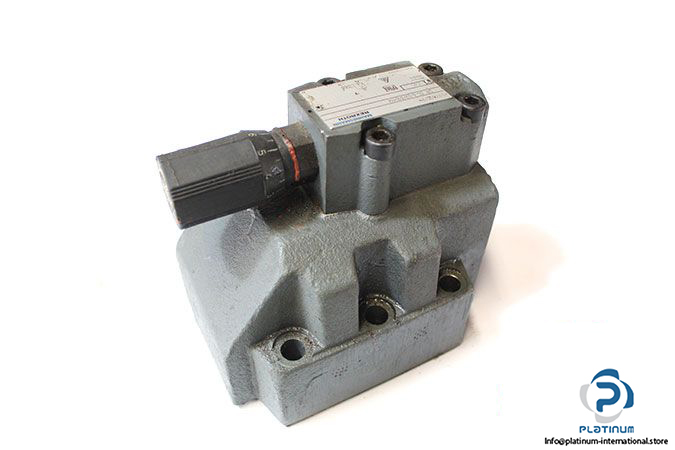

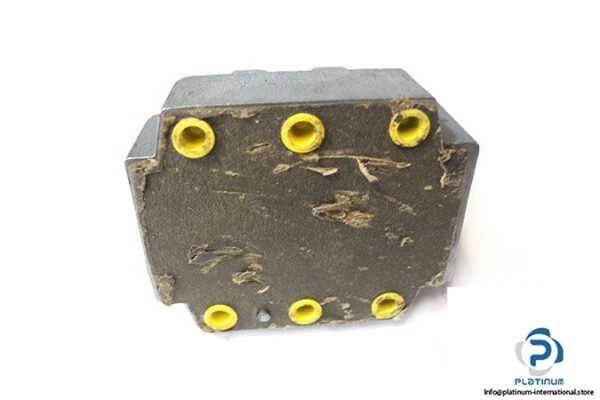

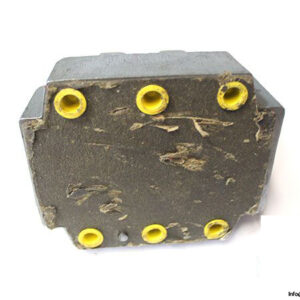

MANNESMANN REXROTH DR30652315YM PILOT OPERATED PRESSURE REDUCING VALVE
The Mannesmann Rexroth DR 30-6-52/315YM is a high-performance pilot operated pressure reducing valve designed for demanding hydraulic applications. Built for precision, durability, and consistent pressure regulation under high loads.
Manufacturer: Mannesmann Rexroth
Type: Pilot Operated Pressure Reducing Valve
Model: DR 30-6-52/315YM
MNR: 597613/9
Technical Information
- Fluid: Oil
- Size: NG30
- Pressure Setting: 315 bar
- Nominal Pressure: 350 bar
- Max Operating Pressure at Port B: 350 bar
- Operating Pressure Range at Port A: 10 … 350 bar
- Max Back Pressure at Port Y: 350 bar
- Max Flow Rate: 400 L/min
- Ambient Temperature Range: “30 / 50 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
