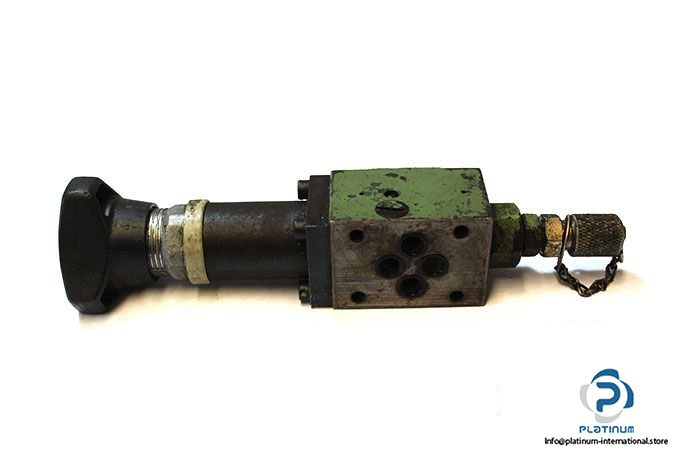

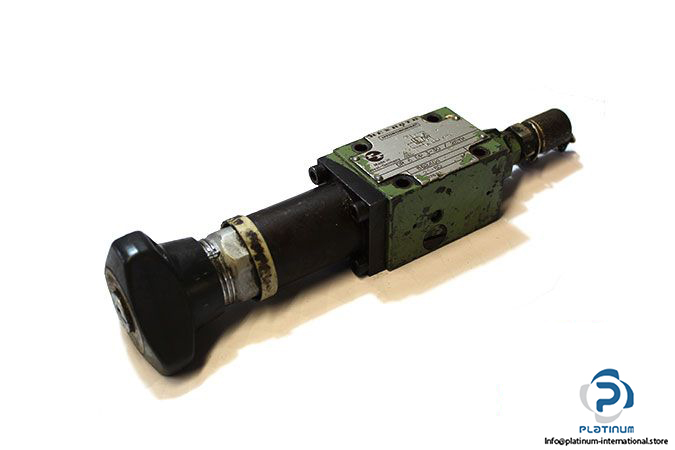

REXROTH HYDRONORMA DR6DP33025YM PRESSURE REDUCING VALVE
The DR 6 DP 3-30/25YM from REXROTH HYDRONORMA is a direct operated pressure reducing valve engineered for high-performance hydraulic systems. With sub-plate connection and adjustable pressure settings, it ensures precise and reliable control of downstream pressure across industrial applications.
Manufacturer: REXROTH HYDRONORMA
Type: Direct Operated Pressure Reducing Valve

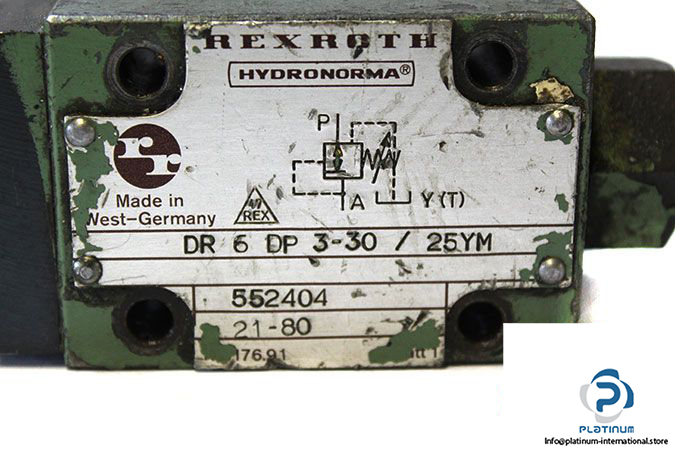

Model: DR 6 DP 3-30/25YM
Part No.: 552404
Technical Information
- Fluid: Oil
- Size: NG6
- Adjustment Element: Sleeve with hexagon and protective cap
- Pressure Setting: 25 bar
- Max Operating Pressure at Port P: 315 bar
- Max Back Pressure at Port Y: 160 bar
- Max Flow Rate: 60 l/min
- Viscosity Range: 10 / 800 mm²/s
- Ambient Temperature Range: -30 / 80 °C
- Connection: Sub-plate
