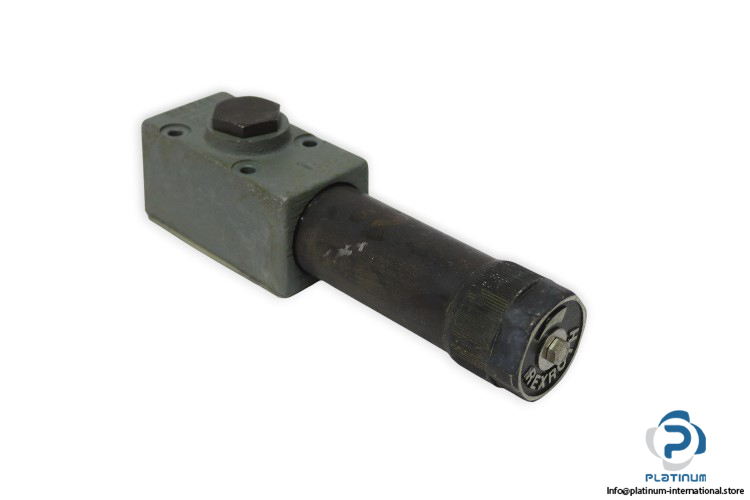

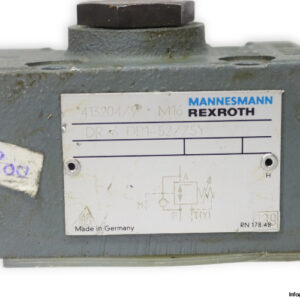

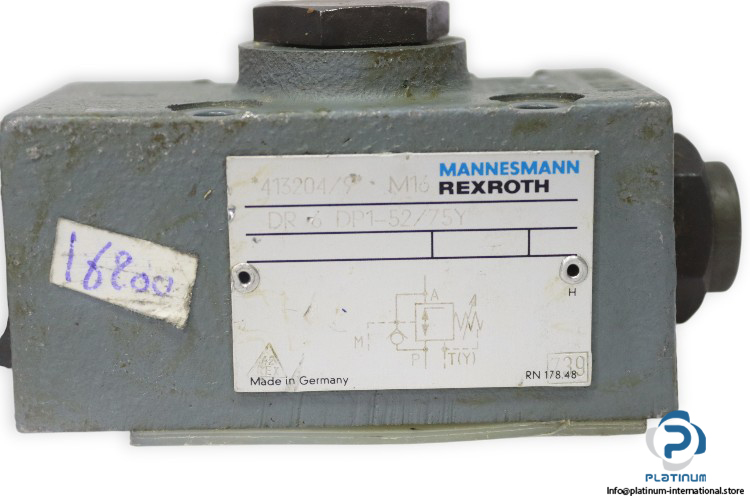

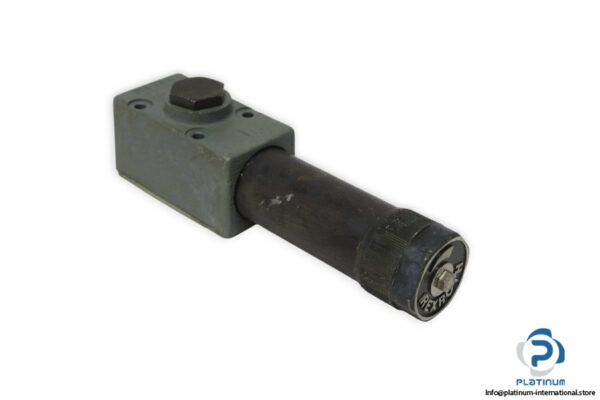

Mannesmann Rexroth DR 6 DP1-52/75Y Direct Operated Pressure Reducing Valve
The Mannesmann Rexroth DR 6 DP1-52/75Y is a high-performance direct operated pressure reducing valve designed for hydraulic systems requiring precise pressure regulation and consistent performance. Engineered for durability, it ensures stable control and smooth operation under demanding industrial conditions.
Manufacturer: Mannesmann Rexroth
Type: Direct Operated Pressure Reducing Valve
Model: DR 6 DP1-52/75Y
Ref No.: 413204/9 M16
Technical Information
- Fluid: Oil
- Size: NG6
- Maximum Secondary Pressure: 75 bar
- Adjustment Element: Rotary knob
- Maximum Operating Pressure at Port P: 315 bar
- Maximum Back Pressure at Port Y: 160 bar
- Maximum Flow Rate: 60 L/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
