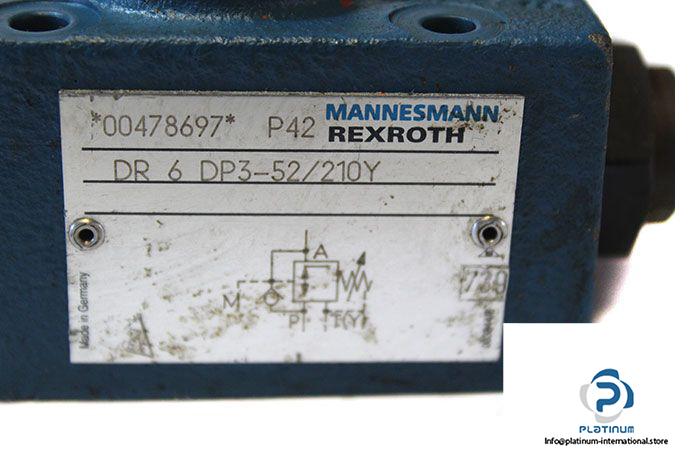

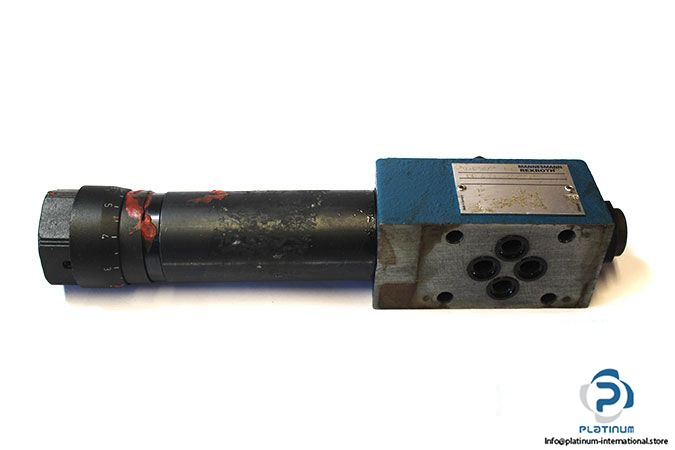

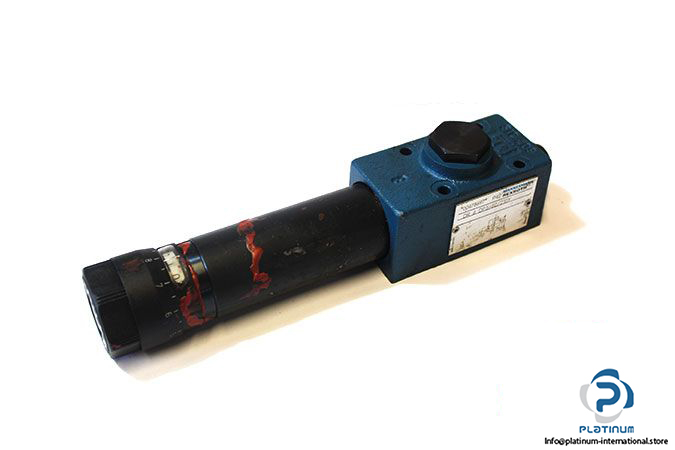

MANNESMANN REXROTH DR6DP352210Y DIRECT OPERATED PRESSURE REDUCING VALVE
The Mannesmann Rexroth DR 6 DP3-52/210Y is a high-performance direct operated pressure reducing valve engineered for precise control in hydraulic systems. Built for durability and accuracy, it is ideal for applications requiring stable pressure regulation under demanding conditions.
Manufacturer: Mannesmann Rexroth
Type: Direct Operated Pressure Reducing Valve
Model: DR 6 DP3-52/210Y
MNR: R900478697
Technical Information
- Fluid: Oil
- Size: 6
- Adjustment Element: Sleeve with Hexagon and Protective Cap
- Pressure Setting: 75 bar
- Maximum Operating Pressure at Port P: 315 bar
- Maximum Back Pressure at Port Y: 160 bar
- Maximum Flow Rate: 60 L/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
