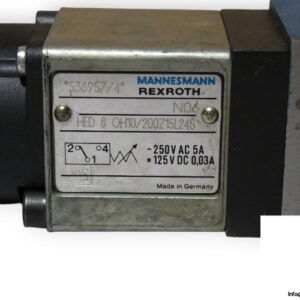

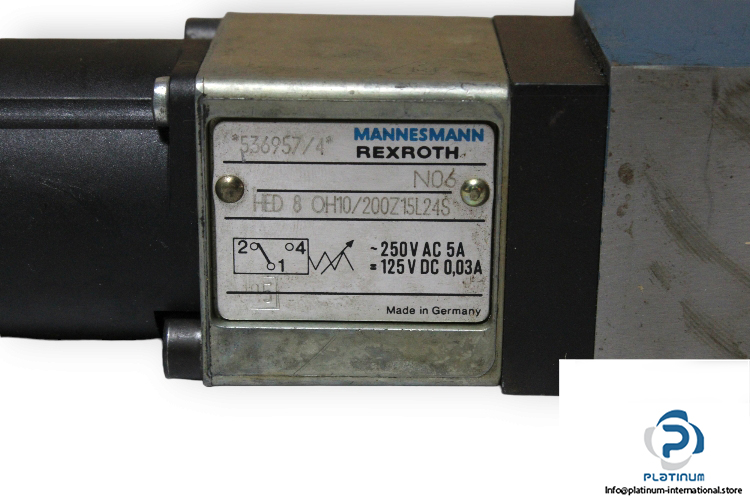

REXROTH HED8OH10200Z15L24S PRESSURE SWITCH WITH SANDWICH PLATE

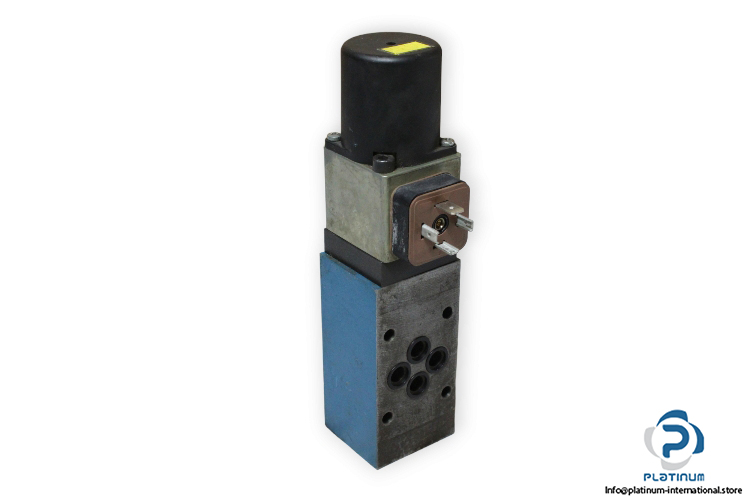

The Rexroth HED 8 OH10/200Z15L24S is a hydro-electric piston pressure switch designed for reliable pressure control in hydraulic systems. It is built for high-performance environments where durability, precision, and responsive switching are essential. This model is supplied with the compatible Rexroth HSZ 06 A608-31/M00 sandwich plate (MNR: R900536199) for streamlined integration into subplate-mounted configurations.

Manufacturer: REXROTH
Type: Hydro-Electric Piston Pressure Switch
Model: HED 8 OH10/200Z15L24S

Technical Information

• Pressure Measuring Range: 200 bar
• Electrical Connection: Single connection; with component plug
• Switching Contact: Change-Over (CO)
• Contact Voltage: 250 V AC / 125 V DC
• Contact Current: 5 A / 0.03 A
• Material: Aluminum
• Fluid Temperature Range: -30 / 80 °C

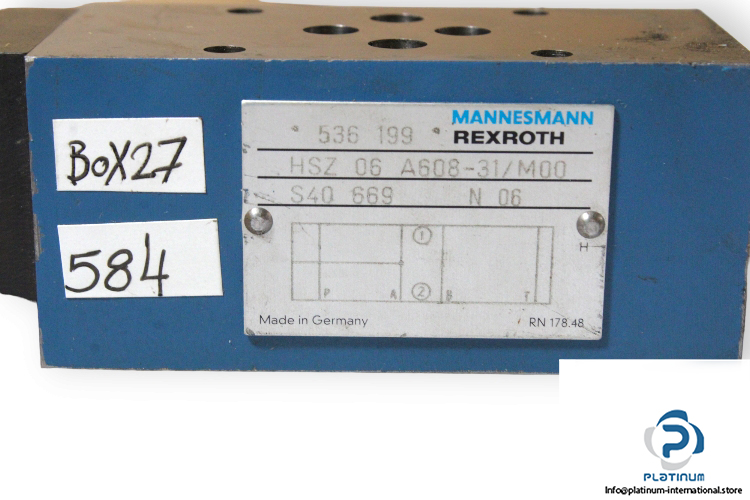

Attachment

Manufacturer: REXROTH
Type: Sandwich Plate
Model: HSZ 06 A608-31/M00
MNR: R900536199
