Rexroth Indramat MAC063B-0-JS Permanent Magnet Motor

The Rexroth Indramat MAC063B-0-JS Permanent Magnet Motor is a highly reliable motor designed for industrial automation and control systems. With high-rated torque, efficient cooling methods, and an incremental encoder for precise control, this motor is ideal for demanding applications requiring constant performance and high speed.

Manufacturer: Rexroth Indramat

Type: Permanent Magnet Motor

Model: MAC063B-0-JS-4-C/095-B-1/WI517LV/S001

Part No: 233702

Ref No: 00162743 / MAC063-33280

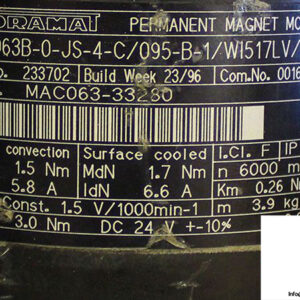

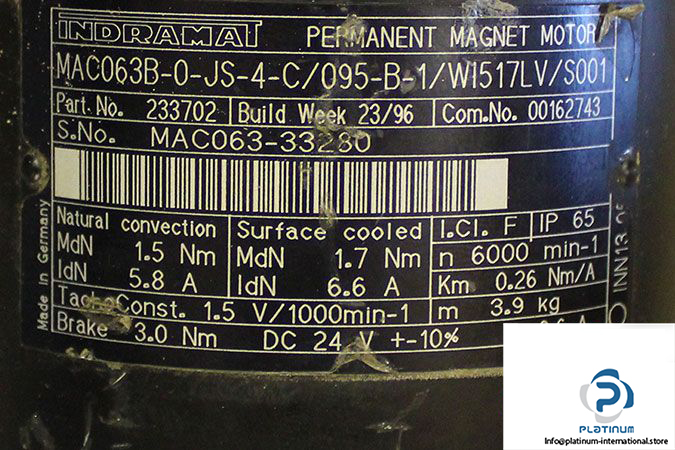

Technical Data:

• Cooling Method: Natural Convection / Surface Cooled
• Rated Current: 5.8 A (Natural Convection), 6.6 A (Surface Cooled)
• Rated Torque: 1.5 Nm (Natural Convection), 1.7 Nm (Surface Cooled)
• Motor Size: 63
• Tacho Voltage: 1.5 V/1000 min-1
• Max Speed: 6000 min-1
• Constant Torque: 0.26 Nm/A
• Voltage Brake: 24 VDC
• Current Brake: 0.6 A
• Torque Brake: 3 Nm
• Insulation Class: F
• Protection Class: IP65

Encoder Data:

• Type: Incremental Encoder with Standard Mounting
• Supply Voltage: 5 VDC
• No. of Pulses: 500
