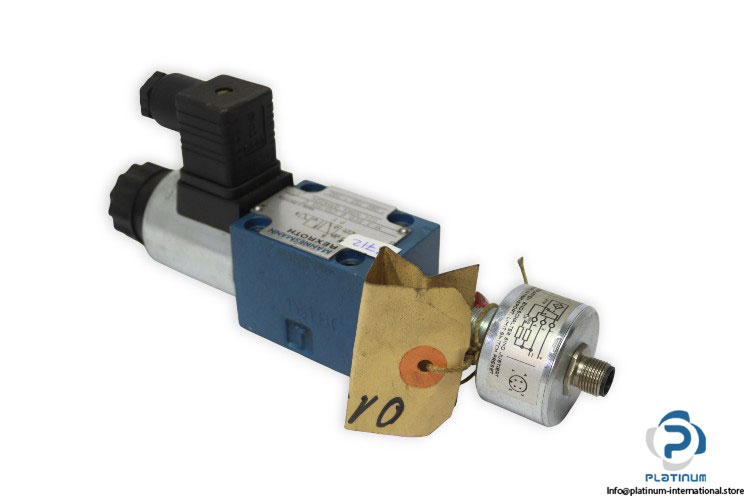

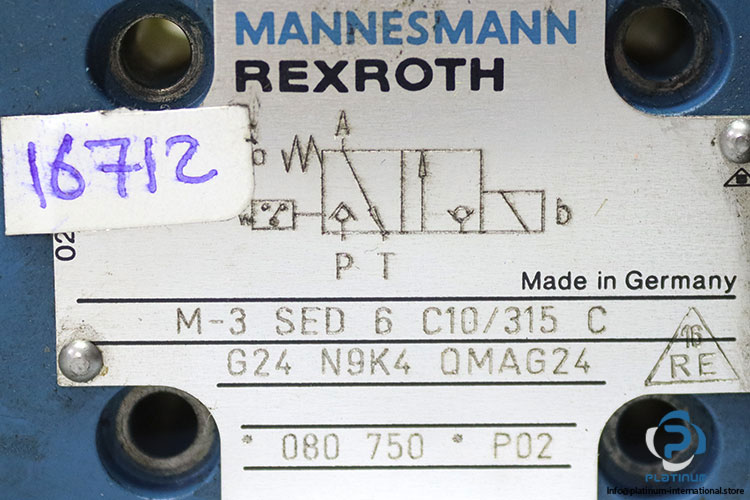

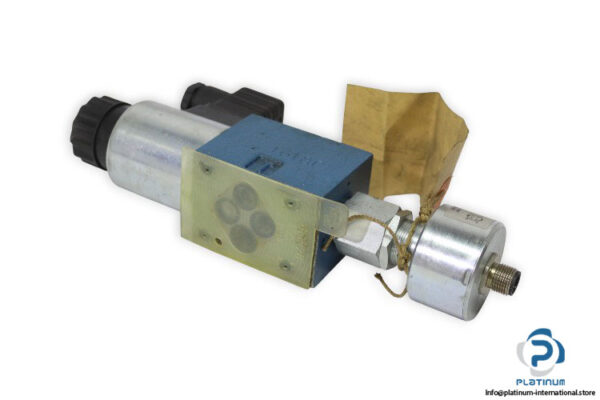

REXROTH M-3 SED 6 C10/315 C G24 N9K4 QMAG24 Directional Seat Valve
The REXROTH M-3 SED 6 C10/315 C G24 N9K4 QMAG24 is a high-performance electrically actuated directional seat valve designed for precise control of hydraulic oil flow. Built for demanding industrial applications, it offers reliable switching, high pressure capability, and stable operation.
Manufacturer: Rexroth
Type: Directional Seat Valve

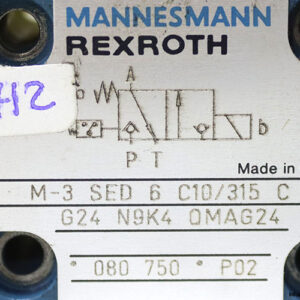

Model: M-3 SED 6 C10/315 C G24 N9K4 QMAG24
MNR: R900080750
Technical Information
- Fluid: Oil
- Size: NG6
- Type of Actuation: Electrically
- Function: 3 by 2 way valve
- Maximum Operating Pressure: 350 bar
- Maximum Flow Rate: 25 liters per minute
- Ambient Temperature Range: minus 20 to 60 degree Celsius
- Viscosity Range: 2.8 to 500 millimeters squared per second

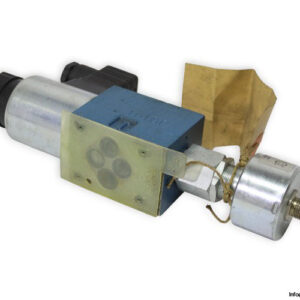

- Connection: Sub plate

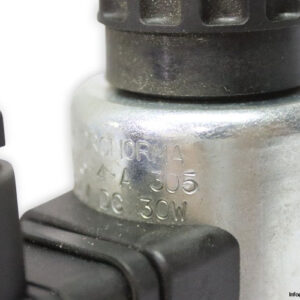

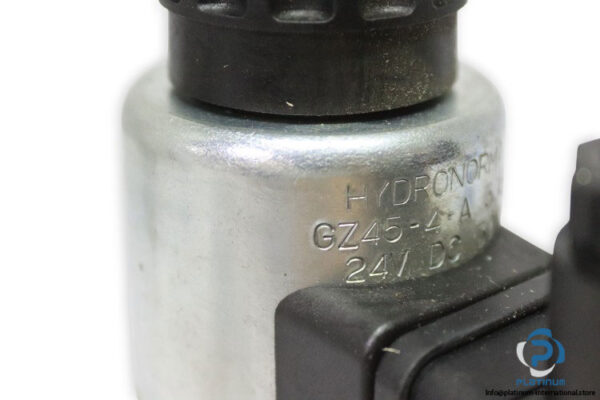

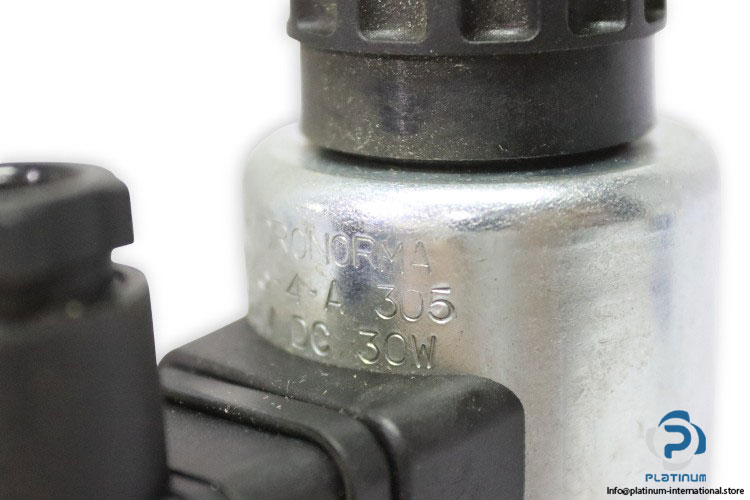

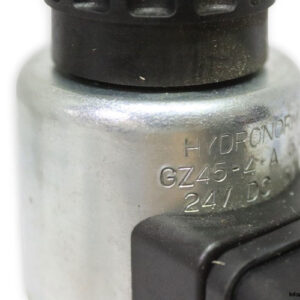

Included Solenoid Coil
- Manufacturer: Rexroth
- Type: Solenoid Coil
- Model: GZ45-4-A 305
- Voltage: 24 V DC
- Power: 30 W

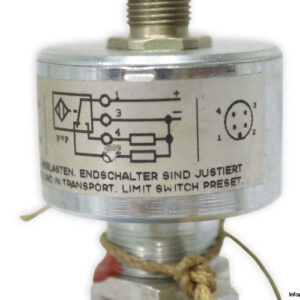

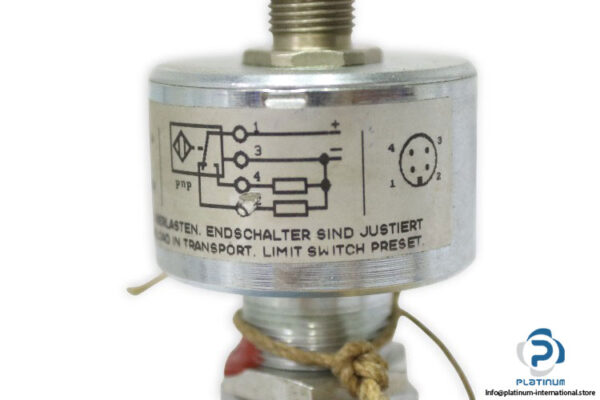

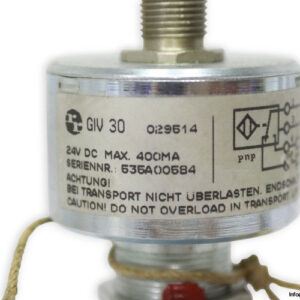

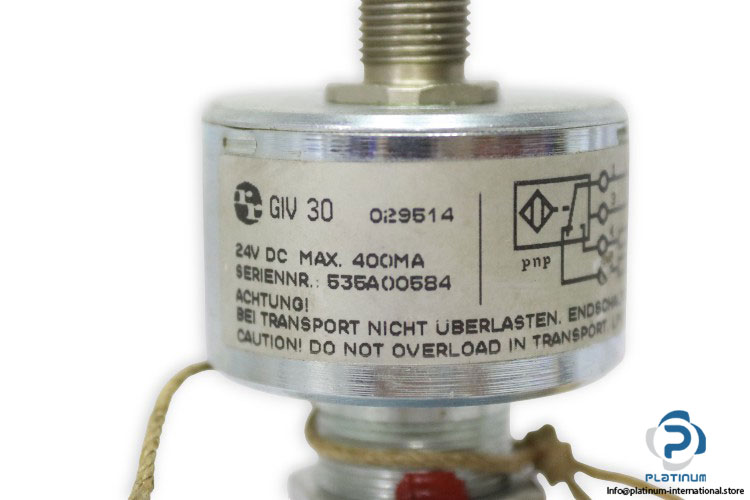

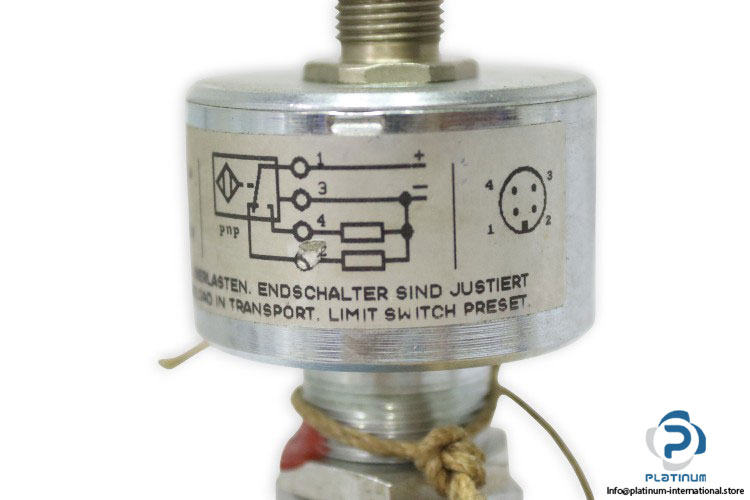

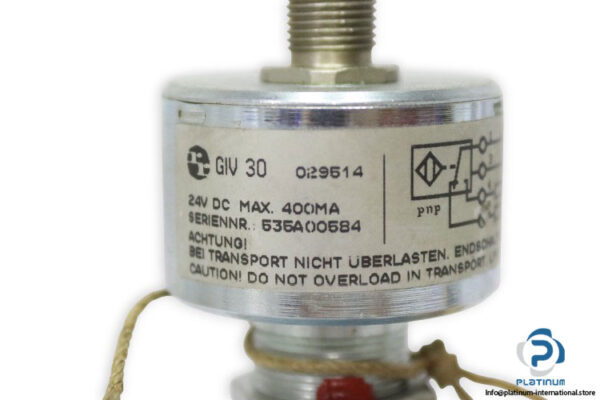

Attached Pressure Switch
- Manufacturer: Rexroth
- Type: Pressure Switch
- Model: GIV 30
- Part Number: 029514
- Serial Number: 535A00584
- Connection: G one half threaded

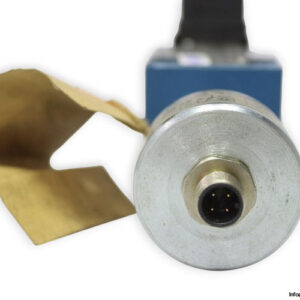

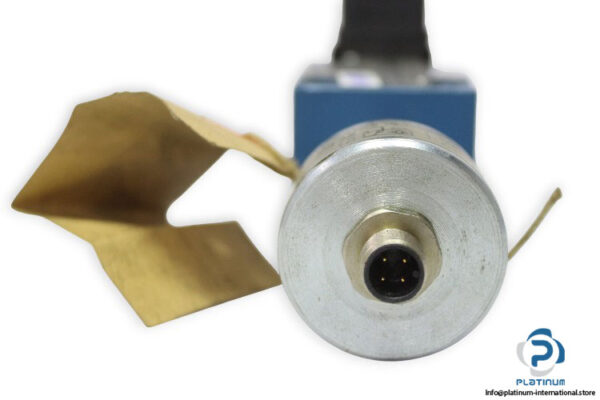

- Electrical Connection: M12 connector, 4 pin
- Supply Voltage: 24 V DC
- Current Rating: 0.4 A
