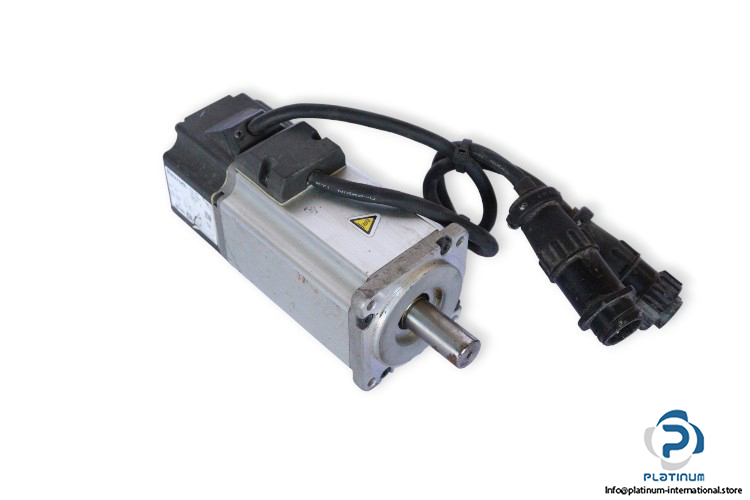

REXROTH MSM030C/0300-NN-M0-CG0 3-PHASE SYNCHRONOUS PM MOTOR
The Rexroth MSM030C/0300-NN-M0-CG0 is a precision-engineered 3-phase synchronous permanent magnet motor, designed to deliver reliable performance in demanding automation systems. With high-resolution multiturn absolute encoder and IP65 protection, it ensures accurate motion control and long operational life, making it ideal for industrial applications.

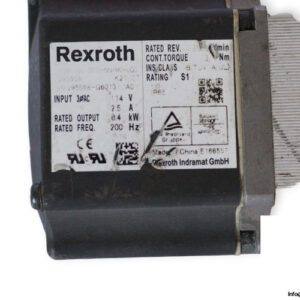

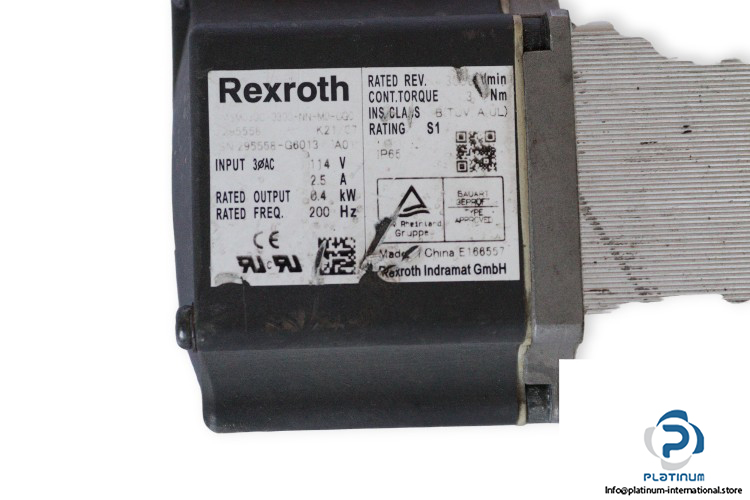

Manufacturer: REXROTH
Type: 3-Phase Synchronous PM Motor
Model: MSM030C/0300-NN-M0-CG0
MNR: R911295558
SN: A01
Technical Information
- Frame Size: 30
- Frame Length: C
- Rated Voltage Input: 114 V
- Rated Current: 2.5 A
- Rated Power: 0.4 kW
- Rated Frequency: 200 Hz
- Maximum Speed: 3000 rpm
- Continuous Torque: 1.3 Nm
- Duty: S1
- Thermal Class: B (TUV), A (UL)
- Number of Pole Pairs: 4
- Protection Class: IP65
- Encoder Type: Optical Encoder
- Encoder Design: Multiturn Absolute
- Encoder Resolution: 17 bit
- Maximum Encoder Speed: 6000 rpm
- Supply Voltage: 4.75 / 5.25 V
- Max. Current Consumption: 70 mA
- Temperature Range: -20 / +60 °C
