Manufacturer: BOSCH REXROTH

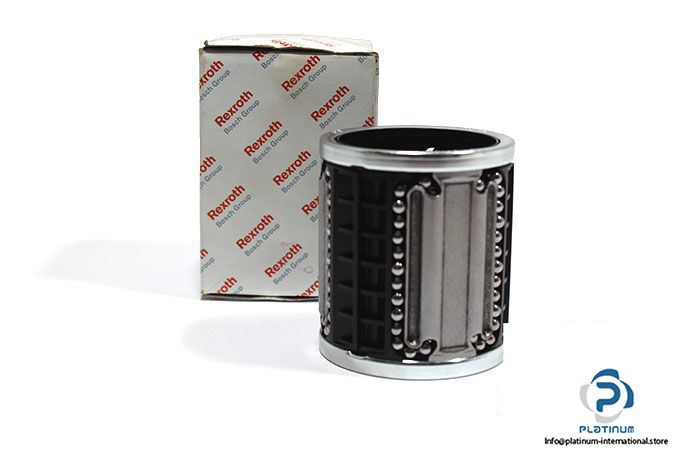

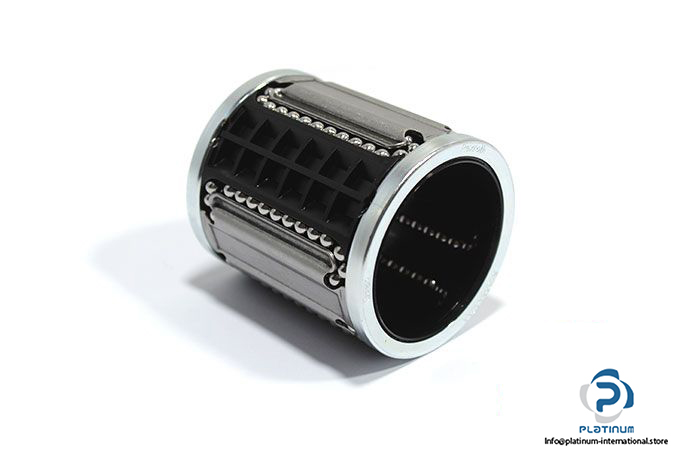

Type: Compact Linear Bushing KBC

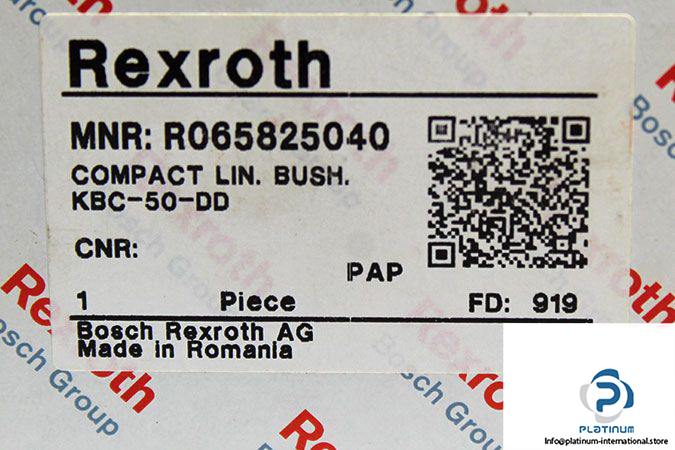

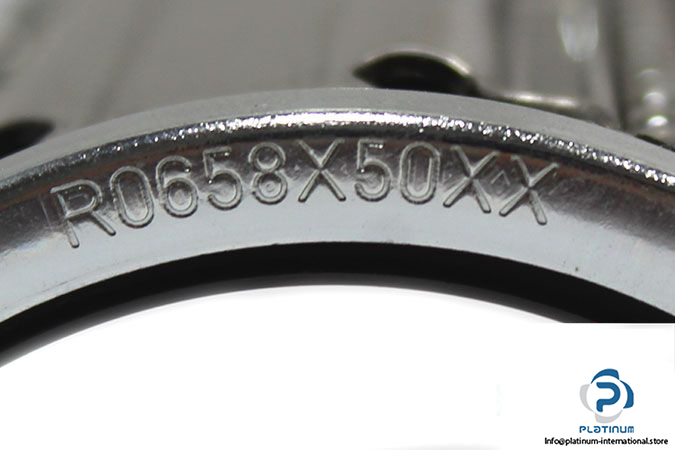

MNR: R0658 250 40

Shaft Diameter d₀: 50 mm

Design Type: Closed

Rows of balls: 6

Friction Force F_R: 4 N

Breakaway Force: 10 N

Maximum Acceleration Travel a_max: 150 m/s²

Max. Permissible Speed v_max: 5 m/s

Dynamic Load Rating:

C_min: 5680 N

C_max: 7180 N

Static Load Rating:

C_0min: 3610 N

C_0max: 5350 N

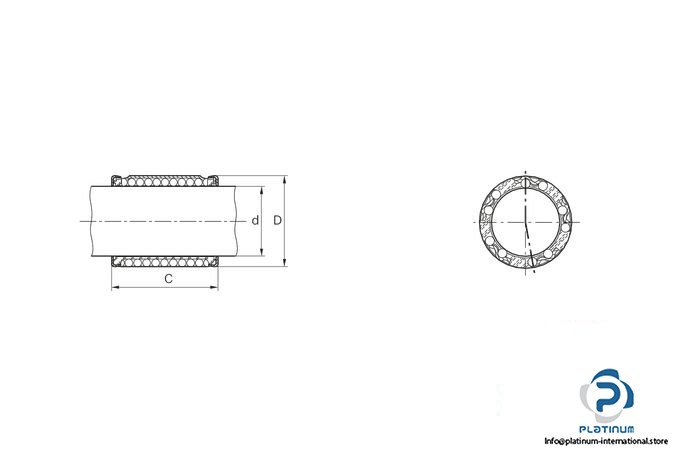

Dimensions:

D: 62 mm

C: 70 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.17 kg
