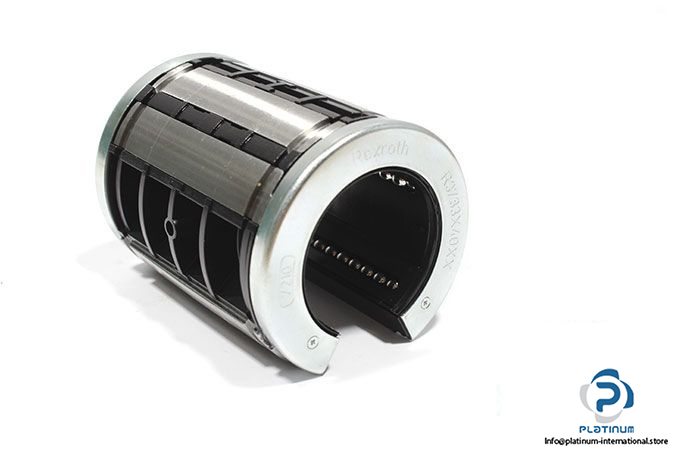

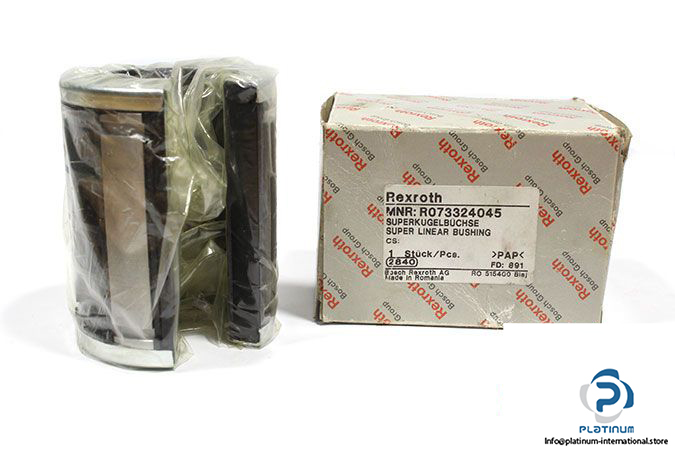

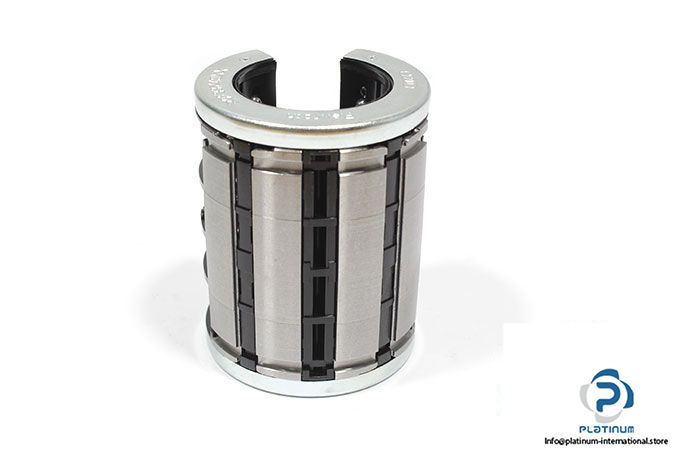

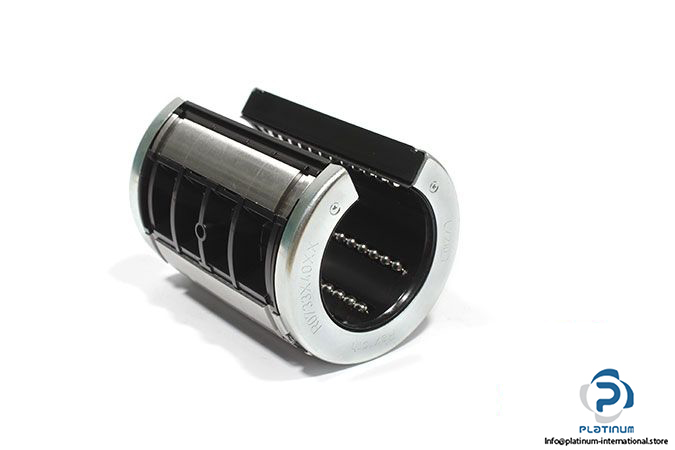

BOSCH REXROTH R073324045 Super Linear Bushing KBH
The Bosch Rexroth R073324045 Super Linear Bushing KBH is an open-form linear bearing designed for precise guidance and high-performance linear motion. With six rows of balls, low friction, and high load capacity, it ensures reliable performance in demanding industrial applications.
Manufacturer: Bosch Rexroth
Type: Super Linear Bushing KBH
MNR: R073324045
Technical information
- Shaft Diameter (d0): 40 mm
- Dimensions: D: 62 mm, C: 80 mm
- Form: Open
- Rows of Balls: 6
- Friction Force FR: 7.5 N
- Breakaway Force: 18 N
- Maximum Acceleration (amax): 150 m/s²
- Max. Permissible Speed (vmax): 5 m/s
- Dynamic Load Capacity (C): 9680 N
- Static Load Capacity (C0): 7600 N
- Permissible Ambient Temperature: -20 / +80 °C
