Manufacturer: BOSCH REXROTH

Type: LINEAR-SET LSAC-25-DD-G

MNR: R 102722544



Shaft diameter d: 25 mm

Design type: Closed type

Housing Format: Aluminum

Dynamic Load Capacity C: 2330 N

Static Load Capacity C₀: 1310 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 5 m/s

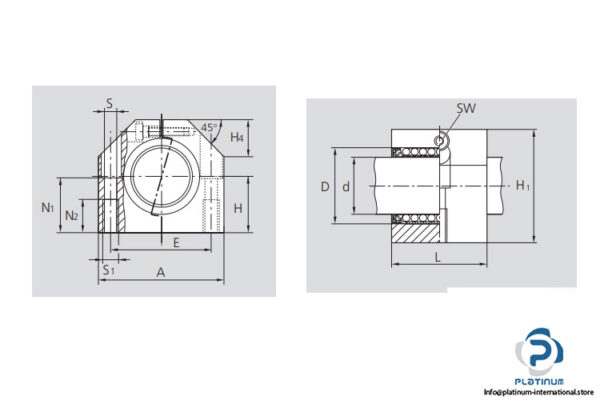

Dimensions:

A: 62 mm

L: 40 mm

H₁: 54 mm

E: 48 mm

Seals: With Two internal seals

Permissible Ambient Temperature: -10 … +80 °C
