Rexroth Linear Set LSATOE-A-16-DD

The Rexroth Linear Set LSATOE-A-16-DD offers robust performance with self-alignment features, adjustable linear bushings, and high load capacities for industrial applications. This set is designed for maximum efficiency and precision in linear motion systems.

Manufacturer: Rexroth

Type: Linear Set (LSATOE-A-16-DD)

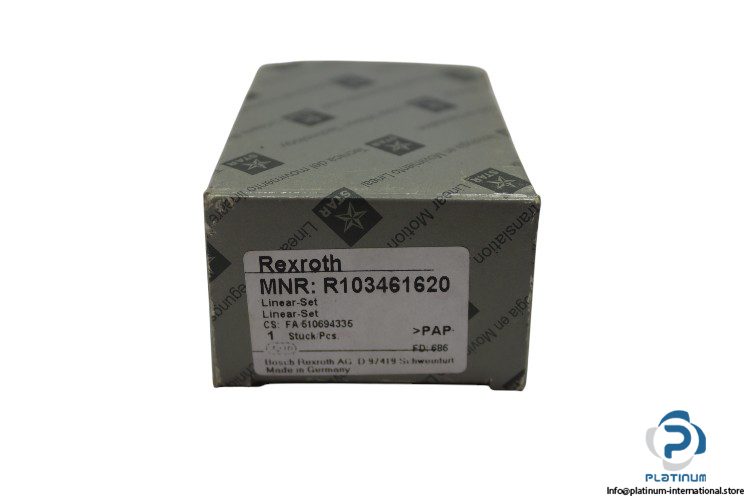

Model Number (MNR): R103461620

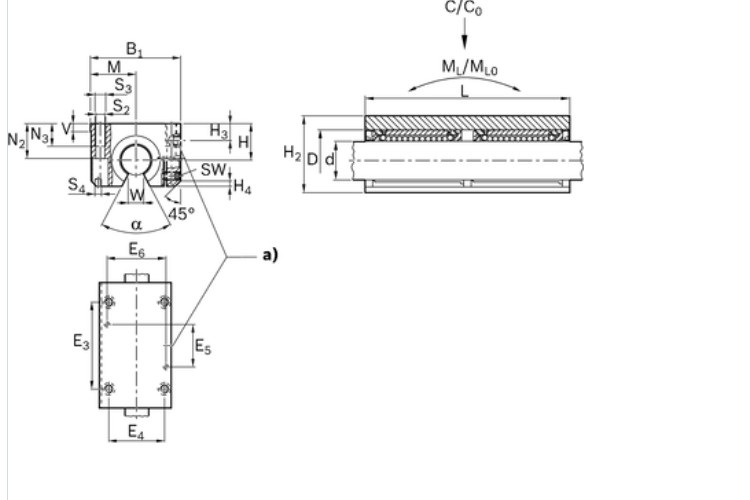

Technical Information:

• Shaft Diameter (d0): 16 mm
• Dimension D: 26 mm
• Dimension L: 84 mm
• Series: Super A (with self-alignment feature)
• Format of Linear Bushings: TOE – Tandem, open, adjustable
• Maximum Permissible Linear Speed (vmax): 3 m/s
• Max. Acceleration (amax): 150 m/s²
• Breakaway Force: 2 N
• Dynamic Load Rating (C): 2430 N
• Static Load Rating (C0): 1660 N
• Dynamic Longitudinal Moment Load Capacity (ML): 18 Nm
• Static Longitudinal Moment Load Capacity (ML0): 13 Nm
• Seals: Two wiper seals
• Permissible Ambient Temperature: -10 to +80 °C
