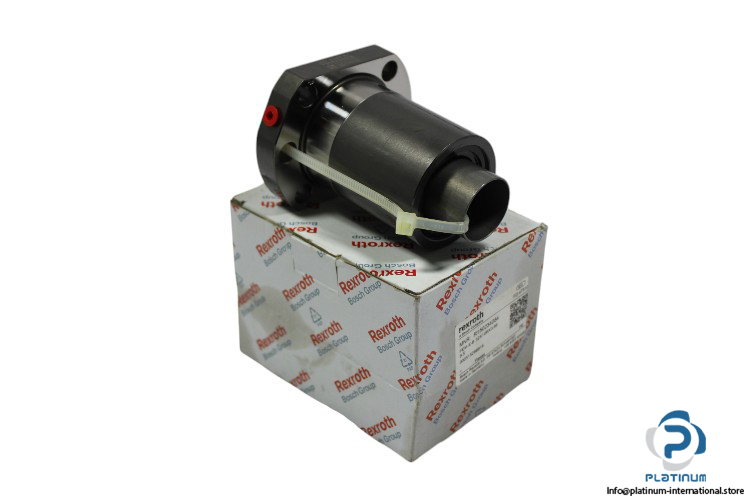

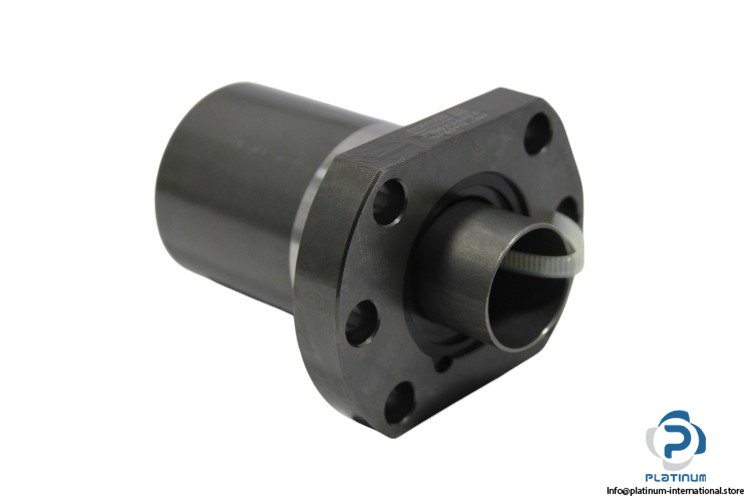

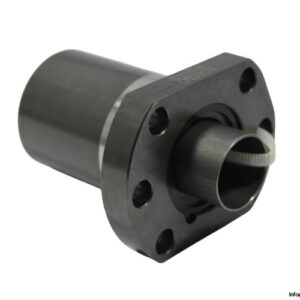

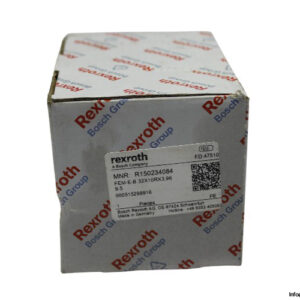

Rexroth R150234084 FLANGED SINGLE NUT FEM-E-B
The Rexroth R150234084 FLANGED SINGLE NUT FEM-E-B is a high-precision ball screw nut designed for demanding linear motion applications. Featuring a robust flange design, high load capacity, and smooth right-hand lead operation, this component ensures durability and efficiency in industrial automation systems.
- Manufacturer: Rexroth
- Type: FLANGED SINGLE NUT FEM-E-B
- MNR: R150234084
Technical Information
- Size: 32 X 10 R X 3.969 – 5
- Nominal Diameter (dâ‚€): 32 mm
- Ball Diameter (DW): 3.969 mm
- Number of Ball Track Turns (i): 5
- Lead (P): 10R
- Direction of Lead: Right

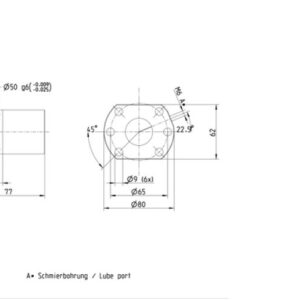

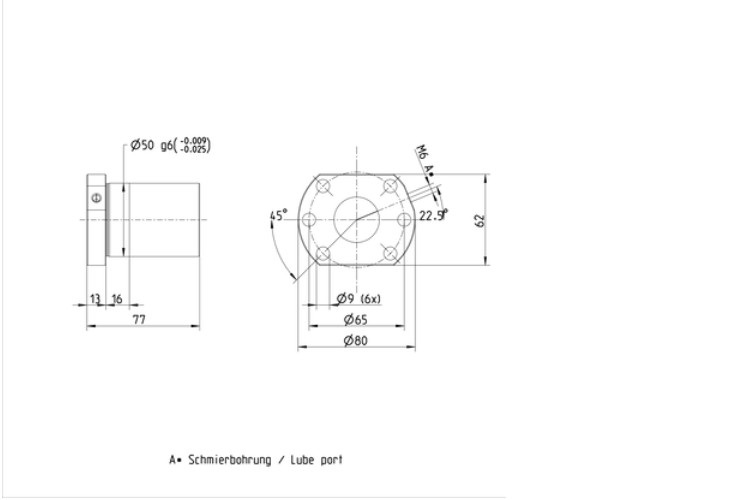

Dimensions
- Flange Diameter: 80 mm
- Nut Outer Diameter: 50 mm
- Nut Length: 77 mm
- Flange Thickness: 13 mm
- Cutting Flange Width: 62 mm
Load Ratings & Performance
- Dynamic Load Rating (C): 38,000 N
- Static Load Rating (Câ‚€): 58,300 N
- Maximum Permissible Linear Speed (vmax): 47 m/min
- Operating Temperature: -10 °C to +80 °C
