Rexroth Adjustable-Preload Single Nut SEM-E-S
The Rexroth Adjustable-Preload Single Nut SEM-E-S (Model: R151344014) is designed for applications requiring high load capacity and precision. Featuring a nominal diameter of 40 mm and a ball diameter of 6 mm, this nut is ideal for systems that demand reliable and efficient linear motion.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Adjustable-Preload Single Nut SEM-E-S
- Model Number (MNR): R151344014
- Size: 40 x 10 R
- Nominal Diameter: 40 mm
- Ball Diameter: 6 mm
- Number of Ball Track Turns: 4
- Lead (P): 10 mm
- Direction of Lead: Right-Hand Thread
- Dynamic Load Rating (C): 60,000 N
- Static Load Rating (C0): 86,400 N
- Linear Speed (Vmax): 38 m/min

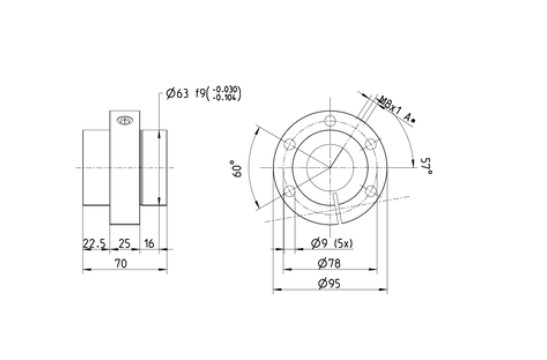

- Dimensions:
- Nut Diameter: 63 mm
- Flange Diameter: 95 mm
- Flange Width: 25 mm
- Nut Length: 70 mm
Designed for durability and precision, the Rexroth Adjustable-Preload Single Nut SEM-E-S is suitable for applications requiring high dynamic and static load ratings.
