Manufacturer: REXROTH

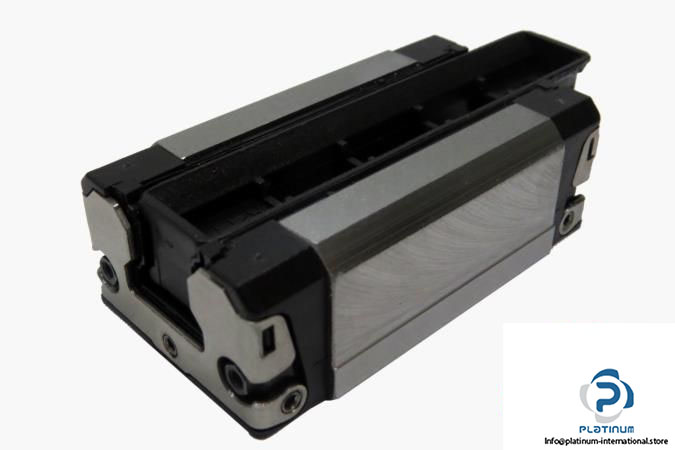

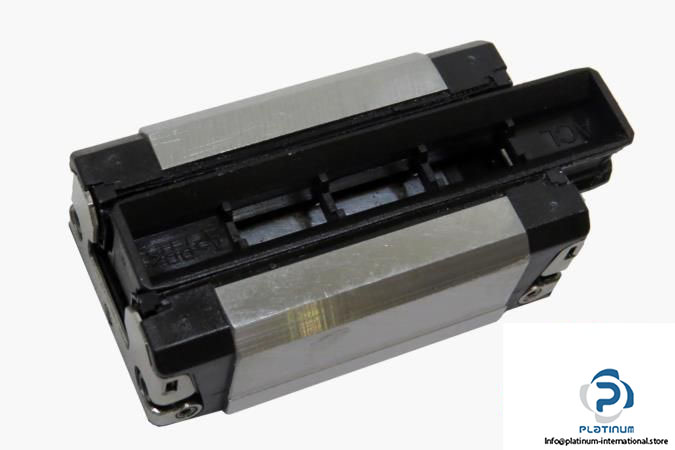

Type: Ball Runner Block SNS

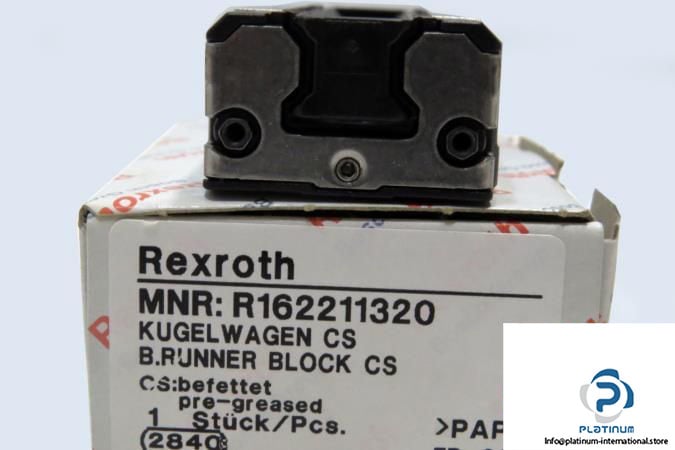

MNR: R1622 113 20

Size: 15 mm
Format: SNS – slimline, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 9860 N
Static Load Capacity C₀ : 12700 N
Dynamic Torsional Moment Load Capacity M_t:  95 Nm
Static torsional moment load capacity Mt0: 120 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 68 Nm
Static longitudinal moment load capacity ML0: 87 Nm
Accuracy Class: H – Highly accurate
Preload Class: C1 – Low preload
Dimensions
Width (A): 34 mm
Length (B): 58.2 mm
Height of system(H): 24 mm
Height of block (H₁): 19.90 mm
E1: 26 mm
E2: 26 mm
Admissible Operating Temperature: -10 °C … +80 °C
